Summary of Contents for Axiom AX8000 NEO

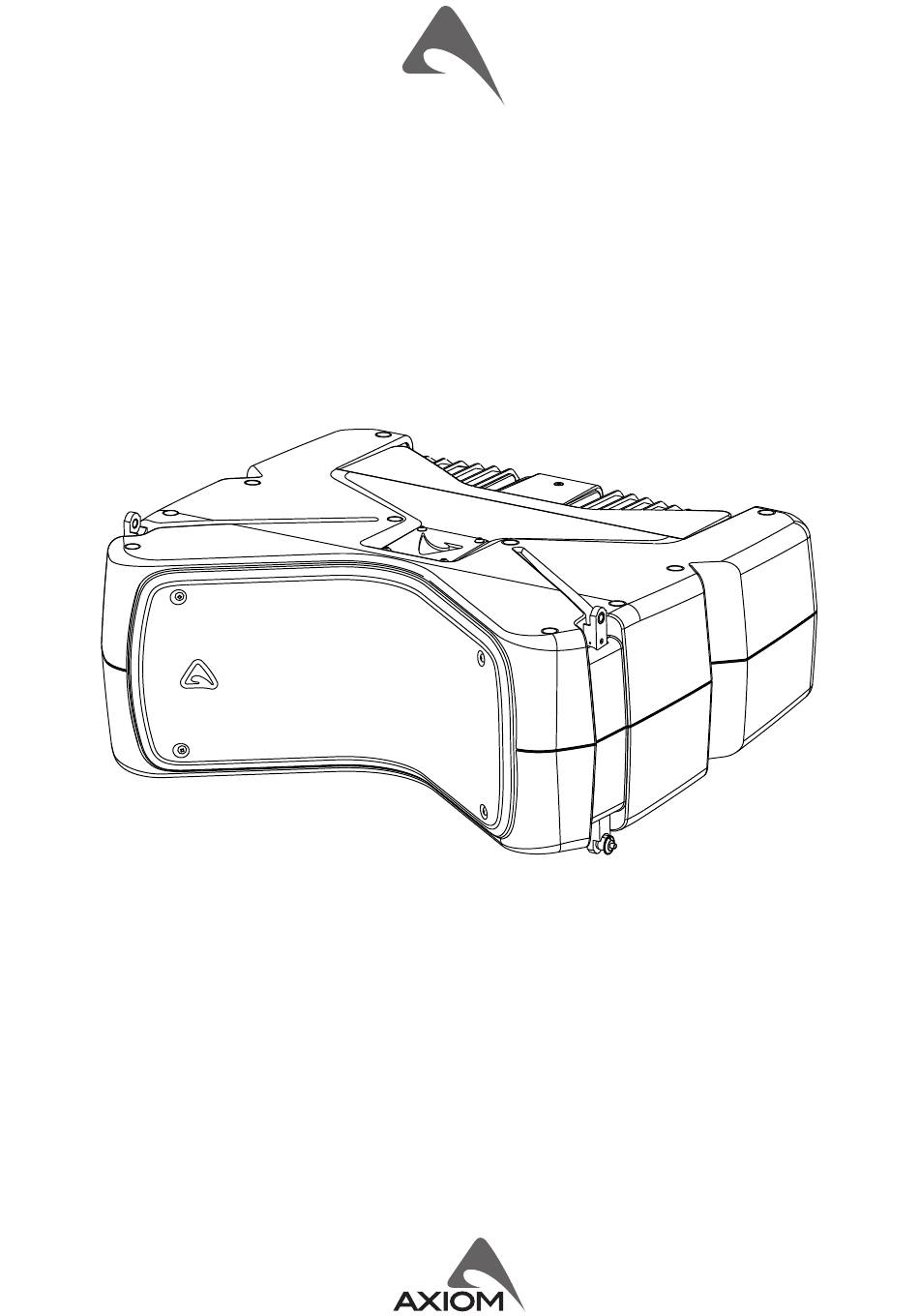

- Page 1 AX800A NEO Active Vertical Array Loudspeaker USER MANUAL revision 2021-03-31...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
INDEX GND LIFT ....... . . 7 PRESET BUTTON ......7 INTRODUCTION . -
Page 5: Mechanical Drawing
MECHANICAL DRAWING 51.6 cm 60 cm 20.3" 23.6" OPTIONAL ACCESSORIES AXCASE08 Carrying Case for 4 box unit NAC3FCA Neutrik Powercon® BLUE PLUG NAC3FCB Neutrik Powercon® WHITE PLUG NE8MCB Neutrik Ethercon PLUG NC3MXXBAG Neutrik XLR-M NC3FXXBAG Neutrik XLR-F SW1800A 2X18” Active Subwoofer USB2CAND Dual output PRONET network converter CAT5SLU01/05/10... -
Page 6: I/O And Control Operations
I/O AND CONTROL OPERATIONS MAINS IN Powercon® NAC3FCA power input connector (blue). To switch the amplifier on, insert the Powercon® connector and turn it clockwise into the ON position. To switch the amplifier off, pull back the switch on the connector and turn it counter-clockwise into the POWER OFF position. -
Page 7: Sign/Limit
SIGN/LIMIT This LED lights in green to indicate the presence of the signal and lights in red when an internal limiter reduces the input level. GND LIFT This switch lift the ground of the balanced audio inputs from the earth-ground of the amplifier module. PRESET BUTTON This button has two function: 1) Pressing it while powering on the unit:... -
Page 8: Preset Using Example: Installation In A Theatre With Balcony
PRONET AX - OPERATION The AXIOM active loudspeaker devices can be connected in a network and controlled by the PRONET AX software. PRONET AX software has been developed in collaboration with sound engineers and sound designers, in order to offer an “easy-to- use”... - Page 9 EXAMPLE OF PRONET AX NETWORK WITH AX800A NEO AND SW1800A USB 2.0 port network 1) pressed if the USB2CAND is the first device 2) not pressed if other AXIOM system is connected to the other connector notebook do not with PRONET AX software...
-
Page 10: Prediction Software: Ease Focus 3
AFMG Technologies GmbH. It is based on the EASE GLL loudspeaker data file required for its use. The GLL file contains the data that defines the Line Array with regard to its possible configurations as well as to its geometrical and acoustical properties. Download the EASE Focus 3 app from the AXIOM website at https://www.axiomproaudio.com/ clicking on downloads section of the product. - Page 11 Fly bar suspension and angle setup (centre of gravity) KPTAX800 FLY BAR FOR FLOWN ARRAY The figure at the side shows where the normal centre of gravity is with one box or several boxes arranged in a line. Usually the boxes are arranged to make an arc for the best coverage of the audience, so the center of gravity moves backward.
-
Page 12: Fly Bars And Accessories
FLY BARS AND ACCESSORIES KPTAX800 FLY BAR AND ACCESSORIES The AX800A systems are built to allow the suspension of array with variable shape and STRAIGHT SHACKLE 16mm dimensions. Thanks to a suspension mechanism IDENTIFICATION AND designed to be functional, flexible and safe, each DATA LABEL system must be suspended or stacked using the KPTAX800 or KPTAX800L fly bar. - Page 13 KPTAX800L fly bar maximum capacity KPTAX800L FLY BAR AND ACCESSORIES is 680 Kg (1500 lbs) with the 0° angle. It can support, with a safety factor of STRAIGHT SHACKLE 16mm 10:1, up to: M10 FOOT FOR IDENTIFICATION AND • 12 AX800A DATA LABEL STACKED INSTALLATION •...
-
Page 14: Stacked System With Kptax800L
STACKED SYSTEM WITH KPTAX800L WARNING! • The ground where the KPTAX800L Fly bar serving as ground support is placed needs to be absolutely stable and compact. • Adjust the feet so to lie the bar perfectly horizontal. • Always secure ground stacked setups against movement and possible tipping over. •... -
Page 15: Stacked System With Kpax8 Pole Adapter
STACKED SYSTEM WITH KPAX8 POLE ADAPTER WARNING! • A maximum of 2 x AX800A can be installed on a pole using the KPAX8 pole adapter. • The KPAX8 can be installed on a SW1800A sub-woofer (preferably in horizontal position) using the DHSS10M20 adjustable sub-Speaker ø... - Page 16 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
