Summary of Contents for PABX 208AC

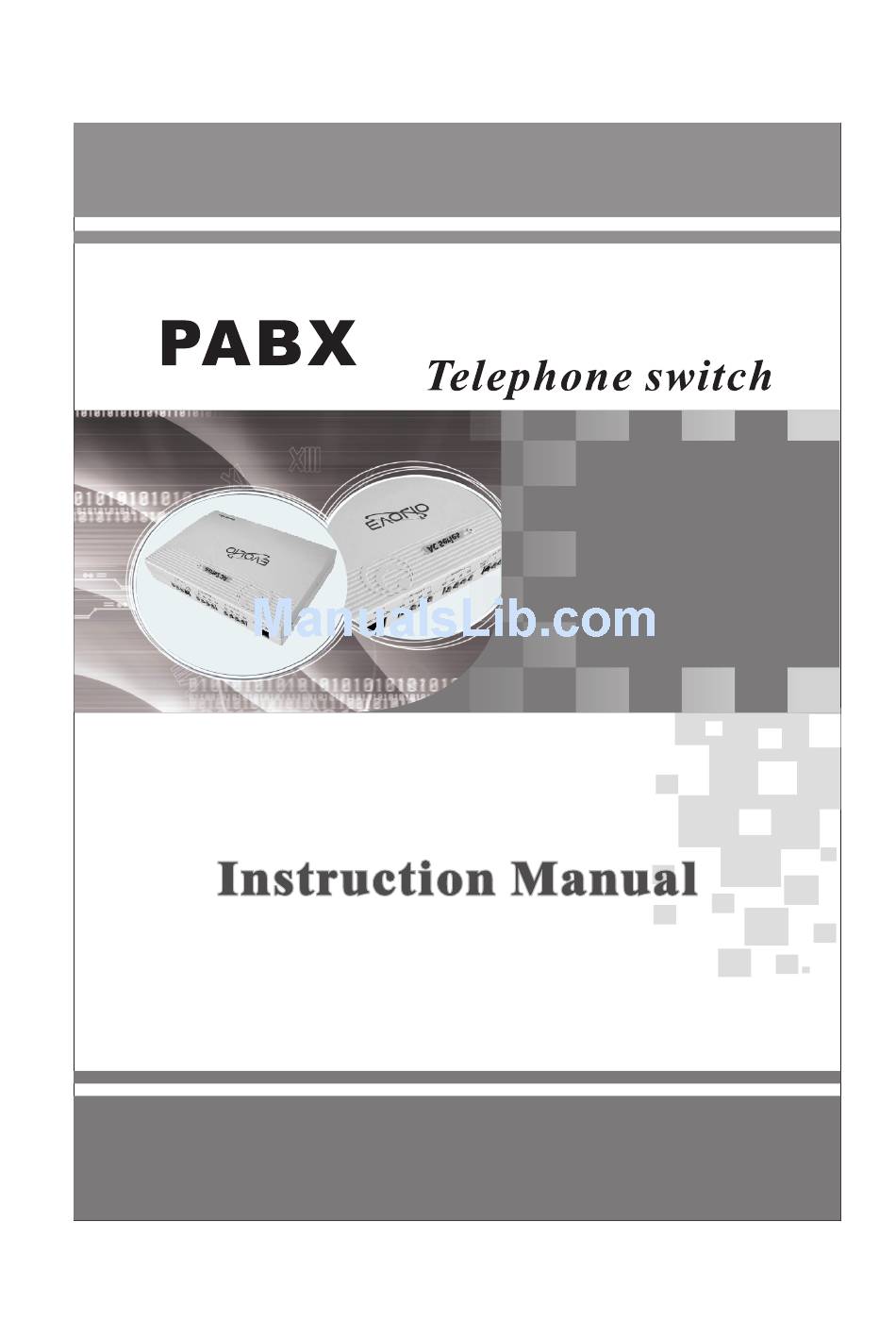

- Page 1 Evolio AC Series Model: 208AC 308AC 416AC 432AC...
- Page 2 Precautions 1. Keep the unit away from heating appliances and electrical noise generating devices such as motors and televisions. These noise sources can interfere with the performance of machine. 2. Keep away from AC power source when install the telephone cables. 3.
-
Page 3: Table Of Contents
Table of Contents Chapter 1: Before Program Brief Introduction ------------------------------------------------------------------------- Installation and Connection -------------------------------------------------------------- Technical Index --------------------------------------------------------------------------- Chapter 2: System Operating Intercom Calling -------------------------------------------------------------------------- Outside ( CO ) Line Access Mode Selection ------------------------------------------ Receiving Call ---------------------------------------------------------------------------- Call pickup ------------------------------------------------------------------------------- Call Transferred ------------------------------------------------------------------------- Operator Call --------------------------------------------------------------------------- Automatic Callback Busy --------------------------------------------------------------- Busy Transferred ------------------------------------------------------------------------... - Page 4 Table of Contents Outgoing Message ( OGM )----------------------------------------------------------- Assign Outward Code (Least Cost Route) ------------------------------------------- Assign Outside Line Ring by Turns ------------------------------------------------- Enable or Disable Outside Call Reaches to Extension ----------------------------- by One-Touch Dialing ( at DISA mode) Extension is Allowed Access Only Designated CO Line -------------------------- Exclusive CO Line of Designated Superior Extension ----------------------------- Assign Designated Extension is Belong to a Group -------------------------------- Head-Digits of Restricted Dial CO Line Number ----------------------------------...
-
Page 5: Brief Introduction
Chapter One Chapter One Brief Introduction Brief Introduction Thank you for choosing our products TC-2000AC series PABX, this system is include following models: Model Structure CO line Extension 208AC Not expandable 308AC Not expandable Not expandable 416AC Not expandable 432AC... -
Page 6: Installation And Connection
Chapter One Installation and Connection 1.1 Names Model 208AC, 308AC back view Model 416AC back view Front view Part Names: Power switch Left view CO line jack Extension jack Power socket Rj11 for connect with PC COM port External music inputted port... -
Page 7: Technical Index
Chapter One Technical Index 1.2 Technical Index Names Specifications Capacity Extension: 8,16,32; CO lines: 2,3,4 * Standard jack: CO/ Extension jack, Rj11 for connect with PC Exterior Jack COM port, external music jack. Communicate * 7 channels Channel Transmission * Extension to extension 1.5dB Attributes: * Extension to trunk line... -
Page 8: Intercom Calling
Chapter Two Operating 2.1 Intercom Calling Description: Allows an extension user to make a call to another extension. Format 1: ABCD ( When extension is at non-direct access CO line mode) Format 2: * ABCD ( When extension is at direct access CO line mode) ABCD = Extension number Example 1: Non-direct outgoing mode extension 8008 calls extension 8065. - Page 9 1. When user need to use * or # key to program some functions that supplied by telecom provider, in order to avoid conflict with some functions of PABX that need to use same key at beginning , please access CO line by this program (select CO line ) first, then program functions supplied by telecom provider.
-
Page 10: Receiving Call
Chapter Two Operating 2.3 Assign Speed Dialing Number for Outside ( CO) Line Number Format : # ** MN abcdefgh # MN = Speed dialing number = 01 ~80 abcdefgh = Outside (CO) line number ( maximum of 24 digits) Description: Allows authorized extension add or change speed dialing number, the assigned speed dialing numbers can be shared with all extension users. -
Page 11: Call Transferred
Chapter Two Operating 2.6.2 Directed Call Pickup Format : # 9 Description: Allows an extension user to answer a call ringing at any other extension. If the call is ringing within his extension group, he can pickup call by #7. If the call is ringing in different extension group, he must to pickup by #9. - Page 12 Chapter Two Operating 2.8 Conference ( 3-party, 1 CO and 2 Extensions) Format : Tap hook-switch + * + ABCD ABCD = Extension number Description: During a 2-party conversation, an extension user can add a third party to make a 3-party conference. Example: Extension 8002 is answering an outside call, 8002 wants to add 8015 to build a 3-party conference.
-
Page 13: Operator Call
Chapter Two Operating 2.10 Conference ( Intercom 3-party ) Format : Tap hook-switch + * + ABCD ABCD = Extension number Description: During a 2-party internal conversation, an extension user can add third extension party to build a 3-party conference. Example: Extension 8002 is making internal talk with 8005, 8002 user wants to add 8015 to build internal 3-party conference. -
Page 14: Busy Transferred
Chapter Two Operating 2.13 Busy Transferred Format: # * 1 ABCD ABCD = Destination extension number Description: Allows an extension user assign automatic transfer outside calls to another designated extension when the called extension is busy. Example: Manager ( whose extension is 8016) can assign all outside calls to his extension will be transferred to his secretary ( whose extension is 8015) automatically when his extension is busy, Operating: 1) Lifts 8016, hear internal dial tone;... -
Page 15: Call Transferred To Secretary
Chapter Two Operating 2.17 Call Transferred to Secretary Format: # * 6 ABCD ABCD = Secretary extension number Description: All calls (except secretary) to superior will be transferred to secretary first, the call will be transferred to superior only after filtrated by secretary. Example: Superior (whose extension is 8008) can assign all calls will be transferred to his secretary (whose extension is 8012 ) first automatically. -
Page 16: Station Lock ( Personal Password)
Chapter Two Operating 2.21 Station Lock ( personal password) Format: # * 3 ABCD ABCD = Personal password Description: Allows extension user to lock his station so that other users cannot make outside calls until it is unlocked. Any 4-digits code can be used to lock and unlock an extension. -
Page 17: Executive Busy Override
Chapter Two Operating 2.25 Executive Busy Override Format : # *0 MN MN = CO line port number = 01 ~16 Description: Enable or disables using this feature at each extension, if enabled, authorized user can monitor or interrupt an established call ( refer 3.54). Example: Extension 8003 is enabled to use executive busy override function, he wants to interrupt CO line 4. -
Page 18: Call On Holding
2.28 Remote Program Format : Tap hookswitch + # * # * Description: Allows an extension user to program a PABX system that is using in different place, it can supply a convenient and high-efficiency service for PABX end user. -
Page 19: Chapter 3: System Program
Chapter Three System Program 3.1 Before System Programming This system has factory default settings ( refer 3.4). If any of programming needs to be changed, you can change the setting by system programming. Default setting shows you the factory default setting. 1. -
Page 20: System Data Default Set
Chapter Three System Program 3.4 System Data Default Set Format : * 6 000 # Description: This system can initialize system-programmed data. All data can be restored to default setting except data of the follow 3 parameters. 1. Outside line connection assignment ( CO parameters); 2. -
Page 21: Outside Call Answered Mode Management
Description: When CO line card is not installed or no CO line is connected, allows make PABX becomes a intercom system by close all CO lines Example: Assign PABX is a intercom system when no CO line is connected. Operating: 1) Lifts extension 8001 and unlock, input * 3 #;... -
Page 22: Time ( Day / Night ) Service Changing Mode
Chapter Three System Program 3.7.4 Auto-Attendant Answer Call that Received via Designated CO Line Format : * 20 MN # Example: Assign CO line 2 is at auto-attendant mode and others at operator answer mode. Operating: 1) Lifts extension 8001 and unlock; 2) Input * 21 # ==>... -
Page 23: Day Service Changing Mode
Chapter Three System Program 3.10 Day Service Changing Mode Format : * 89 1 A M # ( Day 1 ) * 89 2 A M # ( Day 2 ) A = Day = Monday to Sunday = 1 to 7 M = 1 = Auto-attendant service M = 0 = Operator service Example: Assign system is at auto-attendant service mode on Sat. -
Page 24: Outside ( Co ) Line Ringing Selection
Chapter Three System Program 3.14 Outside ( CO ) Line Ringing Selection ( at Operator mode) Description: When an outside call is received at certain CO line, the user can select which extension will ring. Format : * 12 MN ABCD # M N = CO line port number = 01 ~ 16 ABCD =Ringing extension number Example: At operator service mode, assign extension 8003 and 8013 will ring when has... -
Page 25: Outgoing Message ( Ogm )
Chapter Three System Program 3.17 Outgoing Message ( OGM ) Format : * 22 N # N = 1 = OGM 1 = 30seconds N = 2 = OGM 2 = 15 seconds N = 3 = OGM 3 = 15 seconds Description: Allows to record up to 3 outgoing voice message ( total 60 seconds), this message is played when a caller accesses the DISA feature. -
Page 26: Assign Outward Code (Least Cost Route)
Chapter Three System Program 3.19 Verify External Inputted Holding Music Format : * 24 # Description: Allows user to input fond music to system as holding music, he can verify the holding music performance by this program. 1.Verifying just for reference, the real timber should be verified in practise; 3.20 Assign Outward Code (Least Cost Route ) Format : * 97 1 A MN # ( Assign second outward code ) * 97 2 A MN # ( Assign third outward code ) -
Page 27: Assign Outside Line Ring By Turns
Chapter Three System Program 3.21 Cancel Outward Code Format : * 97 1 # ( Cancel second outward code ) * 97 2 # ( Cancel third outward code ) 3.22 Clear Outside Line Ring by Turns Format : * 11 MN # Allows assign maximum of 8 extensions ( same or different ) are ring by turns for each CO line when has call is received, when you are ready to do setting ( 3.23), please use this program to clear previous setting first... -
Page 28: Extension Is Allowed Access Only Designated Co Line
Chapter Three System Program 3.25 Clear Extension Numbers Assigned for a Numeric Button Format : * 140 N # N = Numeric button = 1 ~ 9 Description: Allows clear extension numbers that assigned for a numeric button ( 1 ~ 9), suggest to use this program to clear previous setting before program 3.26. -
Page 29: Exclusive Co Line Of Designated Superior Extension
Chapter Three System Program 3.28 Cancel Extension is Allowed Access Only Designated CO Line Format : * 43 ABCD # ABCD = Extension number Description: Cancel assigned extension is allowed to access only designated CO line. 3.29 Exclusive CO Line of Designated Superior Extension Format : * 42 MN ABCD # MN = CO line port number = 01 ~ 16 ABCD = Extension number... - Page 30 Chapter Three System Program 1. Allows assign same extension to different group, G1 and G2, the format is: * 47 ABCD G1 G2 #; 2. Allows program by batch way when extensions have same format, please refer above operating, when first time input format *47, allows continue behind programming.
-
Page 31: Chapter Three
Chapter Three System Program 3.37 Extension and CO Line Grouping Application Description: Use these functions [3.27 ],[3.29],[3.33] and [3.35], extensions and CO lines can be grouped flexible. Example 1: Extension A, B, C, D and CO line 1, 2, 3 are belong to group 2; extension E, F, G, H, J, K and CO line 4, 5, 6, 7, 8 are belong to group 3. -
Page 32: Head-Digits Of Restricted Dial Co Line Number
Chapter Three System Program 3.38 Head-Digits of Restricted Dial CO Line Number Format : * 57 M ABCD # M = Group = 1~ 6 ABCD = Head-digits of restricted dial CO line number Description: Allows assign head-digits (maximum of 4 digits) of any restricted CO line number, the CO line numbers that with these assigned head-digits are restricted to dial. -
Page 33: Certain Extension Outgoing Call Class
Chapter Three System Program 3.40 Clear Head-Digits Group Format : * 57 M # M = Group = 1 ~ 9 3.41 Certain Extension Outgoing Call Class Format : * 51 ABCD M # ( First Class) * 52 ABCD M # ( Second Class) ABCD = Extension number M is Outgoing Call Class: M = 0 = Only make intercom call... - Page 34 Chapter Three System Program 3.43 All Extensions Outgoing Call Class Format : * 54 M # ( First Class) * 55 M # ( Second Class) M is Outgoing Call Class: M = 0 = Only make intercom call M = 1 ~ 6 = Restrict to dial CO calls with head-digits in group 1 to 6; M = 7 ~ 9 = Allows to only dial CO calls with head-digits in group 7 ~9;...
-
Page 35: Extension Number Management
Chapter Three System Program 3.47 Assign All Extension Numbers to Four Digits Format : * 7 2 00 # Description: When a system existing two digits, three digits and four digits extension number, this program will make two digits and three digits extension numbers are invalid but will remain four digits extension numbers. -
Page 36: Assign Outside ( Co ) Line Access Mode
Chapter Three System Program 3.50 Assign Outside ( CO ) Line Access Mode Format 1: * 82 ABCD N # ABCD = Extension number N is outside ( CO ) line access mode: N = 0 = Access CO line by dial 0 ( here N can be 9 also ) N = 1 = Access CO line directly Format 2 : * 8 00 # ( Assign all extensions access CO line by dial 0 ) Format 3 : * 8 10 # ( Assign all extensions access CO line directly ) -
Page 37: Outside ( Co ) Line Duration Time Limit
Chapter Three System Program Example 2: Original setting is press 0 to access CO line and 9 for opeator, here user wants to change setting to press 0 for CO line but disable 9 for opeator. Operating 2: 1) Unlock extension 8001 by format * 01 1234 # (1234 is system password) 2) Input * 04 08 0 0 # 3.51 Outside ( CO ) Line Duration Time Limit Format 1: * 91 ABCD MN # ( Assignment for certain extension) -
Page 38: Enable / Disable Extension User Use Speed Dialing Function
Chapter Three System Program 3.53 Enable / Disable Extension User Use Speed Dialing Function Format 1: * 4 0 ABCD N # ABCD = Extension number N = 0 = Disable use speed dialing N = 1 = Enable use speed dialing Description: Assigns if extension has authority to use speed dialing function. -
Page 39: Ip Code Of Co Line
Chapter Three System Program 3.55 IP Code of CO Line Format 1: * 34 MN ABCDEF # ( Assignment for certain CO line ) Format 2: * 35 ABCDEF # ( Assignment for all CO lines ) MN = CO line port number = 01 ~ 16 ABCDEF is IP code ( Less 6 digits) Description: Assigns IP code for CO line to meet place where using various CO lines from different telecom providers. -
Page 40: Change System Time
Chapter Three System Program 3.59 Change System Time Format 1: * 95 1 YY MM DD W # ( Change Year,Date, Week ) Format 2: * 95 2 HH NN # ( Change Hour, Minute ) YY = Year MM = Month DD = Date W = Week = Monday ~ Sunday = 1 ~ 7 HH = Hour... -
Page 41: Flash Time
Chapter Three System Program 3.61 Flash Time Format 1: * 83 ABCD # ABCD = Flash time = 500ms to 2000ms Description: FLASH here means user taps hook-switch fleetly, it is function is as lifts handset rapidly after hangup. FLASH TIME is the time length between hangup and re-lifts handset, if user does not lifts handset when flash time is expires, system will regard it as hangup;... -
Page 42: Chapter 4: Appendix
Chapter Four Appendix Programming Table Programming Table ( 1) - Page 43 Chapter Four Appendix Programming Table Programming Table ( 2 )
-
Page 44: Operating Table
Chapter Four Appendix Operating Table Operating Table... -
Page 45: Pc Call Management Software
2. 4.3.3 Other Components Introduction 1. PABX Setting: Assign functions ( described in this manual ) of PABX, also allows programmed by extension 8001; 2. Charge Setting: Parameters that related with call fee, such as call rate, charge mode, etc;...
