Metra Electronics 99-6535B Installation Instructions

Fiat 500x 2016-up

INSTALLATION INSTRUCTIONS FOR PART 99-6535B

Fiat 500X 2016-up

KIT FEATURES

• ISO DIN radio provision with pocket

• Painted matte black

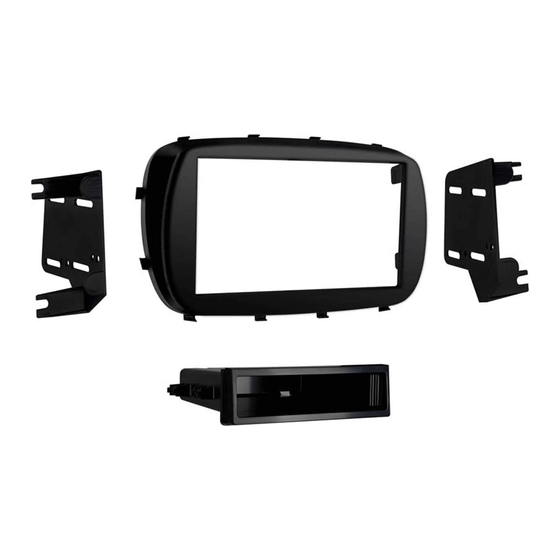

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • XSVI-6523-NAV

Antenna Adapter: • 40-EU55

METRA. The World's best kits.

99-6535B

metraonline.com

™

Dash Disassembly ................................................. 2

– ISO DIN radio provision with pocket ...................... 3

TOOLS REQUIRED

• Panel removal tool • Cutting tool

• T-25 Torx screwdriver

CAUTION!

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

Table of Contents

All accessories, switches, climate controls panels,

Table of Contents

Need help?

Do you have a question about the 99-6535B and is the answer not in the manual?

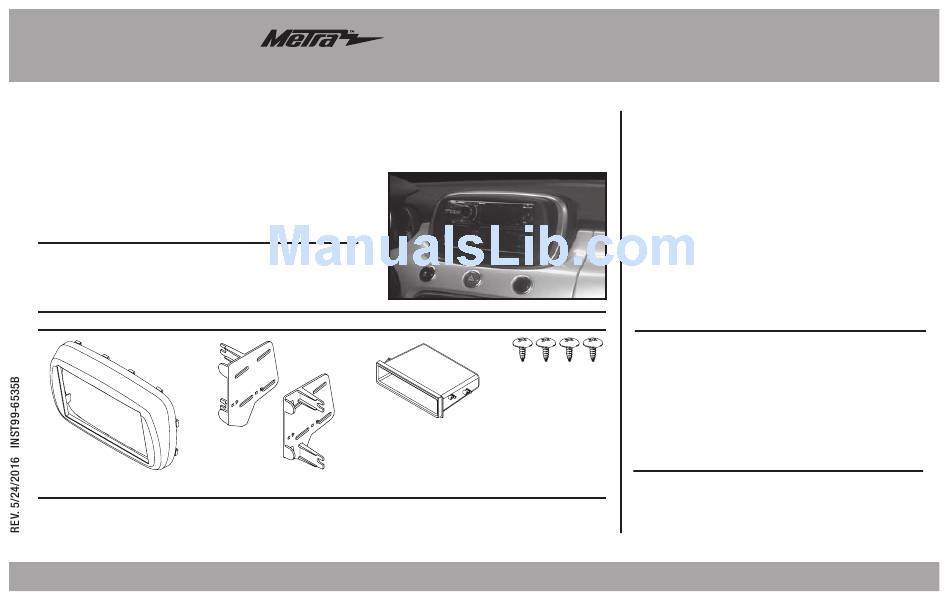

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-6535B Table of Contents Fiat 500X 2016-up 99-6535B Dash Disassembly ..........2 Kit Assembly – ISO DIN radio provision with pocket ...... 3 KIT FEATURES • ISO DIN radio provision with pocket • Painted matte black KIT COMPONENTS •...
Page 2 99-6535B Dash Disassembly 1. Open upper storage compartment First cut on passenger side. (Figure A) 2. Unclip, unplug, and remove painted Be careful not to cut into the vents! hazard button panel below the radio. (Figure A) 3. Unscrew (2) T-25 Torx screws at the bottom of the radio trim.
Page 3: Kit Assembly
99-6535B Kit Assembly ISO DIN radio provision 5. Locate the factory wiring harness and antenna connector in the 1. Attach the pocket to the radio dash, complete all necessary brackets using the (4) supplied connections to the radio and test #8 x 3/8”...
Page 4 INSTALLATION INSTRUCTIONS FOR PART 99-6535B IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
