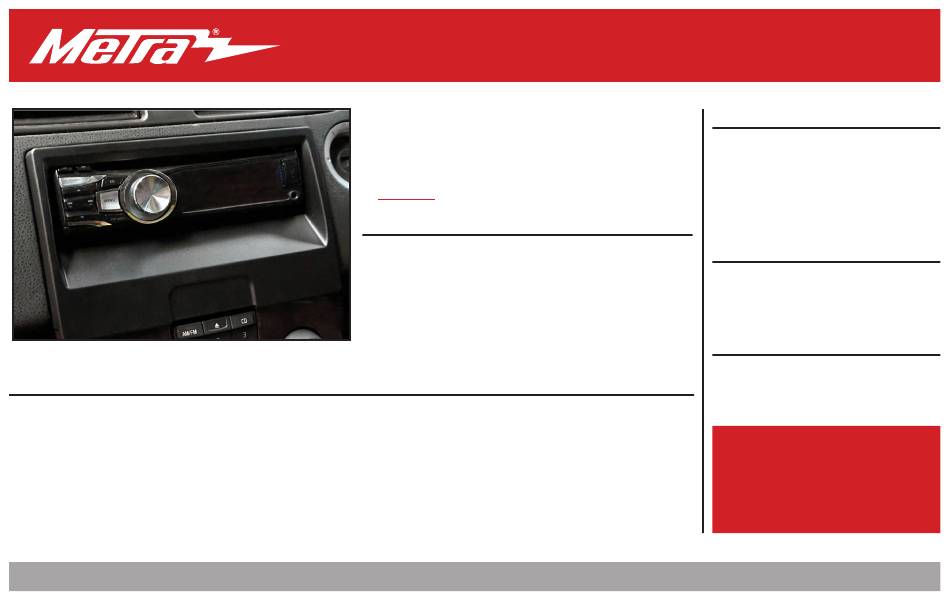

KIT COMPONENTS
• A) Radio trim panel
• B) Radio bracket
• C) Panel clips (2)
• D) Radio screws (M5x8) (4)
Metra. The World's Best Kits.
®
Volvo* C30
2008-2013,
S40*
* (Amplified Models Without Navigation Radios Only)
MetraOnline.com
Visit
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Allows for the installation of a single DIN aftermarket stereo
• Retains steering wheel control functionality
• Retains phone button functionality
• Retains amplified system
• Retains warning chimes/parking sensor audio (via integrated speaker)
• Provides outputs for speed pulse, park brake and reverse gear
• E) Steering wheel control interface and wiring harness
• F) Axxess interface and wiring harness
• G) External Speaker
• H) Antenna adapter
MetraOnline.com
C70
2006-2013,
2004-2011,
V50
2005-2011
© COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
99-9235B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly ..........................................................4
Axxess Interface Installation .................................5
Final Assembly ..................................................... 10
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
TOOLS REQUIRED
• Torx Screwdriver (T20 screws)
• Bojo panel remover
• Dremel with cut-off wheel
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
REV. 10/8/21 INST99-9235B
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-9235B
Summary of Contents for Metra Electronics 99-9235B
- Page 1 • H) Antenna adapter installation connections are secure before cycling the ignition to test this product. NOTE: Refer to the instructions included with the aftermarket radio. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 10/8/21 INST99-9235B...
- Page 2 DASH DISASSEMBLY 1. Use a panel removal tool to carefully pry the radio panel from the center console in the locations marked by the red arrows. Once separated, pull it up and away from the dash, being careful not to break the down facing tabs at the bottom of the bezel.
- Page 3 KIT PREPARATION 1. Cut the center panel in line with the highlighted tab just above the bottom of the opening on each side. The radio trim panel will cover the cut marks; however, please cut as straight and neat as possible. Continue to Kit Assembly REV.
- Page 4 KIT ASSEMBLY ISO-DIN Radio Provision Assembly Diagram 1. Attach the bracket to the aftermarket 1) Bracket radio using the (4) M5 x 8 screws provided with this kit. 2) Radio Trim Bezel 2. Fasten the (2) clip mounts to the bottom 3) Clip Mounts of the radio using the (2) T20 screws 4) Aftermarket Radio...
- Page 5 AXXESS INTERFACE INSTALLATION INTERFACE FEATURES TABLE OF CONTENTS • Retains Factory Steering Wheel Controls Connections ............6 • Retains Factory Phone Button Functionality† Installation .............7 • Retains Amplified System Programming ............8 • Retains Warning Chimes/Parking Sensor Audio L.E.D. Feedback ............9 • Provides Outputs for Park Brake, Reverse Gear and Speed Pulse •...
-
Page 6: Connections
CONNECTIONS From the 9235B harness to the aftermarket radio, connect as indicated: 3.5mm jack - Steering Wheel Control Retention: The 3.5mm jack is to be used to retain audio controls on the steering wheel control. • Black wire to the ground wire. For the radios listed below: Connect the female 3.5mm connector with stripped leads to the male •... -
Page 7: Installation
INSTALLATION With the key in the off position: 1. Connect the 9235B harness to the interface. 2. Connect the AXSWC harness to the AXSWC interface, and then to the 9235B interface. 3. Locate the factory antenna connector in the dash and complete all necessary connections to the radio. -
Page 8: Programming
PROGRAMMING 1. Press and hold the Volume Up button on the steering wheel. 2. Turn the ignition on. The L.E.D. in the Steering Wheel Control interface will start flashing rapidly, as the Steering Wheel Control interface searches for the auto manufacturer. 3. -
Page 9: Feedback
LED FEEDBACK L.E.D. Feedback: The (23) Red L.E.D. flashes L.E.D. Feedback Legend represent a different radio manufacturer for Flash Count Flash Count Radio Radio the AXSWC interface to detect. For example, Eclipse (type 1) † if you are installing a JVC radio, the AXSWC Kenwood ‡... - Page 10 2. Clip on the panel behind the gear shifter. 3. Snap the radio trim bezel into place lining the plastic clips with the clip mounts. The lip on the 99-9235B plastic should cover the cut made in the center panel. 4. This will complete the installation.
- Page 11 REV. 10/8/21 INST99-9235B...
- Page 12 Log onto www.installerinstitute.edu or call 386-672-5771 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 10/8/21 INST99-9235B...
