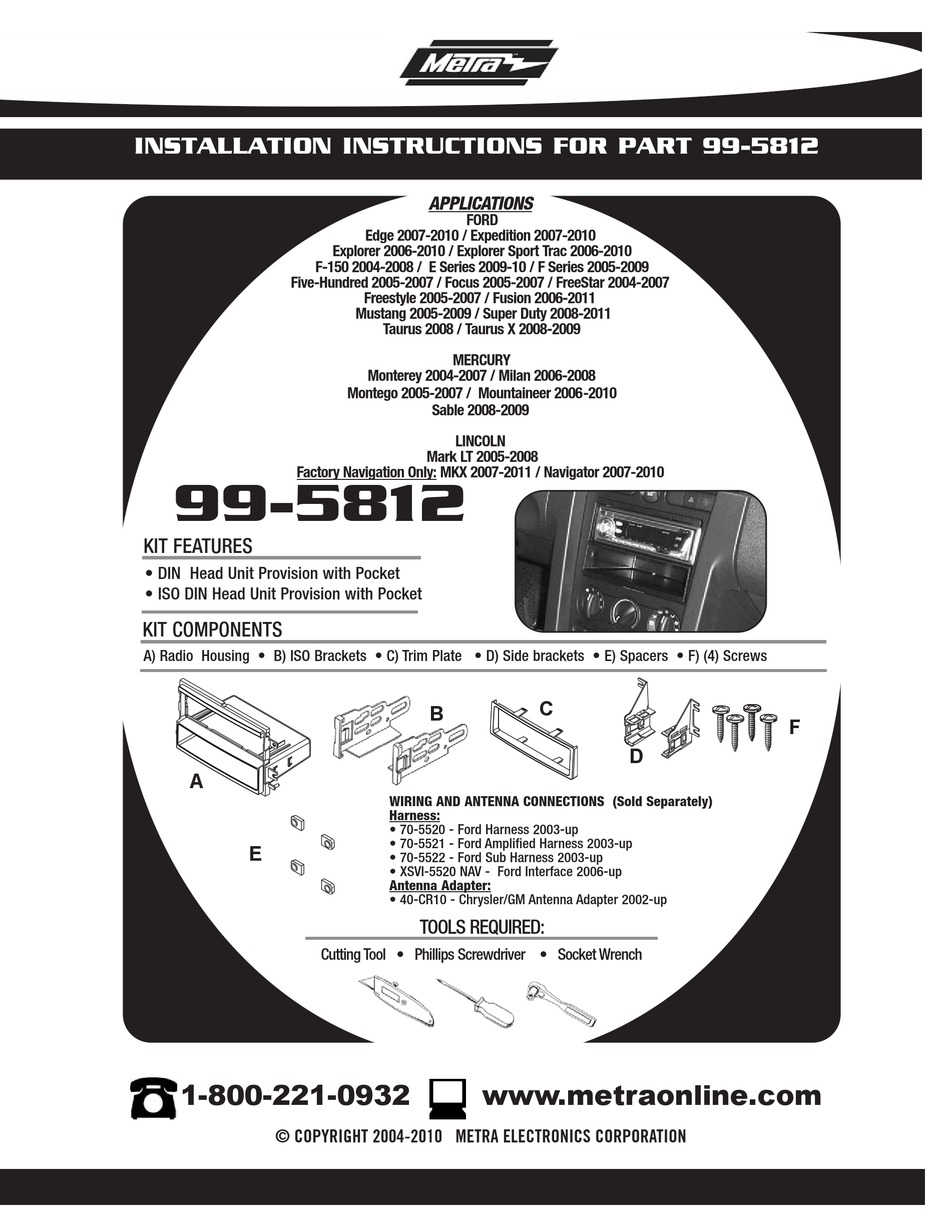

INSTALLATION INSTRUCTIONS FOR PART 99-5812
Five-Hundred 2005-2007 / Focus 2005-2007 / FreeStar 2004-2007
Factory Navigation Only: MKX 2007-2011 / Navigator 2007-2010
99-5812
KIT FEATURES
• DIN Head Unit Provision with Pocket
• ISO DIN Head Unit Provision with Pocket
KIT COMPONENTS

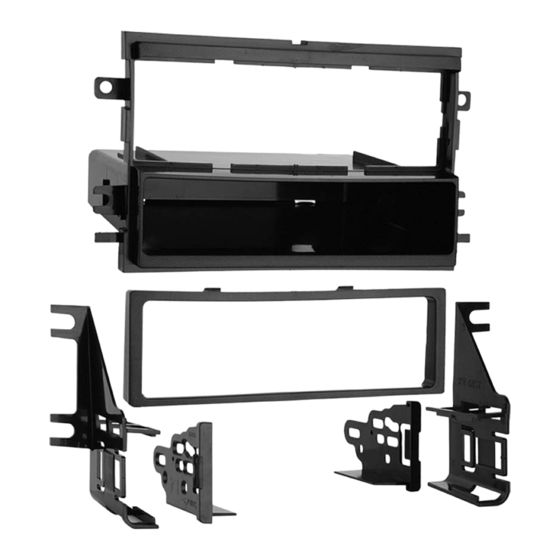

A) Radio Housing • B) ISO Brackets • C) Trim Plate • D) Side brackets • E) Spacers • F) (4) Screws
A
E
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
FORD
Edge 2007-2010 / Expedition 2007-2010
Explorer 2006-2010 / Explorer Sport Trac 2006-2010
F-150 2004-2008 / E Series 2009-10 / F Series 2005-2009
Freestyle 2005-2007 / Fusion 2006-2011
Mustang 2005-2009 / Super Duty 2008-2011
Taurus 2008 / Taurus X 2008-2009
MERCURY
Monterey 2004-2007 / Milan 2006-2008
Montego 2005-2007 / Mountaineer 2006-2010
Sable 2008-2009
LINCOLN
Mark LT 2005-2008
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-5520 - Ford Harness 2003-up
• 70-5521 - Ford Amplified Harness 2003-up
• 70-5522 - Ford Sub Harness 2003-up
• XSVI-5520 NAV - Ford Interface 2006-up
Antenna Adapter:
• 40-CR10 - Chrysler/GM Antenna Adapter 2002-up
TOOLS REQUIRED:
Cutting Tool • Phillips Screwdriver • Socket Wrench
p
www.metraonline.com
C
D
F
