For models ZIFS240 and ZIBS240 with Stainless Steel Doors and Handles

THE INSTALLATION SPACE

NOTE:
Handle and
handle standoff
depth is 2-1/8".
(Actual handle
may vary slightly.)

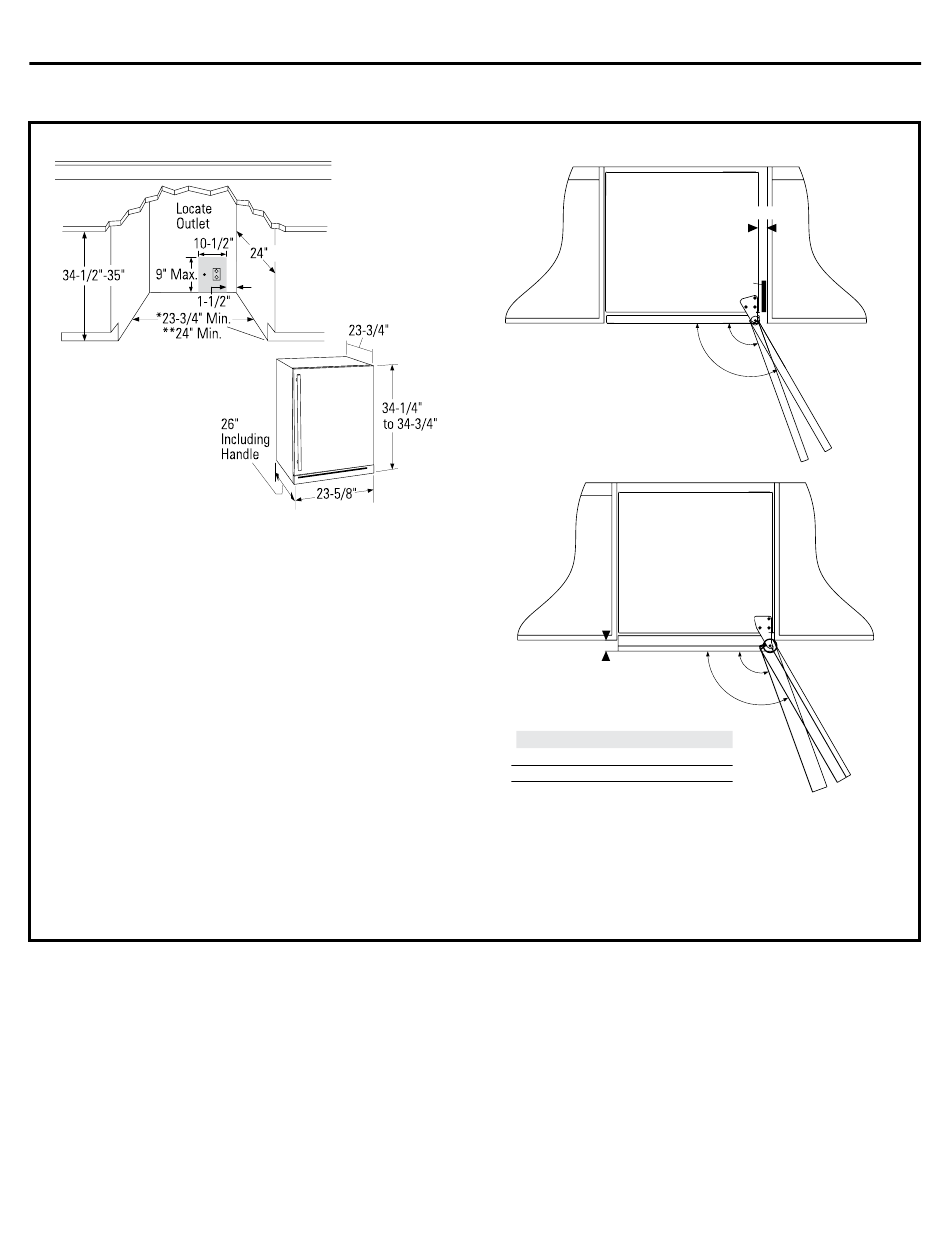

* For a standard installation: The product must be installed
so that the stainless steel front will project 1-5/8" forward of
adjacent cabinets. This position will allow a full door swing
and prevent interference with adjacent cabinetry. The opening
between cabinets must be 23-3/4" minimum.
** For a flush installation: Install a 1/4"-wide filler strip on the
hinge side. The filler strip will act as a spacer between the
door case and adjacent cabinets and will prevent interference
with the cabinet door swing. Recess the filler strip 1-5/8" back
from the front face of the refrigerator, or even with the front
edge of the product case (behind the gasket). The width of the
opening must be 24" (including the 1/4" filler strip).
• All models may be used freestanding.
Additional Specifications
• A 120 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch circuit
or circuit breaker is recommended. Install a properly
grounded 3-prong electrical receptacle recessed into
the back wall as shown. Electrical must be located on
rear wall as shown. NOTE: GFCI (ground fault circuit
interrupter) is not recommended.
31-51544-11
Design Guide
NOTE:
Water line location
for ZIBS240 model
only
Flush
Installation
Filler panel or cleat to be set
CABINET
back even with front of case.
Front edge of product case
Front face
These products will fit flush to
adjacent cabinets when installed
with a 1/4" filler panel or cleat. The
filler panel should be recessed or
set back behind the door and even
with the front edge of the product
case.
Standard
Installation
CABINET
Front edge of product case
Dim. A
Front face
In a standard installation, the
product will project forward of
adjacent cabinets. See Dim. A.
Product
ZIFS240
ZIBS240
1/4"
CABINET
110°
120°
CABINET
110°
120°
Dim. A
1-5/8"
2-5/8"
5
