Initial RSS 2000 IP Configuration

The system is shipped with a default IP address:
IP Address:192.168.1.254
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
There are two ways to change the initial IP address of the sytem:
1. Via a cross over LAN cable
2. Via a RS232 or Telnet Console.
1. Changing the initial IP address via a cross over LAN cable
1. Connect a cross over LAN cable to LAN1 in the RSS 2000.
2. Set your laptop to the same segment of the RSS

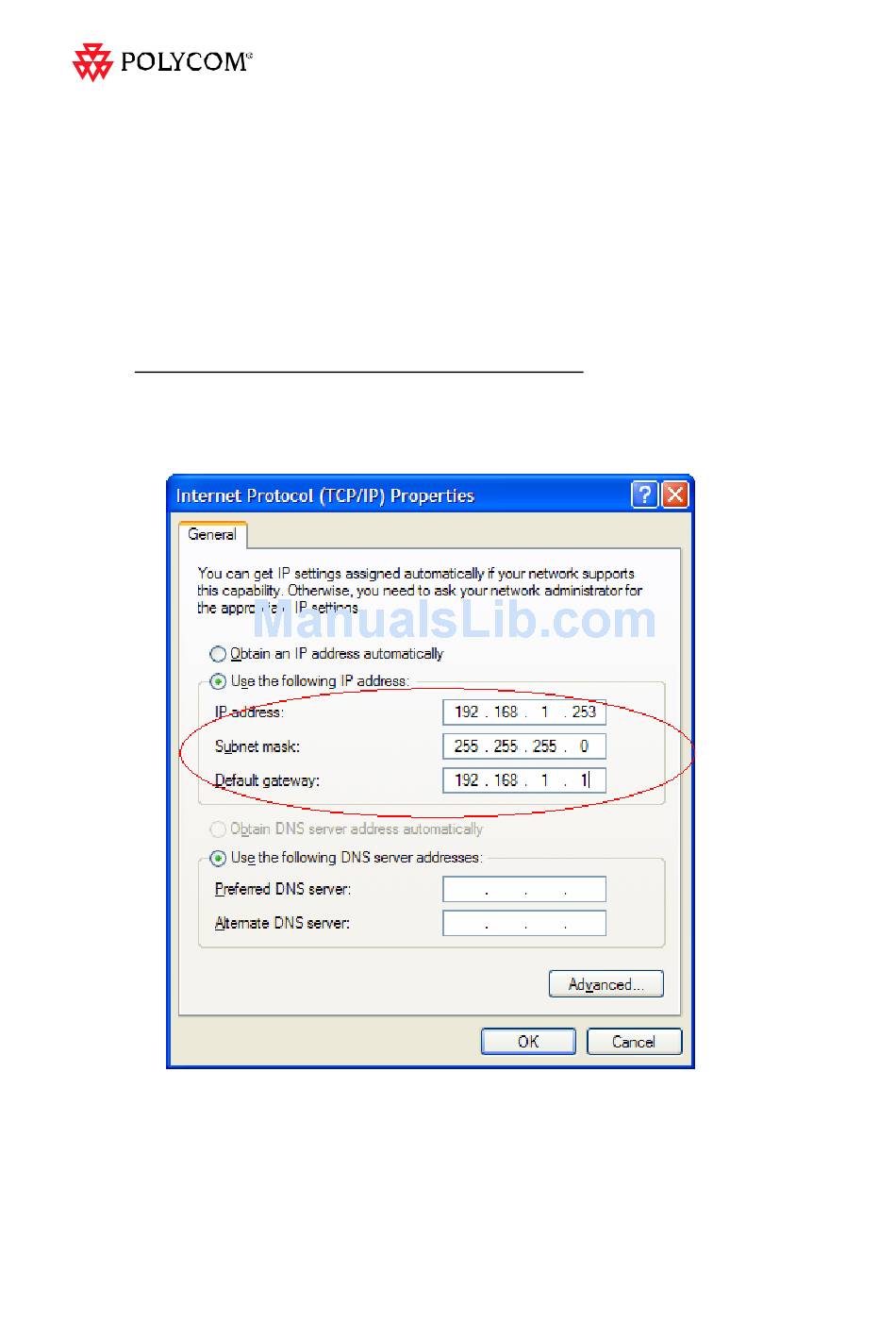

a. For example (in your laptop IP config setting):
DOC2153D RSS 2000 V2.0 Getting Started guide - Release Note Page 3
