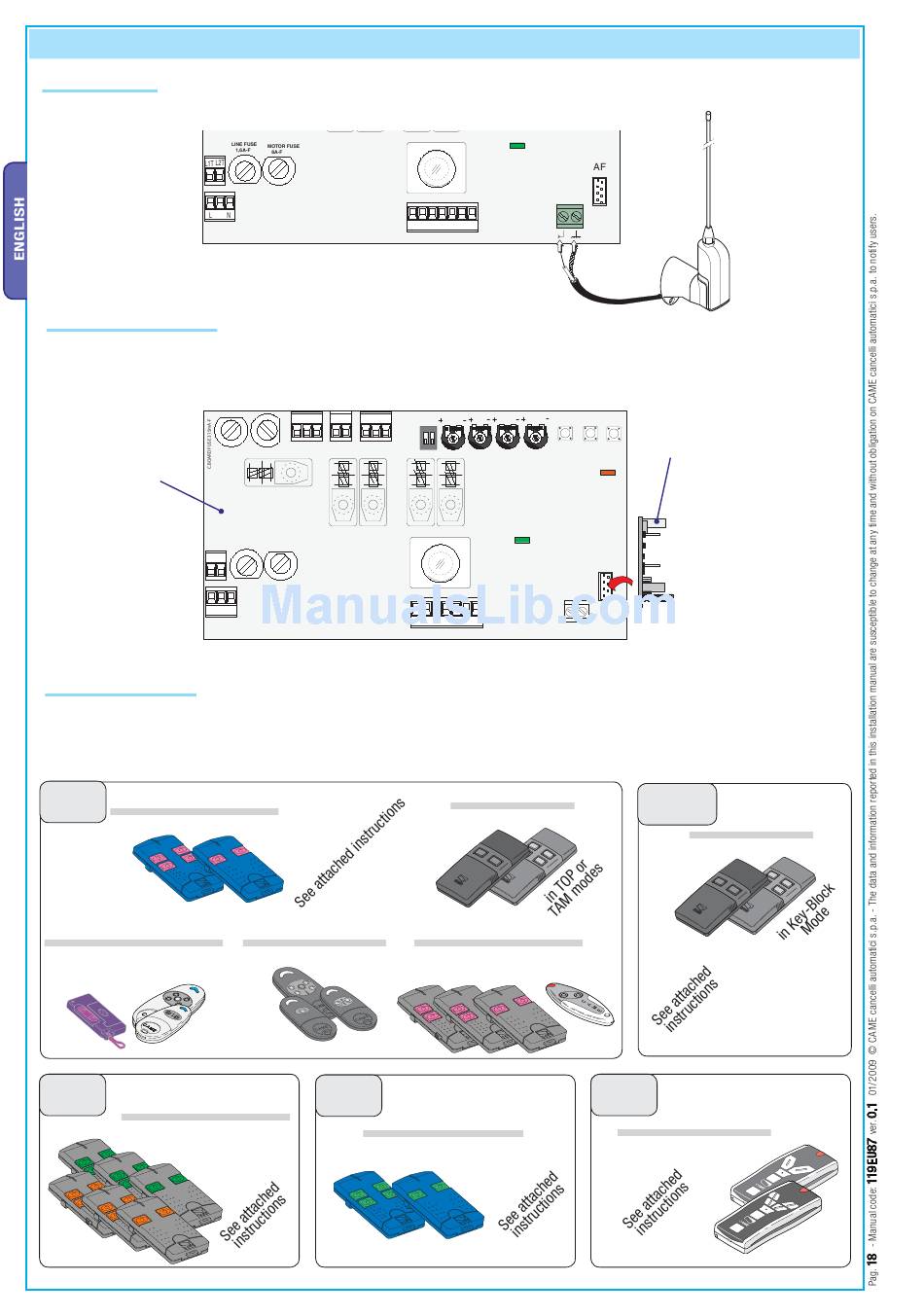

8 Activating the remote control

1 - Antenna
Connect the antenna with the RG58 cable to the apposite terminals on the board.
2 - Radio frequency
Connect the radiofrequency card to the electrical board AFTER SHUTTING OFF THE POWER (or disconnecting the batteries).
N.B.: The circuit board recognizes the readiofrequency card only when it is running in electrical power.
Electrical board
L1T
L
3 - Transmitters
WARNING! Can memorise up to a maximum of 24 transmitters that have different codes.
Note: each transmitter that has a different code, may be duplicated for "n" transmitters (of the same series), except for the ATOMO
transmitter.
