Summary of Contents for CAME V6000P
- Page 1 Garage door operator FA01321-EN FA01321-EN V6000P - V1000P EN English INSTALLATION MANUAL...
- Page 2 • This product should only be used for the purpose for which it was explicitly designed. Any other use is dangerous. Came S.p.A. is not liable for any damage caused by improper, wrongful and unreasonable use • keep these warnings together with the installation and use manuals of the operator system components.
- Page 3 the mobile structures, to the automation components, to all the fastening points and devices, to the cables and accessible connections. Keep any hinges, moving joints and slide rails properly lubricated • perform functional checks on the photocells and sensitive safety edges, every six months. To check that the photocells operate correctly, pass an object in front of them during closing;...

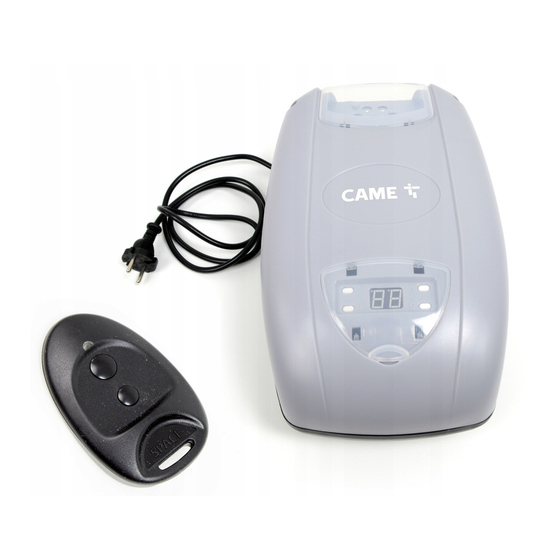

- Page 4 ABS casing with display for keypad programming and an LED courtesy light. Intended use The V6000P and V1000P operators are designed to power overhead garage and sectional doors for homes and apartment blocks.
- Page 5 Packing list ① one Operator ⑧ One door fitting brace ② one Installation Manual ⑨ Eight self-drilling hexagonal head M6x15 screws ③ two anchoring perforated-plates ⑩ One hexagonal M6x80 nut and bolt ④ one Curved lever ⑪ One (Ø8x25) drive-shaft adapter ⑤ ...
- Page 6 Description of parts Pre-assembled guide package Operator ① Cover ⑥ Guide ② Gearmotor ⑦ Chain or belt ③ Transformer ⑧ Slide ④ Control board ⑨ Transmission arm ⑤ Power supply cable ⑩ Release cord ② ① ③ ④ ⑤ ⑨ ⑩...
-
Page 7: Preliminary Checks
Slide guides 001V06001 Chain guide L = 3.02 m. Counter-balanced overhead doors up to 2.4 m in height - Counter-balanced overhead doors up to 2.25 m in height - Sectional* doors up to 2.20 m in height. 001V06002 Chain guide L = 3.52 m. - Counter-balanced overhead doors up to 2.75 m in height. -
Page 8: Cable Types And Minimum Thicknesses
Cable types and minimum thicknesses Cable length Cable length Connection Cable type 1 < 15 m 15 < 30 m Control panel power supply 230 V AC H05VV-F 3G x 1.5 mm 3G x 2.5 mm Flashing light 2 x 0.5 mm FROR CEI Photocell transmitters 2 x 0.5 mm... -
Page 9: Sectional Door
Applicative examples SECTIONAL DOOR * sectional door * sectional door with dual guide with single guide SPRING-BALANCED OVERHEAD DOOR, COUNTERBALANCED OVERHEAD, fully retracting and protruding partially retracting and protruding INSTALLING ⚠ The following illustrations are just examples, in that the space available for fitting the operator and accessories varies depending on the overall dimensions. - Page 10 Fastening the traction guide Fasten the traction guide to the center of the doorway, using suitable screws. Raise the guide and position in horizontally to measure the distance to the ceiling, then fasten it. Install the support braces and the U brace on the guide.
- Page 11 Fitting the operator to the guide Fit the adapter to the drive shaft. The operator can be fi tted onto the guide: either in standard position or at a right angle Self-drilling 6 x 15 screw U-shaped brace Micro Guide Drive shaft with adapter Self-drilling 6 x 15 screw Guide...
- Page 12 Moving the micro switch Disconnect the cables of the micro switch and remove the latter. Remove the operator's cover and the cable brace. Pull out the electrical cable and fi t it through the hole. Refi t the cable brace so as to block the hole. Use a screwdriver to open up the predrilled hole for the electrical cables of the micro switch and fi...
-
Page 13: Electrical Connections
Release the operator Release ⓒ To release the operator, pull down the cord ⓒ. Locking To lock the operator back up, use the transmitter or the control button. ELECTRICAL CONNECTIONS ⚠ Before powering up the board, cut off the mains power supply. Power supply (V - 50/60 Hz): 230 AC Board functions: •... - Page 14 Description of parts ① Line power-supply connector ⑨ AF card connector ② Gearmotor ⑩ Antenna terminals ③ Transformer ⑪ Programming board connector ④ Cables input ⑫ Terminals for control and warning devices ⑤ Encoder connector ⑬ Safety-device terminals ⑥ Gearmotor connector ⑭ Courtesy light cover connector ⑦ Card power supply connector ⑮ Calibration microswitch terminal ⑧ Control board ②...
- Page 15 Movement control and obstacle detection While opening: the door stops. To resume movement, either press a button or use the transmitter. When CLOSING:: it inverts the direc- tion of travel until opening is complete. After three consecutive inversions, the door stays open and excludes the automatic closing: to close, either use the transmitter or button.
-
Page 16: Safety Devices
Safety devices If a device is connected, remove the bridge (NC) contact for reopening during closing. Input for safety devices such as photocells, sensitive safety-edges and other devices that are compliant with EN 12978 standards. During closing, opening this contact triggers an inversion of movement until the door is completely open. -
Page 17: Programming Device
PROGRAMMING DEVICE Preparing for programming Manually hook up the door to the skid. Power up the operator. After emitting a sound signal, the control board is ready for programming. Remove the transparent panel to access the programming keys. ⚠ Memorizing (function 5) must always be the last phase of programming, otherwise the settings will not be saved. - Page 18 Obligatory functions Establishing the opening limit-switch points ⚠ Respect the order of settings of the limit switches shown in this manual. With the operator idle Press P for about fi ve Press +. seconds. 5” The operator emits a sound Let the door reach the desired signal and 1 appears.
- Page 19 Memorizing the programming ⚠ It is OBLIGATORY to conclude the programming procedures with this function so as not to lose any saved settings! Press + to select 5. Press P. The display segments rotate clockwise. The programming has been memorized. Adjusting the sensitivity ⚠ The door must be properly balanced.
- Page 20 Optional functions Setting the alarm By default, this function is deactivated; by activating the alarm function, the operator emits a long sound signal if the door stays open for more than 10 minutes. To activate it: Press P for about fi ve sec- Press + and select 1.
- Page 21 Memorizing (function 5) must always be the last phase of programming, otherwise the settings will not be saved. ⚠ The operator emits an intermittent sound signal for 20 seconds before the door starts to automatically close. Simultaneously, the courtesy light fl ashes. When the door starts closing, the operator emits a sound signal and the courtesy light is on.
- Page 22 ENABLING THE RADIO CONTROL Before fitting the AF card, you MUST CUT OFF THE MAINS POWER SUPPLY Additional external antenna Disconnect the internal antenna and connect the external one to the corresponding terminals on the control board. Radio frequency card Fit the AF card into the connector on the control board.
-
Page 23: Deleting Transmitters
Deleting transmitters Press and keep pressed S until..0 appears on the left side of the screen. The segments of the 0 on the left side of the screen rotate clockwise. When the 0 on the left disappears, release the S key: the transmitters have been deleted. -
Page 24: Periodic Maintenance
MAINTENANCE Periodic maintenance ☞ Before doing any maintenance, cut off the mains power supply, to prevent any hazardous situations resulting from the door's unexpected movement. Periodic maintenance log to be filled in by users every six months. Date Notes Signature... - Page 25 Extraordinary maintenance ⚠ The following table is for logging any extraordinary maintenance jobs, repairs and improvements performed by specialized contractors. Any extraordinary maintenance jobs must be done only by specialized technicians. Extraordinary maintenance log Fitter's stamp Name of operator Job performed on (date) Technician's signature Requester's signature...
-
Page 26: Dismantling And Disposal
DISMANTLING AND DISPOSAL ☞ CAME S.p.A. employs an Environmental Management System at its premises. This system is certified and compliant with the UNI EN ISO 14001 regulation standard to ensure that the environment is respected and safeguarded. Please continue safeguarding the environment. At CAME we consider it one of the fundamentals of our operating and market strategies. - Page 28 The contents of this manual may change, at any time, and without notice. CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
