THE WORLD MODELS SPITFIRE EP Instruction Manual page 5

3

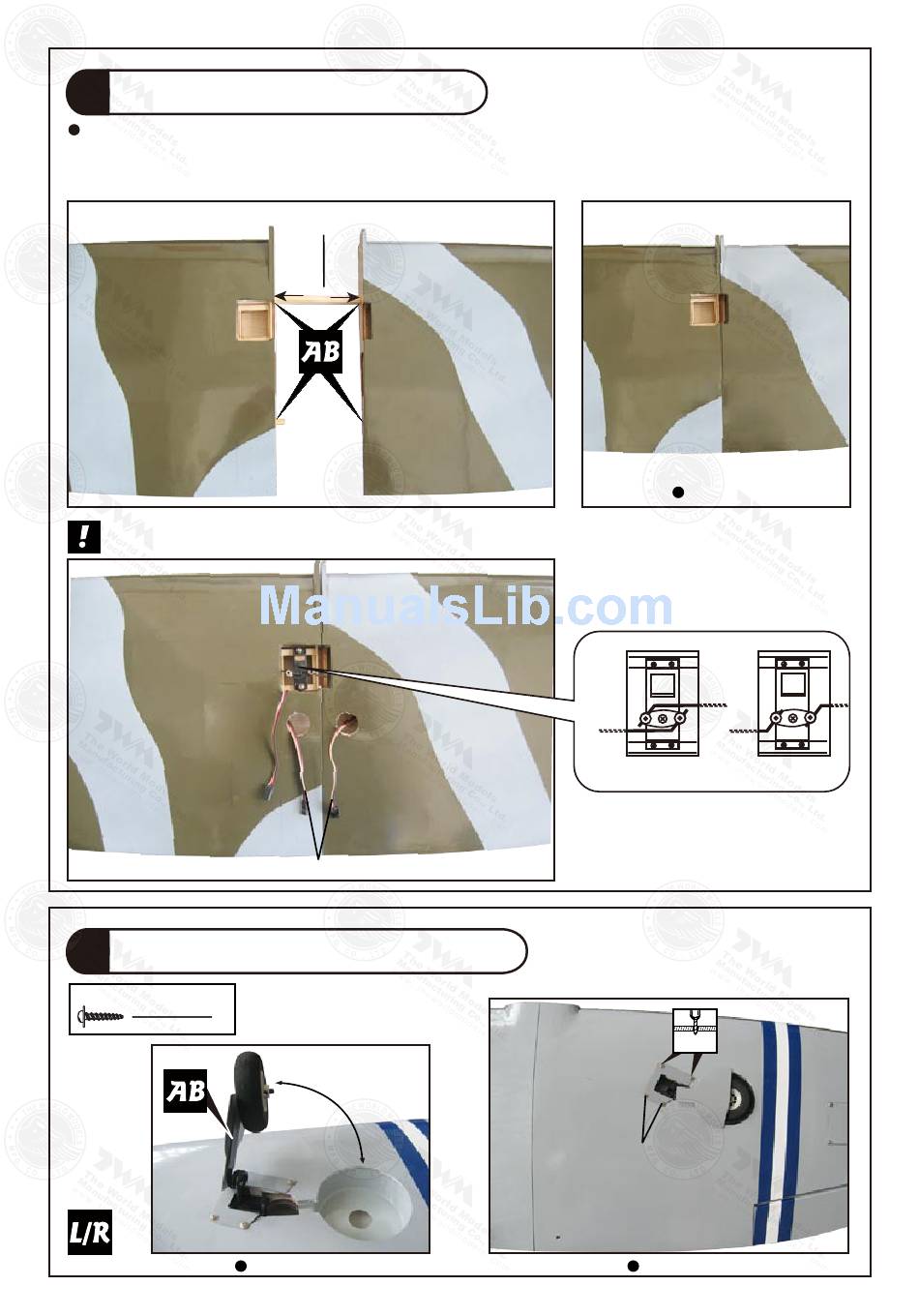

Main Wing and Retract Servo
Please dry fit wing joiner into left and right wing to make sure they fit with the proper dihedral angle,
mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact. Use a
stick to apply the glue to inner side of wing joiner sleeve, and apply the glue to wing joiner before
putting them together. Wing joiner not glued properly will lead to wing failure and plane crash.
Please refer to attched sheet for linkage connector installation
4
Retractable Landing Gear Cover
PWA2x8mm Screw
8
Wing Joiner
6x16x208mm
Aileron Servo
Bottom View
To
L-side
Wheels up Position Wheels down Position
PWA2x8mm
P.4
Completed
To
R-side
1mm
Bottom View
