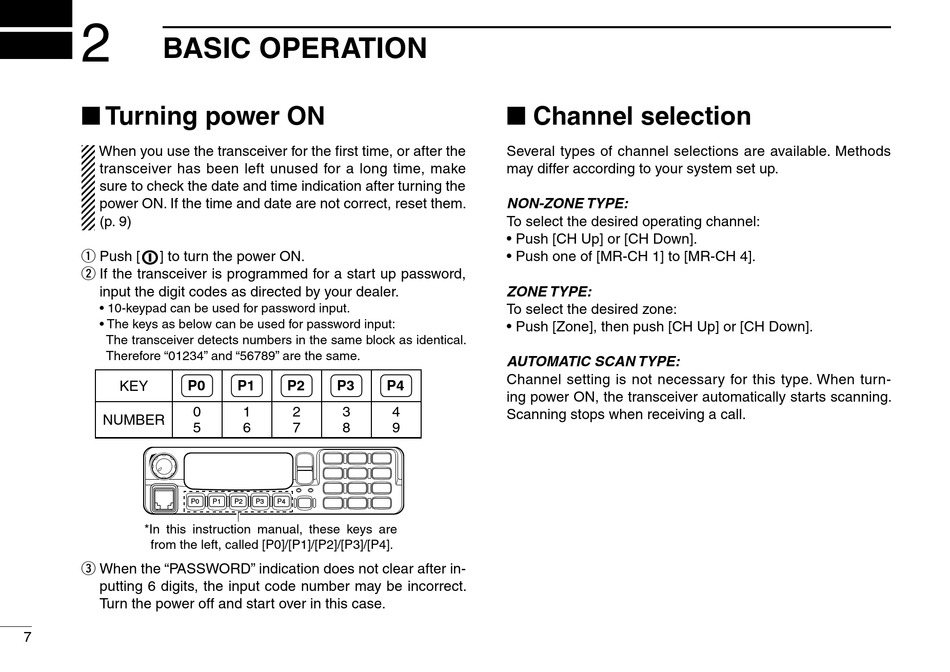

BASIC OPERATION

n Turning power ON
When you use the transceiver for the first time, or after the
transceiver has been left unused for a long time, make
sure to check the date and time indication after turning the
power ON. If the time and date are not correct, reset them.
(p. 9)
q Push [ ] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input.
• The keys as below can be used for password input:
The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
P0
KEY
0
NUMBER
5
P0
*In this instruction manual, these keys are
from the left, called [P0]/[P1]/[P2]/[P3]/[P4].
e When the "PASSWORD" indication does not clear after in-
putting 6 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
7
P1 P2 P3 P4
1 2 3
6 7 8
P1 P2 P3 P4
n Channel selection
Several types of channel selections are available. Methods
may differ according to your system set up.
NON-ZONE TYPE:
To select the desired operating channel:
• Push [CH Up] or [CH Down].
• Push one of [MR-CH 1] to [MR-CH 4].
ZONE TYPE:
To select the desired zone:
• Push [Zone], then push [CH Up] or [CH Down].
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turn-
ing power ON, the transceiver automatically starts scanning.
4
Scanning stops when receiving a call.
