MINI NEMSIS EP
Aileron.
Repeat the procedure for other landing
gear.

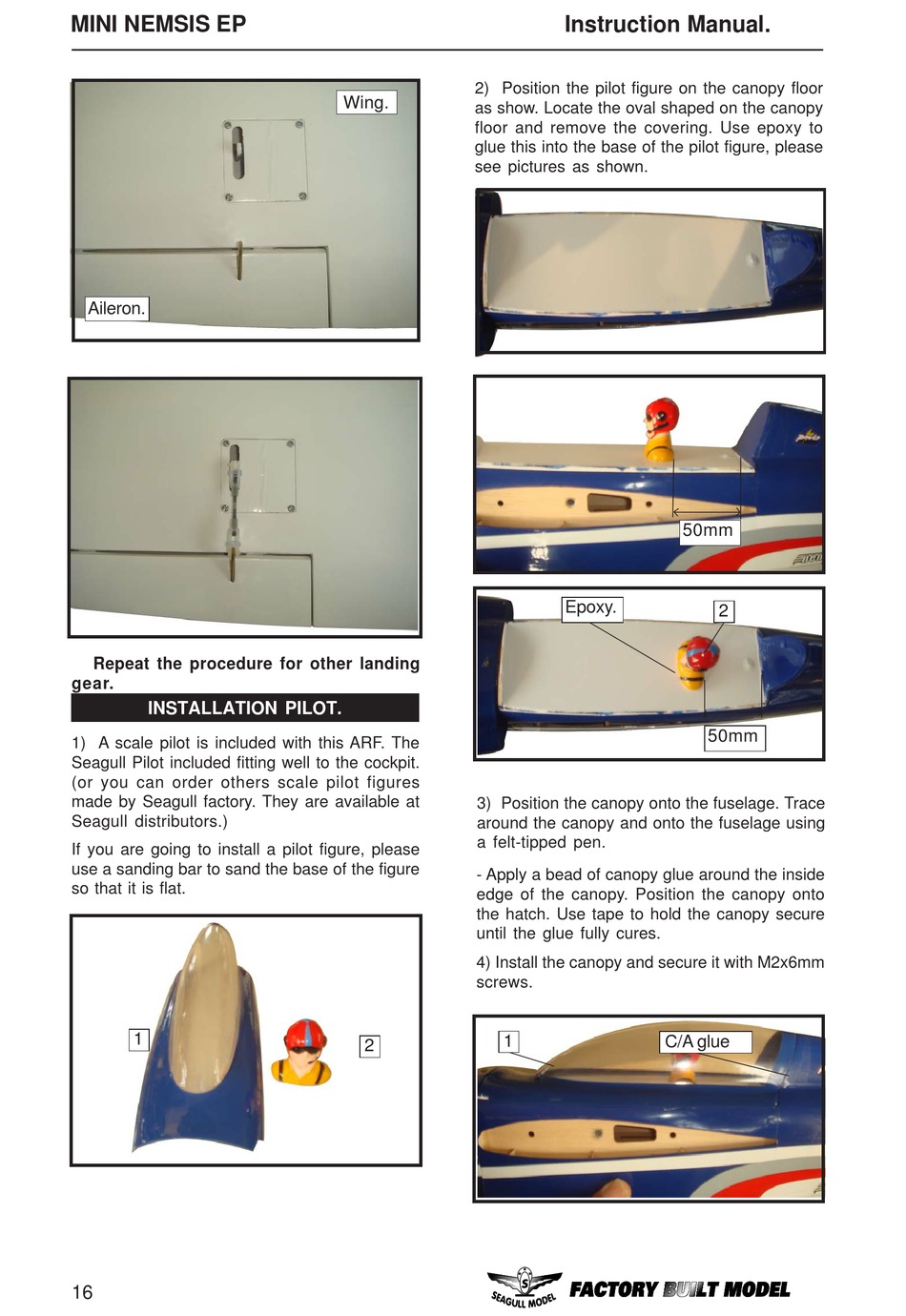

INSTALLATION PILOT.
1) A scale pilot is included with this ARF. The
Seagull Pilot included fitting well to the cockpit.
(or you can order others scale pilot figures
made by Seagull factory. They are available at
Seagull distributors.)
If you are going to install a pilot figure, please
use a sanding bar to sand the base of the figure
so that it is flat.
1
16
2) Position the pilot figure on the canopy floor
Wing.
as show. Locate the oval shaped on the canopy
floor and remove the covering. Use epoxy to
glue this into the base of the pilot figure, please
see pictures as shown.
3) Position the canopy onto the fuselage. Trace
around the canopy and onto the fuselage using
a felt-tipped pen.
- Apply a bead of canopy glue around the inside
edge of the canopy. Position the canopy onto
the hatch. Use tape to hold the canopy secure
until the glue fully cures.
4) Install the canopy and secure it with M2x6mm
screws.
1
2
Instruction Manual.
50mm
Epoxy.
2
50mm
M2 x 6mm. C/A glue
