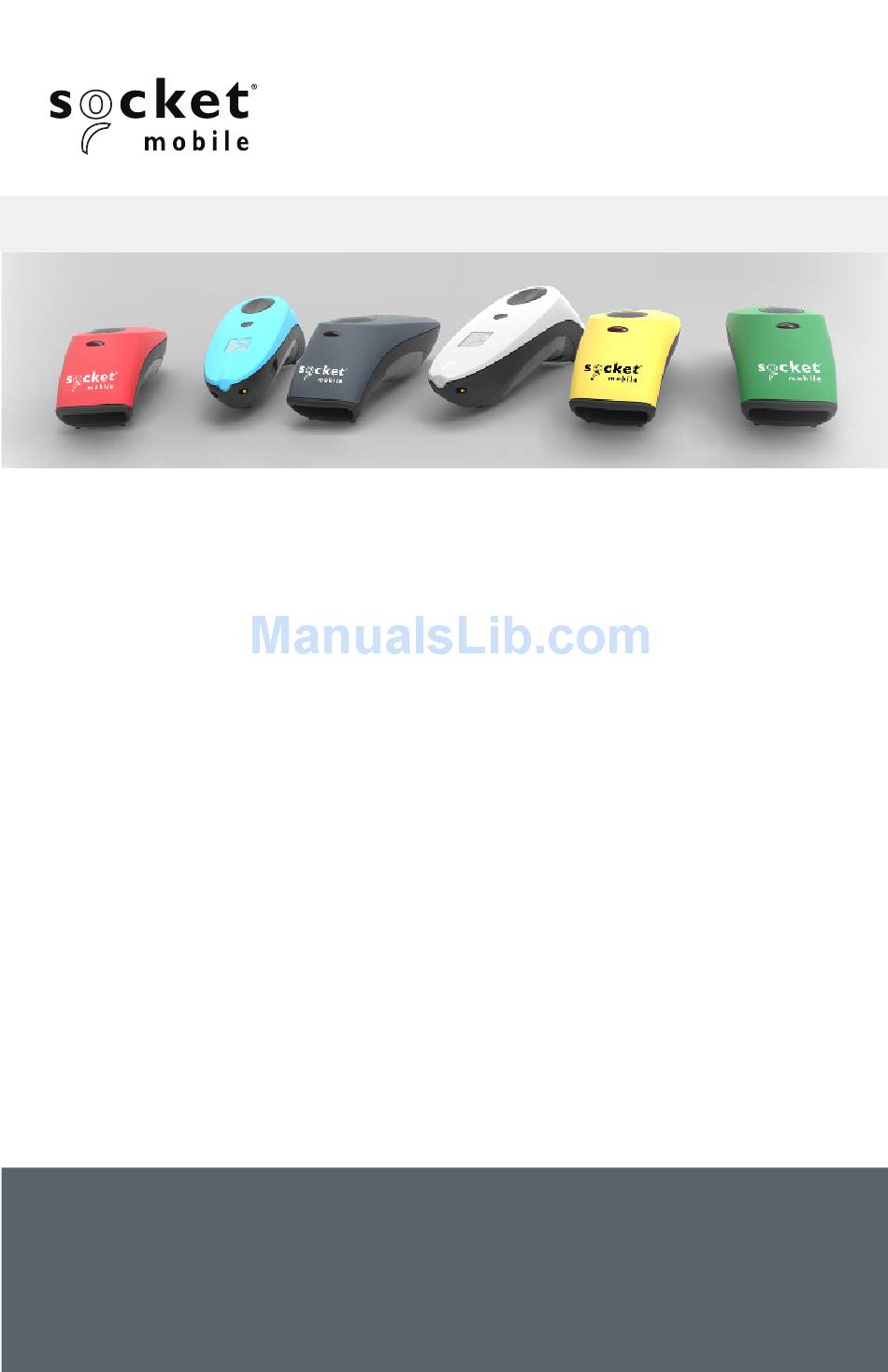

SERIES 7
1D LASER QUICKSTART GUIDE

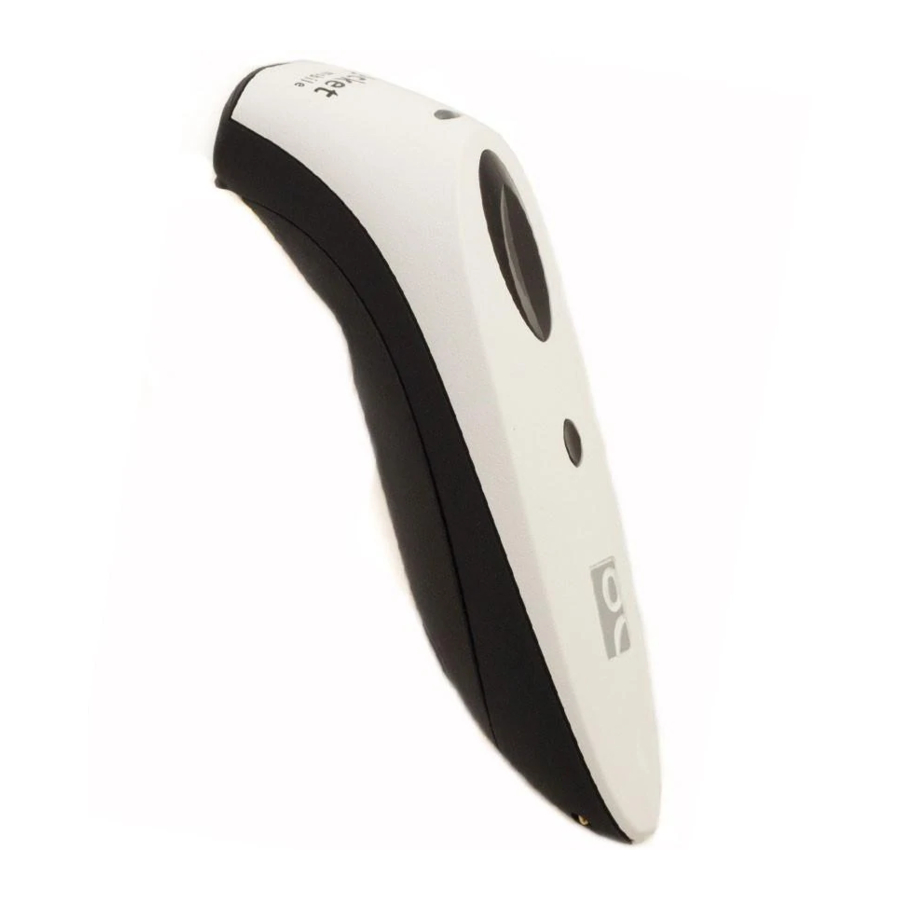

Model shown: CHS 7Mi
Bluetooth Barcode Scanner
CHS 7Mi/7Pi
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHS 7Mi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket CHS 7Mi

Summary of Contents for Socket CHS 7Mi

  • Page 1 SERIES 7 1D LASER QUICKSTART GUIDE Model shown: CHS 7Mi Bluetooth Barcode Scanner CHS 7Mi/7Pi www.socketmobile.com...

  • Page 2: Package Contents

    SocketScan are registered trademarks or trademarks of Socket Mobile, Inc. The Bluetooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective owners.
  • Page 3 PRODUCT INFORMATION PRODUCT INFORMATION Blue/Green/Red Trigger button Power button* Product label Scanner head DC-in connector Battery door Twist-lock (horizontal/unlocked) Disc for magnet on stand charger Twist-lock (vertical/locked) Lanyard Pins for charging cradle *Also used for keyboard Pop-up feature (HID Mode only)

  • Page 4: Scanner Setup

    SCANNER SETUP Insert the Batteries Unlock the Battery door by using a thin coin to turn the lock under the CHS to a horizontal position (turn 90 degrees). Install the batteries in their correct position as indicated by the +/- symbols. Important: Only use NiMH Recharge- able batteries.

  • Page 5: Basic Functionality

    BASIC FUNCTIONALITY Power button Powering On: Press and hold down the small power button until the LED turns blue and the CHS beeps twice (low-high). Powering Off/ Disconnecting: Press and hold down the small power button until the CHS beeps twice (high-low).
  • Page 6 • Apple MFI tested and certified. Apple Specific • If you have an application that supports Socket Mobile Serial Profile Scanners this is the mode you want to use. *By default, the CHS is set to HID Mode.

  • Page 7: Hid Mode

    3. Make sure the device has Bluetooth “On”. Scan for devices. 4. In the list of found devices, select Socket CHS [xxxxxx]. Tap Pair. 5. The CHS will connect to the Android device. 6. The CHS will beep once after it has connected and is ready to scan bar- codes.
  • Page 8 1. Power on the CHS and scan this barcode. The CHS will beep 3 times. 2. Turn on Bluetooth on your PDA or PC and start a device search. 3. Select Socket CHS. If prompted for a passkey, enter 0000 (four zeroes). If prompted to select services, select Input Device.
  • Page 9 1. Power on the CHS and scan this barcode. The CHS will beep 3 times. 2. Turn Bluetooth on for your device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 3. Tap Socket CHS[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired”...
  • Page 10 4. Power on the CHS and scan this barcode. The CHS will beep 3 times. 5. Use the Bluetooth software on your computer to start a device search. 6. Tap Socket CHS[xxxxxx]* in the list of Devices found. If prompted for a passkey enter 0000 (four zeroes).
  • Page 11 3. Turn Bluetooth on the Apple device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket CHS[xxxxxx]* in the list of Devices found. After a few seconds “Not Paired” status will change to “Connected” and the CHS Blue LED will blink every 3 seconds confirming the connection.

  • Page 12: Bluetooth Unpairing

    BLUETOOTH UNPAIRING Note: This procedure will put the CHS in discoverable mode. Step 1: Unpairing the CHS: Delete the Bluetooth Pairing If the CHS is paired with a device, unpair it before trying to connect to a different device. 1. Power on the CHS. 2.

  • Page 13: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the CHS. Make sure the CHS is not connected to a device before scanning a command barcode! See page 12 for unpairing instructions. For a complete set of command barcodes, download the Command Barcodes Sheet: http://www.socketmobile.com/support/downloads The web link is also provided in the below QR Code.
  • Page 14 COMMAND BARCODES (CONTINUED) Important! Make sure the CHS is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after CHS Decodes Data ON (default) Enables CHS to beep to indicate successful scans. Beep after CHS Decodes Data OFF Disables CHS from beeping to indicate...

  • Page 15: Status Indicators

    STATUS INDICATORS Status LED Activity Meaning Bluetooth 1 Blue blink every Bluetooth is On but not second connected. 1 Blue blink every 3 CHS is connected to device. seconds Good Read Green Constant Data successfully scanned. (while scanning) Battery Status Red Blinking 20% or less battery capacity (while scanning and no...
  • Page 16 STATUS INDICATORS (CONTINUED) Vibrate Meaning Vibrate Power On or data successfully scanned. Command Barcodes are available on pages 13-14 to modify the LED, beep, and vibrate settings. If you are using a Scanner-enabled Application, typically the application provides settings for LED, beep, and vibrate settings. Bluetooth Mode Sequence Time after powering on CHS Bluetooth mode...

  • Page 17: Product Specifications

    PRODUCT SPECIFICATIONS Specifications CHS 7Mi CHS 7Pi 5.07 x 1.57 x 1.36 in. 5.2 x 1.77 x 1.49 in. Dimensions (129 x 40.1 x 34.6 mm) (132 x 45.1 x 37.9 mm) Total Mass 1.8 oz (51 g) 3.2 oz (90.7 g)

  • Page 18: Helpful Resources

    Technical Support & Product Registration: http://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3000 (worldwide) Warranty Checker: http://www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://www.socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: http://www.socketmobile.com/support/downloads This web link is also provided in the below QR Code.

  • Page 19: Regulatory Compliance

    Socket Mobile Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.
  • Page 20 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Pro- gram! Please provide your device serial number from the label below when enrolling: Serial Label Here For detailed information visit: http://www.socketmobile.com/socketcare 2015 #6430-00353D...
