Socket CHS 7Ci Quick Start Manual

Bluetooth cordless barcode scanner
Hide thumbs Also See for CHS 7Ci:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

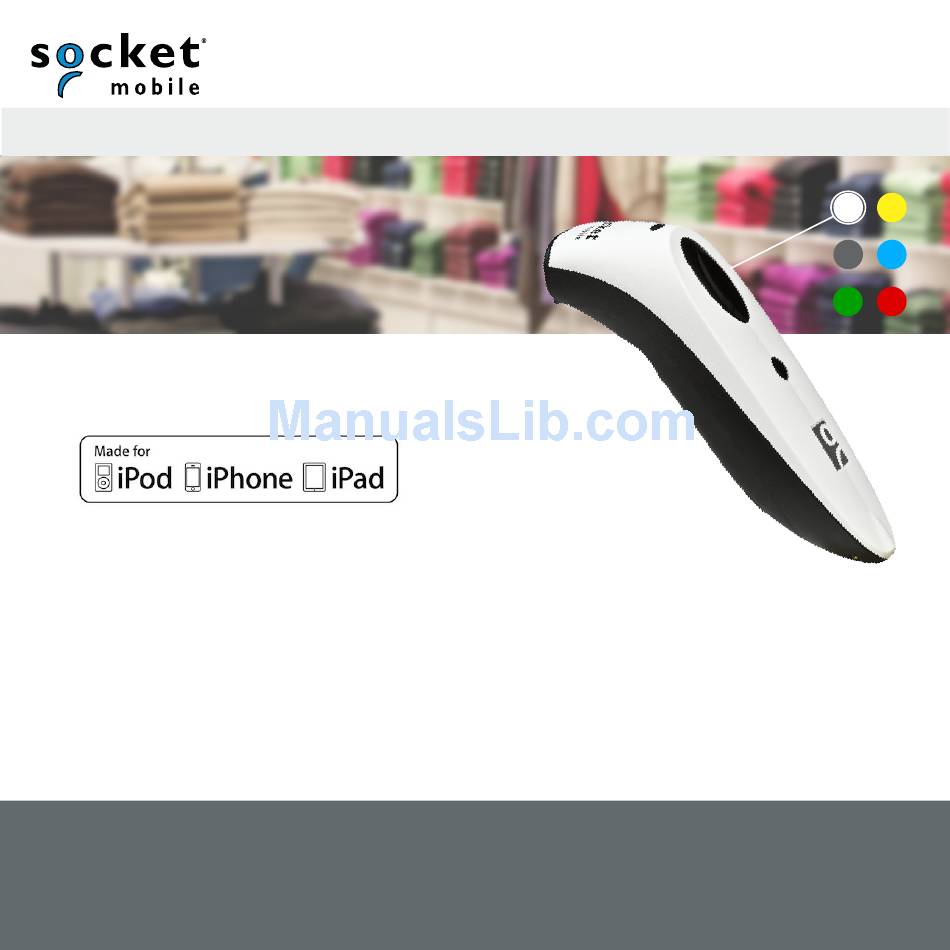

CHS 7Ci
Quick Start Guide
Bluetooth cordless Barcode Scanner
www.socketmobile.com

Advertisement

Table of Contents
loading

Related Manuals for Socket CHS 7Ci

Summary of Contents for Socket CHS 7Ci

  • Page 1 CHS 7Ci Quick Start Guide Bluetooth cordless Barcode Scanner www.socketmobile.com...

  • Page 2: Package Contents

    Bluetooth SIG, Inc. USA, and any charging use by Socket Mobile, Inc. is under license. All other trademarks and trade names con- cradle tained herein may be those of their respective owners.

  • Page 3: Scanner Setup

    Charging from a computer uSB port rechargeable batteries. do is not reliable and not recommended. NOt use alkaline Batteries Socket mobile offers a Charging Cradle attach the Lanyard (optional) (optional Accessory/sold separately, detach the string loop of the SKU# AC4054-1381) which is a convenient tether from the lanyard.

  • Page 4: Basic Functionality

    BASIC fuNCTIONALITy BASIC fuNCTIONALITy (CONTINuEd) Aim the scan beam straight Not recommended across the entire barcode. scanning techniques Power button Scanning Barcodes: After connecting the CHS to your device, open an application and put the cursor where you want to enter data. • Powering On: • Powering Off/ disconnecting: Press and hold down the small...

  • Page 5: Connection Modes

    CHS. If the connection steps are not documented in the Application, please see pages 12-13 for the connection steps using iOS mode. Please visit the Socket Mobile App Store to confirm your Scanner-en- abled Application supports the CHS. www.socketmobile.com/appstore...
  • Page 6 3. Quickly double-press the power button of the CHS (like double- clicking a mouse) to open or close the onscreen keyboard. The CHS will beep once as confirmation. 3. Tap Socket CHS[xxxxxx] in the list of devices found. After a few sec- onds the “Not Paired”...
  • Page 7 CHS. many applications include these steps and Bluetooth devices search will begin. barcodes in the set-up procedure. 3. Tap Socket CHS[xxxxxx] in the list of devices found. After a few If you are using an Application that connects to the CHS using HId seconds the “Not...

  • Page 8: Bluetooth Unpairing

    CHS, it will be discoverable. remove the cHS from the Bluetooth list in your iOS device To unpair the CHS on your device, go to Settings > Bluetooth, tap next to the Socket CHS [xxxxxx] name, then tap “forget this device”.

  • Page 9: Bluetooth Connection

    BLuETOOTH CONNECTION COmmANd BArCOdES Scan command barcode(s) to quickly configure the CHS. make sure the CHS is not connected to a device before scanning a command barcode! for a complete set of command barcodes, download the Command Barcodes Sheet: www.socketmobile.com/pdf/data-collection/ command-barcodes-sheet-7C.pdf The web link is also provided in the below Qr Code.
  • Page 10 COmmANd BArCOdES (CONTINuEd) COmmANd BArCOdES (CONTINuEd) Beep Settings Bluetooth Connection modes Beep after cHS decodes data ON Hid-keyboard (default) (default) Configures the CHS to Human Interface device (HId) mode Enables CHS to beep as a Keyboard class device. to indicate success- ful scans.

  • Page 11: Status Indicators

    COmmANd BArCOdES (CONTINuEd) STATuS INdICATOrS Status Vibrate Settings LEd Activity meaning Bluetooth 1 Blue blink every Bluetooth is On but not second connected. Vibrate after cHS decodes data ON (default) 1 Blue blink every 3 CHS is connected to Enables CHS to vibrate to seconds device.
  • Page 12 STATuS INdICATOrS (CONTINuEd) STATuS INdICATOrS (CONTINuEd) Beep Pattern Meaning Vibrate meaning Low-high tone Power On Vibrate Power On or data successfully scanned. High-low tone Power Off 1 low beep Keyboard Pop-up Enable Command Barcodes are available on pages 19-20 to modify the 1 beep CHS connected to device and ready to scan bar- LEd, beep, and vibrate settings.

  • Page 13: Product Specifications

    Mass 1.6 oz (45 g) Warranty checker: antimicrobial Antimicrobial additive in all external surfaces www.socketmobile.com/support/warranty-checker Socket Mobile developer Program: Operating temp +32 to +122°F (0 to + 50°C) Learn more at: http://developer.socketmobile.com Battery Life 14 hours or 15,000 scans The user’s Guide (full installation and usage instructions) and Command...

  • Page 14: Fcc Warning Statement

    fCC WArNING STATEmENT NOTES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can model _______________________________________ radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 15 2015...
