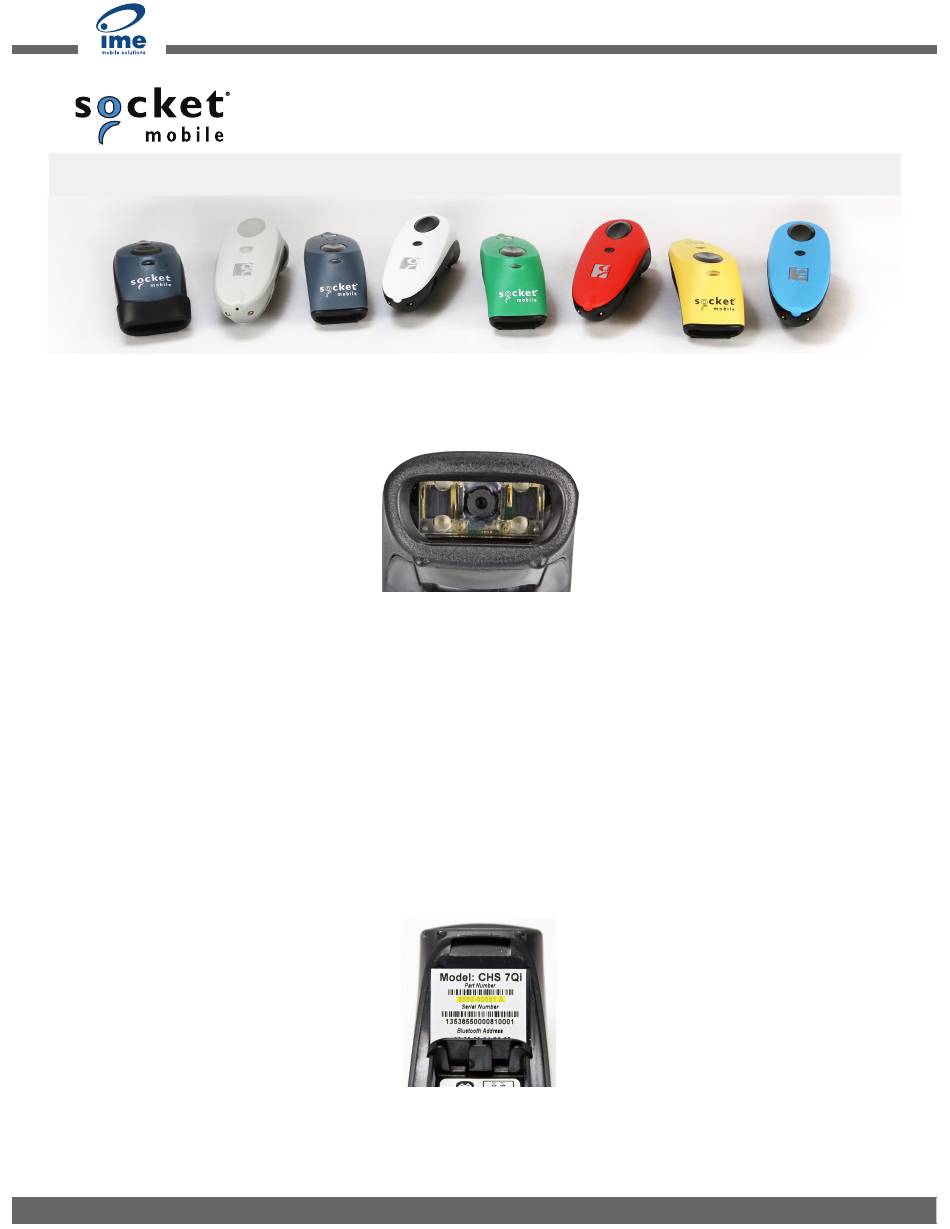

2D IMAGER MODELS - 7Qi, 7Xi, 7XiRx
This document pertains to the following CHS Series 7:
The part number (P/N) is labeled inside the battery compartment for the CHS Series 7.
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de
COMMAND BARCODES
Model
7Qi
Blue
7Qi
Gray
7Qi
Green
7Qi
Red
7Qi
White
7Qi
Yellow
7Xi
Gray
7XiRx
White
P/N
8550-00081
8550-00078
8550-00090
8550-00080
8550-00082
8550-00079
8550-00059
8550-00060
www.ime.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Socket 7Qi
Summary of Contents for Socket 7Qi
- Page 1 COMMAND BARCODES 2D IMAGER MODELS - 7Qi, 7Xi, 7XiRx This document pertains to the following CHS Series 7: Model Blue 8550-00081 Gray 8550-00078 Green 8550-00090 8550-00080 White 8550-00082 Yellow 8550-00079 Gray 8550-00059 7XiRx White 8550-00060 The part number (P/N) is labeled inside the battery compartment for the CHS Series 7.
-
Page 2: Table Of Contents
www.ime.de Table of Contents General Command Barcodes Data Editing - Prefix/Suffix Rumble/Beep Modes Language Settings QX Stand Modes Apple iOS Oscreen Keyboard Advanced Users Only 1D Symbologies 2D Symbologies Postal Symbologies SCANNER MODES ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de... -
Page 3: General Command Barcodes
www.ime.de GENERAL COMMAND BARCODES INSTRUCTIONS: Scan command barcode(s) to quickly configure the barcode scanner. Many of the command barcodes only work with a scanner in a particular Bluetooth mode as indicated by the header row of each table. All Bluetooth Connection Modes OK Scan only with CHS in SPP or iOS Mode Scan only with CHS in HID Mode Symbologies... - Page 4 Changes the CHS to Bluetooth Serial Port Profile (SPP) mode (optional for Windows and Android). #FNC SPP Acceptor 000000000000# iOS Mode Changes the CHS 7Qi, 7Xi, 7XiRx to Apple iOS mode (equivalent to SPP mode). #FNC IOS ACCEPTOR 000000000000# Factory Defaults...
-
Page 5: Data Editing - Prefix/Suffix
www.ime.de DATA EDITING – PREFIX / SUFFIX You can configure the CHS to automatically add a suffix and/or prefix to each scan of data. Note: Scanning multiple commands in a single instance will overwrite (not append) the previous command. Character or Command to Insert Scan to Enable Carriage Return Suffix (Default) -
Page 6: Rumble/Beep Modes
RUMBLE/BEEP MODES Important! Make sure the CHS is not connected to a host computer before scanning a command barcode. *Barcodes only work for 7Xi/7Qi with Rev M and above. For Rev M and below refer to page 12. Rumble/Beep Modes Vibrate “On”... -
Page 7: Language Settings
www.ime.de LANGUAGE SETTINGS HID Keyboard Language Settings Scan to Enable Language English #FNB41FBA10000# French #FNB41FBA10001# German #FNB41FBA10002# Spanish #FNB41FBA10003# ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de... -
Page 8: Qx Stand Modes
www.ime.de QX STAND MODES QX Stand Modes Mobile Mode - Normal (default)* Scanning this bar code will enable the scanner to enter mobile mode. It will always be in manual trigger mode even when placed in the stand or cradle. *Scanner Factory Reset returns to Mobile Mode. -
Page 9: Apple Ios Oscreen Keyboard
www.ime.de APPLE IOS OSCREEN KEYBOARD Apple iOS Onscreen Keyboard Apple iOS Onscreen Keyboard and Beep Enabled (Default) Configures the CHS to activate the iOS onscreen keyboard when connected to an iOS device and the CHS power button is double-pressed. Scan only with CHS in HID mode Disable both Onscreen Keyboard and Beep #FNB 41FBDA000C000000000000000000000000# Enable Beep... -
Page 10: Advanced Users Only
ADVANCED USERS ONLY Bluetooth Connection Modes *Barcodes only work for 7Xi/7Qi with Rev M and above. For Rev M and below refer to page 4. HID Mode (default) Configures the CHS to Human Interface Device (HID) mode. The CHS will be discoverable as a Keyboard to other Bluetooth devices. - Page 11 www.ime.de Bluetooth Connection Mode (ADVANCED Users Only) SPP Acceptor Mode Changes the CHS to Bluetooth Serial Port Profile (SPP) mode as an acceptor (waits for computer / device to initiate connection). #FNC SPP Acceptor 000000000000# SPP Initiator Mode Changes the CHS to Bluetooth Serial Port Profile (SPP) mode as an initiator.
- Page 12 www.ime.de Data Mode Rumble/Beep Mode (Advanced Users) Raw Mode Configures the CHS to raw mode (i.e., all scan data is sent as raw bytes instead of packets). #FNB 41FB9B0000# Packet Mode Configures the CHS to packet mode (i.e., the CHS encapsulates scan data into packets, with header and tail information to ensure integrity of data when received by host).
- Page 13 www.ime.de Special Commands Scan to Enable WITH BEEP Scan to Enable NO BEEP for HID Mode Ctrl + Z #FNB4 #FNB 1FBDA000C00060001010D000000000000# 41FBDA000C00020001011D000000000000# Ctrl + A #FNB #FNB 41FBDA000C000600010104000000000000# 41FBDA000C000200010104000000000000# Shift + Tab #FNB #FNB 41FBDA000C00060001202B000000000000# 41FBDA000C00020001202B000000000000# Ctrl + S #FNB #FNB 41FBDA000C000600010116000000000000#...
-
Page 14: Symbologies
www.ime.de 1D SYMBOLOGIES Important! Print out page to scan. Do not scan on screen. *Default Scan to Enable Symbologies Scan to Disable Codabar Code 93 / Code 93i Interleaved 2 of 5 ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de... - Page 15 www.ime.de Scan to Enable Symbologies Scan to Disable *EAN/UPC – UPC-E *EAN/UPC – UPC-E EAN/UPC – UPC-E1 *EAN/UPC – EAN 8 ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
- Page 16 www.ime.de Scan to Enable Symbologies Scan to Disable Standard 2 of 5 GS1 DataBar (RSS) *EAN/UPC – EAN-13 *Code 128 / GS1 128 ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
- Page 17 www.ime.de Scan to Enable Symbologies Scan to Disable *Code 39 Code 11 ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
-
Page 18: Symbologies
Scan to Enable Symbologies Scan to Disable Aztec *Data Matrix (Required to scan onscreen barcode in Socket EZ Pair for SPP mode) MaxiCode ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de... - Page 19 www.ime.de Scan to Enable Symbologies Scan to Disable QR Code MicroPDF417 *PDF417 Composite – CC-A/B ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
- Page 20 www.ime.de Scan to Enable Symbologies Scan to Disable Composite – CC-C DataBar (RSS) Limited DataBar (RSS) ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
-
Page 21: Postal Symbologies
www.ime.de POSTAL SYMBOLOGIES Important! Print out page to scan. Do not scan on screen. *Default Scan to Enable Symbologies Scan to Disable Australian Post BPO 4-State Canada Post ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de... - Page 22 www.ime.de Scan to Enable Symbologies Scan to Disable Dutch Post Infomail Japan Post Planet ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
- Page 23 www.ime.de Scan to Enable Symbologies Scan to Disable Postnet Sweden Post ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
-
Page 24: Scanner Modes
www.ime.de SCANNER MODES Note: Scanning multiple commands in a single instance will overwrite (not append) the previous com- mand. IMPORTANT! Print out page to scan. Do not scan on screen. *Default Scan to Enable Symbologies Scan to Disable *Factory Reset Configures the CHS to revert all settings to factory defaults. - Page 25 www.ime.de Scan to Enable Symbologies Scan to Disable Aiming Beam Makes an aiming beam appear when the CHS trigger button is pressed. Center Decoding When enabled, the CHS reads only the barcode that the scanner is aimed at. Helpful for barcodes positioned close together.
- Page 26 www.ime.de Scan to Enable Symbologies Scan to Disable Decode in Bright Environ- ment Enables the CHS to scan 1D and 2D barcodes in bright environment. Decode on Reflective Surface Enables the CHS to decode 1D and 2D barcodes printed on shiny surfaces ime mobile solutions GmbH •...
- Page 27 www.ime.de ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • +49 9401 9333-0 • info@ime.de • www.ime.de...
