Socket 7 Series User Manual

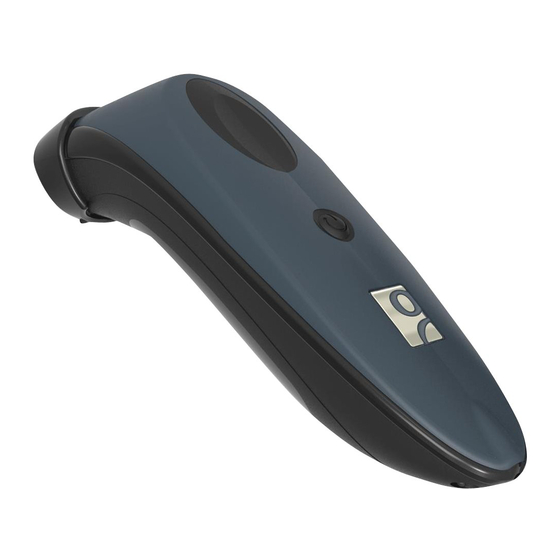

Cordless hand scanner
Hide thumbs Also See for 7 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Cordless Hand Scanner Series 7
®
with Bluetooth
Featuring a Bluetooth enabled bar code scanner and SocketScan
software for wirelessly adding bar code scanning to Bluetooth
enabled mobile computers running:
•
Windows Mobile 2003/2003SE
•
Palm OS 5.2 or later
•
Windows XP or XP Tablet Edition
User's Guide
Wireless Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket 7 Series

Summary of Contents for Socket 7 Series

  • Page 1 Cordless Hand Scanner Series 7 ® with Bluetooth Wireless Technology Featuring a Bluetooth enabled bar code scanner and SocketScan software for wirelessly adding bar code scanning to Bluetooth enabled mobile computers running: • Windows Mobile 2003/2003SE • Palm OS 5.2 or later •...

  • Page 2: Copyright Notice

    July 2005 Copyright Notice Copyright © 2005 Socket Communications, Inc. All rights reserved. Socket, the Socket logo and Mobility Friendly are registered trademarks of Socket Communications, Inc. Cordless Hand Scanner with Bluetooth Wireless Technology is a trademark of Socket Communications, Inc. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A.

  • Page 3: Table Of Contents

    STEP 3: Uninstall Other Scanning Software STEP 4: Install the Software STEP 5: Configure Scanner Settings STEP 6: Connect Scanner to Pocket PC via Bluetooth STEP 7: Scan Data into Your Application OPTIONAL: Select Symbologies OPTIONAL: Configure Prefix/Suffixes OPTIONAL: Run Scan Demo...
  • Page 4 APPENDICES A | SPECIFICATIONS B | SAFETY AND USAGE TIPS C | BAR CODE LABEL SPECIFICATIONS D | ENABLING OR DISABLING SYMBOLOGIES E | DECODE ZONE F | TROUBLESHOOTING G | TECHNICAL SUPPORT LIMITED WARRANTY REGULATORY COMPLIANCE...

  • Page 5: Introduction

    If you need to collect bar coded data but don't want to be tied to your mobile or desktop computer, Socket's Cordless Hand Scanner (CHS) Series 7 with Bluetooth wireless technology is just what you're looking for. This innovative device combines the power of laser bar code scanning with the...

  • Page 6: About Combining Scanning With Bluetooth

    About Combining Scanning with Bluetooth The Cordless Hand Scanner represents an optimal combination of proven laser bar code scanning technology and state-of-the-art Bluetooth connectivity. Because of the problems inherent in the intermittent storage of scanned data in on-board memory if the Bluetooth connection is lost, the CHS is designed to operate only when connected to the host, with the powerful Class 1 radio providing the maximum possible connection range.

  • Page 7: System Requirements, Package Contents

    • Any of the following Bluetooth stacks: − Socket Drakar v1.4 (from Socket SDIO and CF Connection Kits) − IVT BlueSoleil v1.4.7 or later (from Socket CF Connection Kit with Adapter or Socket Class 1 USB Adapter) − Widcomm v1.4 −...

  • Page 8: Product Registration, Hardware Features

    Product Registration Socket highly recommends that all customers register their Socket products. Product registration is required for technical support. Register online at: www.socketcom.com/prodreg Hardware Features Rechargeable Battery and AC Adapter Recharge the internal battery by using the included AC adapter. The adapter rating is 5V, 2A, positive pole center.
  • Page 9 Status Indicator LED LED Activity 1 blink per second Bluetooth Status (Blue) 1 blink per 5 seconds Good Read Green (Green) 1 blink per second Battery Status Solid red (Red) Off when connected to charger Status Indicator Beeps The scanner beeps to signal the Bluetooth connection status. Optionally, you can also set the scanner to beep every time it successfully scans data and transmits it to the host device.

  • Page 10: Setup For Windows Mobile

    STEP 3: Uninstall other scanning software. STEP 4: Install the software. STEP 5: Configure scanner settings. STEP 6: Connect scanner to Pocket PC via Bluetooth. STEP 7: Scan data into your application. OPTIONAL: • Select symbologies. • Configure prefix/suffixes. • Run Scan Demo application.

  • Page 11: Step 2: Charge The Scanner

    6. In the confirmation screen, click OK. 7. A screen will ask if you also want to remove the software from the host PC. If desired, click NO to keep a copy of the software on the host PC that can later be re-installed onto a Pocket PC.

  • Page 12: Step 4: Install The Software

    STEP 4: Install the Software 1. Use ActiveSync and a serial/Ethernet/USB cable or cradle to make an active connection between the mobile computer and a host PC. 2. Insert the installation CD into your host PC. 3. Use My Computer or Windows Explorer to access your CD-ROM drive. In the CD, click on SETUP.EXE.
  • Page 13 5. In the File Download screen click Run. 6. If a Security Warning screen appears, click Run. 7. The SocketScan for Windows CE Setup Program will begin. Follow the instructions on your screen to install the software. 8. When software installation is complete, disconnect the Pocket PC from the host PC.

  • Page 14: Step 5: Configure Scanner Settings

    STEP 5: Configure Scanner Settings 1. Start the Socket CHS configuration utility. Tap Start | Settings | System | Socket CHS. 2. In the General screen, check the box Enable Socket CHS Support. 3. In the Port configuration field, select the Bluetooth hardware that you are using with your Pocket PC.
  • Page 15 Microsoft: You must assign the CHS as your favorite. Tap on the Favorite button to initiate a Bluetooth device search. When the CHS is found, select it from the list and tap OK. 4. Tap on the Scanner tab. Enter the following settings: CHAPTER 2: SETUP FOR WINDOWS MOBILE...
  • Page 16 • Trigger Operation: − Scan always: Select if you would like the CHS to scan whether or not it has a Bluetooth connection to the host device. − Scan only when connected to host: Select if you would like the CHS to detect a Bluetooth connection to the host device before it scans.

  • Page 17: Step 6: Connect Scanner To Pocket Pc Via Bluetooth

    STEP 6: Connect Scanner to Pocket PC via Bluetooth 1. Turn on the Cordless Hand Scanner. Press the small power button for five seconds, until you see the LED turn blue. The LED should blink blue once every second to show that the Bluetooth radio is on but not connected. If the LED begins blinking red, the battery needs to be recharged.
  • Page 18 3. Start SocketScan. Tap Start | Programs | SocketScan. 4. The SocketScan icon should appear in the task tray Today screen), indicating that your device is not currently connected to the CHS. Tap on the icon. In the pop-up menu, select Connect CHS. Your Pocket PC cannot connect to the CHS if another device is assigned as the favorite/default Bluetooth serial device.
  • Page 19 The Cordless Hand Scanner will appear as Socket CHS [xxxxxx], where the characters in brackets are the last 6 characters of the scanner’s Bluetooth MAC address. Socket stack If multiple Cordless Hand Scanners were detected, identify yours by checking the MAC address printed on a label in the battery compartment.
  • Page 20 7. Your device will automatically connect to the CHS. If a passkey is requested, enter 1234. To indicate the connection, the CHS will beep once, and the SocketScan icon will change to show an image of the scanner. If the Pocket PC suspends or the CHS is taken out of range, the Bluetooth connection will be lost.

  • Page 21: Step 7: Scan Data Into Your Application

    STEP 7: Scan Data into Your Application 1. Start the Windows application that you want to receive the data (e.g., Excel, Notepad, etc.). Make sure a document or spreadsheet is open. 2. Press the trigger button and scan the code. For example, try this bar code: When data is read and transmitted to the host, the laser will turn off.

  • Page 22: Optional: Select Symbologies

    OPTIONAL: Select Symbologies The applet makes it quick and convenient to modify which symbologies you want the scanner to recognize. By default, the scanner is set to recognize nine of the most common symbologies. 1. Tap on the SocketScan icon. In the pop-up menu, tap Symbology Selector... 2.

  • Page 23: Optional: Configure Prefix/Suffixes

    OPTIONAL: Configure Prefix/Suffixes The SocketScan applet lets you specify prefix and/or suffix characters to be added automatically to the data you scan. This helps to further eliminate manual data entry. 1. Tap on the SocketScan icon. In the pop-up menu, tap Prefix/Suffix. You can configure prefix/suffixes whether or not the CHS is connected to your Pocket PC.

  • Page 24: Optional: Run Scan Demo

    OPTIONAL: Run Scan Demo Scan Demo makes it easy to determine the symbology, number of characters, and decoded data (in either ASCII or Hex) of any bar code supported by the scanner. This is especially useful if you encounter a bar code that the scanner will not decode by default.

  • Page 25: Optional: Configure Automatic Connections

    OPTIONAL: Configure Automatic Connections You can only configure automatic connections for Pocket PCs using either Socket’s SDIO/CF Connection Kit or a built-in Bluetooth stack. The first time you connect your Pocket PC to the CHS, you will be prompted to enable automatic connections.
  • Page 26 Built-in Bluetooth Stack: 1. Start the Socket CHS configuration utility. Tap Start | Settings | System | Socket CHS. 2. The General screen should already display the correct Bluetooth settings, already used to connect the Pocket PC to the CHS. Device information about the CHS you previously connected to should also be displayed.

  • Page 27: Setup For Palm

    This chapter explains how to install and use the Cordless Hand Scanner (CHS) with a Bluetooth enabled device running Palm OS 5.2 or later. Setup Summary STEP 1: Install batteries and attach tether. STEP 2: Charge the scanner. STEP 3: Uninstall other scanning software. STEP 4: Install the software.

  • Page 28: Step 2: Charge The Scanner

    STEP 2: Charge the Scanner Use the included AC adapter to charge the Cordless Hand Scanner. The scanner’s NiMH batteries must be charged for at least 4 hours before the first use. The Battery Status LED will emit a solid red light while charging, and turn off when the batteries are fully charged.

  • Page 29: Step 4: Install The Software

    STEP 4: Install the Software 1. Use HotSync and a serial/Ethernet/USB cable or cradle to connect your device to a host PC. 2. Insert the installation CD into your host PC. 3. Use My Computer or Windows Explorer to access your CD-ROM drive. In the CD, click on SETUP.EXE.
  • Page 30 5. In the File Download screen click Run. 6. If a Security Warning screen appears, click Run. 7. The SocketScan Installation program will begin. Follow the instructions on your screen to install the software. 8. When software installation is complete, disconnect the device from the...

  • Page 31: Step 5: Connect Scanner To Pda Via Bluetooth

    STEP 5: Connect Scanner to PDA via Bluetooth 1. Turn on the Cordless Hand Scanner. Press the small power button for five seconds, until you see the LED turn blue. The LED should blink blue once every second to show that the Bluetooth radio is on but not connected.
  • Page 32 Bluetooth MAC address. If multiple Cordless Hand Scanners were detected, identify yours by checking the MAC address printed on a label in the battery compartment. 7. Your device will connect to the CHS. If a passkey is requested, enter 1234.
  • Page 33 8. When the scanner connects to your device, the CHS will beep once. The main screen of SocketScan will also indicate that the scanner is enabled, and the Configure, Symbologies, and Test buttons will appear at the bottom of the screen. If the PDA suspends, the CHS will automatically re-connect once you turn on the PDA again.

  • Page 34: Step 6: Scan Data Into Your Application

    STEP 6: Scan Data into Your Application 1. Start the Palm application that you want to receive the data (e.g., Memo). Make sure a document or spreadsheet is open. Note: You cannot scan data into Palm Note Pad, because it is a graphics-based program.

  • Page 35: Optional: Configure Scan Settings

    OPTIONAL: Configure Scan Settings 1. Make sure the main screen of SocketScan reports that the CHS is enabled. Tap Configure. You can configure prefix/suffixes whether or not the CHS is connected to your device. 2. The Configure screen will appear. Enter any settings, as desired: •...
  • Page 36 • Insert Special: First tap in the Prefix or Suffix field to indicate where you would like to enter special data, such as a date stamp, time stamp, tab, etc. Then tap on the Insert Special drop-down menu and select the type of special data to enter. •...

  • Page 37: Optional: Select Symbologies

    OPTIONAL: Select Symbologies The feature makes it easy to modify which symbologies you want the scanner to recognize. By default, the scanner is set to recognize eight of the most common symbologies. 1. In the main screen of SocketScan, tap Symbologies. 2.

  • Page 38: Optional: Test Bar Codes

    OPTIONAL: Test Bar Codes SocketScan includes a Test feature that makes it easy to determine the symbology, number of characters, and decoded data (in either ASCII or Hex) of any bar code supported by the scanner. This is especially useful if you encounter a bar code that the scanner will not decode by default.

  • Page 39: Setup For Windows Xp

    STEP 3: Uninstall other scanning software. STEP 4: Install the software. STEP 5: Connect scanner to computer via Bluetooth. STEP 6: Configure scanner settings. STEP 7: Scan data into your application. OPTIONAL: • Assign sound and prefix/suffixes. • Assign a trigger button.

  • Page 40: Step 2: Charge The Scanner

    STEP 2: Charge the Scanner Use the included AC adapter to charge the Cordless Hand Scanner. The scanner’s NiMH batteries must be charged for at least 4 hours before the first use. The Battery Status LED will emit a solid red light while charging, and turn off when the batteries are fully charged.

  • Page 41: Step 4: Install The Software

    STEP 4: Install the Software 1. Insert the installation CD into your host PC. 2. Use My Computer or Windows Explorer to access your CD-ROM drive. In the CD, click on SETUP.EXE. 3. Follow the instructions on your screen to begin the installation process for Windows XP.
  • Page 42 4. In the File Download screen click Run. 5. If a Security Warning screen appears, click Run. 6. The SocketScan for Windows XP Setup program will begin. Follow the instructions on your screen to install the software. Note: Screens for Internet Explorer 6.0 are shown.

  • Page 43: Step 5: Connect Scanner To Computer Via Bluetooth

    STEP 5: Connect Scanner to Computer via Bluetooth The very first time you connect the CHS to your computer, you must manually connect via your Bluetooth software. Afterwards, you will be able to connect directly from SocketScan by right-clicking on the SocketScan icon and selecting Connect CHS.
  • Page 44 2. Follow the appropriate instructions for your Bluetooth hardware and software to discover and connect to the CHS. Socket Connection Kit with BlueSoleil software: • Insert the Socket card into your computer, using a CF-to-PC Card adapter, or insert the Class 1 USB Adapter to the USB port. •...
  • Page 45 WIDCOMM: To determine if your computer uses a WIDCOMM Bluetooth stack, check the stack version in your Bluetooth software. Refer to the documentation for your Bluetooth hardware/software for instructions on discovering and connecting to the CHS. Many Bluetooth USB adapters use the WIDCOMM stack. Although the name may be different, the Bluetooth manager screen will resemble the one shown below.
  • Page 46 Microsoft Windows XP Service Pack 2: Refer to the documentation for your Bluetooth hardware/software for instructions on discovering and connecting to the CHS. • Use the Add Bluetooth Device Wizard to discover and connect to the Cordless Hand Scanner. Click on the Bluetooth icon in the task tray. In the pop-up menu, click Add a Bluetooth Device.
  • Page 47 Other Bluetooth Hardware/Software: Refer to the documentation for your Bluetooth hardware/software for instructions on discovering and connecting to the CHS. Although the CHS may operate correctly with other Bluetooth stacks, Socket has only confirmed compatibility with the Socket, Widcomm, and Microsoft SP2 Bluetooth stacks. •...

  • Page 48: Step 6: Configure Scanner Settings

    STEP 6: Configure Scanner Settings 1. Start SocketScanXP by clicking on the icon on your desktop. Otherwise, you can click: Start | All Programs | SocketScanXP | SocketScanXP. 2. The SocketScan icon should appear in the task tray at the bottom of your screen, indicating that your computer has not detected a scanner.
  • Page 49 • Widcomm: Select if your computer uses the Widcomm Bluetooth stack. Many third-party USB Bluetooth adapters use the Widcomm stack. The COM Port field will not appear for Widcomm. • Microsoft SP2: Select if your computer uses Microsoft’s Windows XP Service Pack 2 Bluetooth stack. In the COM Port field, select the Outgoing COM port number assigned to the CHS.
  • Page 50 Power Off mode box to have the CHS remain on even when 20 minutes have elapsed without a Bluetooth connection. 6. After modifying any settings, click OK. 7. As prompted, exit and restart SocketScan to have the changes take effect. 8. Right-click the SocketScan icon at the bottom of the screen and click...
  • Page 51 After you configure the correct Bluetooth hardware settings in SocketScan, the Connect CHS menu option allows you to connect to the CHS directly from SocketScan, instead of manually connecting via your Bluetooth software. The Connect CHS option will not appear unless you checked the box Enable CHS Support in the SocketScanXP settings.

  • Page 52: Step 7: Scan Data Into Your Application

    STEP 7: Scan Data into Your Application 1. Start the Windows application that you want to receive the data (e.g., Excel, Notepad, etc.). Make sure a document or spreadsheet is open. 2. Press the trigger button and scan the code. For example, try this bar code: When data is read and transmitted to the host, the laser will turn off.
  • Page 53 3. After a successful scan, data should appear in your document. For example, after you scan the code above into an Excel spreadsheet, data should appear in the first cell. Wait for the “Good Scan” indication before you scan another bar code.

  • Page 54: Optional: Assign Sound And Prefix/Suffix Settings

    OPTIONAL: Assign Sound and Prefix/Suffix Settings You can configure these settings whether or not the CHS is connected to your computer. 1. In SocketScanXP Settings, click on the General tab. 2. Adjust any settings as desired: Good read notification sound: Select which sound you would like your computer to use to indicate good readings of data.

  • Page 55: Optional: Configure Advanced Bluetooth Settings

    OPTIONAL: Configure Advanced Bluetooth Settings The SocketScanXP utility enables you configure advanced Bluetooth settings of the CHS, including the Bluetooth friendly name and security settings. 1. In SocketScanXP Settings, click on the CHS tab. The Trigger and Barcodes tabs will only appear if you are connected to the CHS.
  • Page 56 Read the message and click OK. Turn the CHS off and back on again. 7. When you return to the CHS Advanced Settings screen, click Close. 8. In the SocketScanXP Settings screen, click OK.

  • Page 57: Optional: Assign A Trigger Button

    OPTIONAL: Assign a Trigger Button The SocketScanXP utility enables you to assign one of your computer’s function keys to trigger the CHS. 10. In SocketScanXP Settings, click on the Trigger tab. The Trigger and Barcodes tabs will only appear if you are connected to the CHS.

  • Page 58: Optional: Select Symbologies

    OPTIONAL: Select Symbologies The SocketScanXP utility makes it easy to modify which symbologies you want the scanner to recognize and decode. 1. In SocketScanXP Settings, click on the Barcodes tab. The Trigger and Barcodes tabs will only appear if you are connected to the CHS.

  • Page 59: Optional: View Version Information

    OPTIONAL: View Version Information 1. In SocketScanXP Settings, click on the About tab. The Trigger and Barcodes tabs will only appear if you are connected to the CHS. 2. View the control panel applet (CPL) and CHS firmware version information. Click OK.

  • Page 60: Appendix A Specifications

    Appendix A Specifications Physical Characteristics Size: 125l x 31h x 35w (mm) 4.9l x 1.2h x 1.4w (in.) Total Mass: approx. 90 g (0.2 lb) Power Source: Two AAA NiMH rechargeable batteries Expected Battery Life with Normal Operation (connected via Bluetooth and minimum 2,000 bar code scans): 8 hours Operating Temp: 32 to 120°F (0 to 50°C) Operating System Support:...
  • Page 61 About Bluetooth Range The Cordless Hand Scanner features a powerful Class 1 Bluetooth radio to provide the maximum possible range. As with all wireless technologies, the connection range can vary widely depending on many factors such as the brand and placement of the host device, the type and size of physical obstacles and the presence and activity level of competing radio transmissions.

  • Page 62: Appendix B Safety And Usage Tips

    Appendix B Safety and Usage Tips About Bluetooth and Health Bluetooth wireless technology allows you to use short-range radio signals to connect a variety of devices, such as bar code scanners, mobile phones, Pocket PCs, notebook computers, printers, LAN access points, and many other devices at home or work.
  • Page 63 Efficient Use For optimum performance, please make sure that there is no metal surrounding your Cordless Hand Scanner. Driving RF energy may affect some electronic systems in motor vehicles, such as car stereo, safety equipment, etc. Check with your vehicle manufacturer to be sure that the Cordless Hand Scanner will not affect the vehicle’s electronics.

  • Page 64: Appendix C Bar Code Label Specifications

    Appendix C Bar Code Label Specifications All bar code symbols/labels should satisfy the appropriate AIM Uniform Symbology Specification. Background Substrate: The bar code symbol should be printed on material (media) that is reflective and has a matte (not glossy) finish. A background diffuse reflectance of at least 70% to 80% is desirable for optimum contrast.

  • Page 65: Appendix D Enabling Or Disabling

    Appendix D Enabling or Disabling The Cordless Hand Scanner is pre-set to automatically detect and decode (auto-discriminate) the most common bar code symbologies. To enable or disable symbologies, simply use SocketScan’s Symbology Selector. Notes: • The length of some symbologies will change after Symbology Selector is used.
  • Page 66 Table 2. Other Symbology Parameters Symbology Parameters UPC/EAN/JAN Supplementals Transmit Check Digit Bookland EAN Decode UPC/EAN Supplementals UPC/EAN Supplemental Redundancy Transmit UPC-A Check Digit Transmit UPC-E Check Digit Transmit UPC-E1 Check Digit Convert UPC-E to A Convert UPC-E1 to A EAN-8 Zero Extend UPC/EAN Security Level UPC/EAN Coupon Code...
  • Page 67 For more information on bar codes, symbologies, labels or other bar code related topics, visit any of the following web sites: a. www.aimglobal.org/technologies/barcode/ b. www.aimglobal.org/aimstore/stackedsymbologies.htm c. www.adams1.com d. www.bizfonts.com e. www.barcode-us.com/info_center/upc.htm (UPC Codes) f. www.barcode-us.com/info_center/bookinfo.htm (Bookland EAN) g. www.dataid.com/bcsymbology.htm h. www.aaabarcodes.com i.

  • Page 68: Appendix E Decode Zone

    Appendix E Decode Zone The decode zones for the Cordless Hand Scanner is shown below. The minimum element width (“X Dimension” or bar code “size”) is the width in thousandths of an inch (mils) of the narrowest element (bar or space) in the symbol.

  • Page 69: Appendix F Troubleshooting

    Appendix F Troubleshooting For help on SocketScan, tap Start | Help on a Pocket PC, or tap on the icon on a Palm device. SYMPTOM: I get the “No Scanner Detected” Windows device and can’t trigger the laser or scan any bar codes. POSSIBLE REASON Your mobile computer is not connected to the Cordless Hand...
  • Page 70 SYMPTOM: While scanning with the CHS, I turned off the Pocket PC, or my Pocket PC entered suspend mode. Now my Pocket PC won’t turn on again. POSSIBLE REASONS This is a known problem with the Widcomm stack (built into HP h221X iPAQ Pocket PCs with ROM version 1.00).

  • Page 71: Appendix G Technical Support

    Appendix G Technical Support If you have trouble installing or using the Cordless Hand Scanner with Bluetooth Wireless Technology, contact Socket’s technical support department for assistance. IMPORTANT! To obtain personal assistance from a Socket technical support engineer, you must first register your product online at www.socketcom.com/prodreg.

  • Page 72: Limited Warranty

    Limited Warranty Socket Communications Incorporated (Socket) warrants this product against defects in material and workmanship, under normal use and service, for the following period from the date of purchase: Cordless Hand Scanner: Two years Incompatibility is not a defect covered by Socket’s warranty. During the warranty period, Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center.

  • Page 73: Limited Software Warranty

    Limited Software Warranty LIMITED WARRANTY. SOCKET warrants that the original disk or CD ROM is free from defects for 90 days from the date of delivery of the SOFTWARE. CUSTOMER REMEDIES. SOCKET’S entire liability and your exclusive remedy shall be, at SOCKET’S option, either (a) return of the price paid or (b) replacement of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which is returned to SOCKET with a copy of your receipt.

  • Page 74: Regulatory Compliance

    Regulatory Compliance The Socket Cordless Hand Scanner is designed to be compliant with the rules and regulations in locations where they are sold and will be labeled as required. This product is type approved — users are not required to obtain license or authorization before using.
  • Page 75 This equipment generates and radiates radio-frequency energy. To comply with FCC RF exposure compliance requirements, the following antenna installation and device operating configurations must be satisfied: (1) Users are not permitted to make changes or modify the system in any way, and (2) connecting external antennas to the Cordless Hand Scanner is prohibited.
  • Page 76 CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: Applicable Directives: •...
  • Page 77 Battery Warning: • Your device contains a rechargeable NiMH battery. Never throw the battery into a fire, as that could cause the battery to explode. • Never short-circuit the battery by bringing the terminals in contact with another metal object. This could cause personal injury or a fire, and could also damage the battery.
  • Page 78 © Socket Communications, Inc. 7/2005 Printed in U.S.A.
