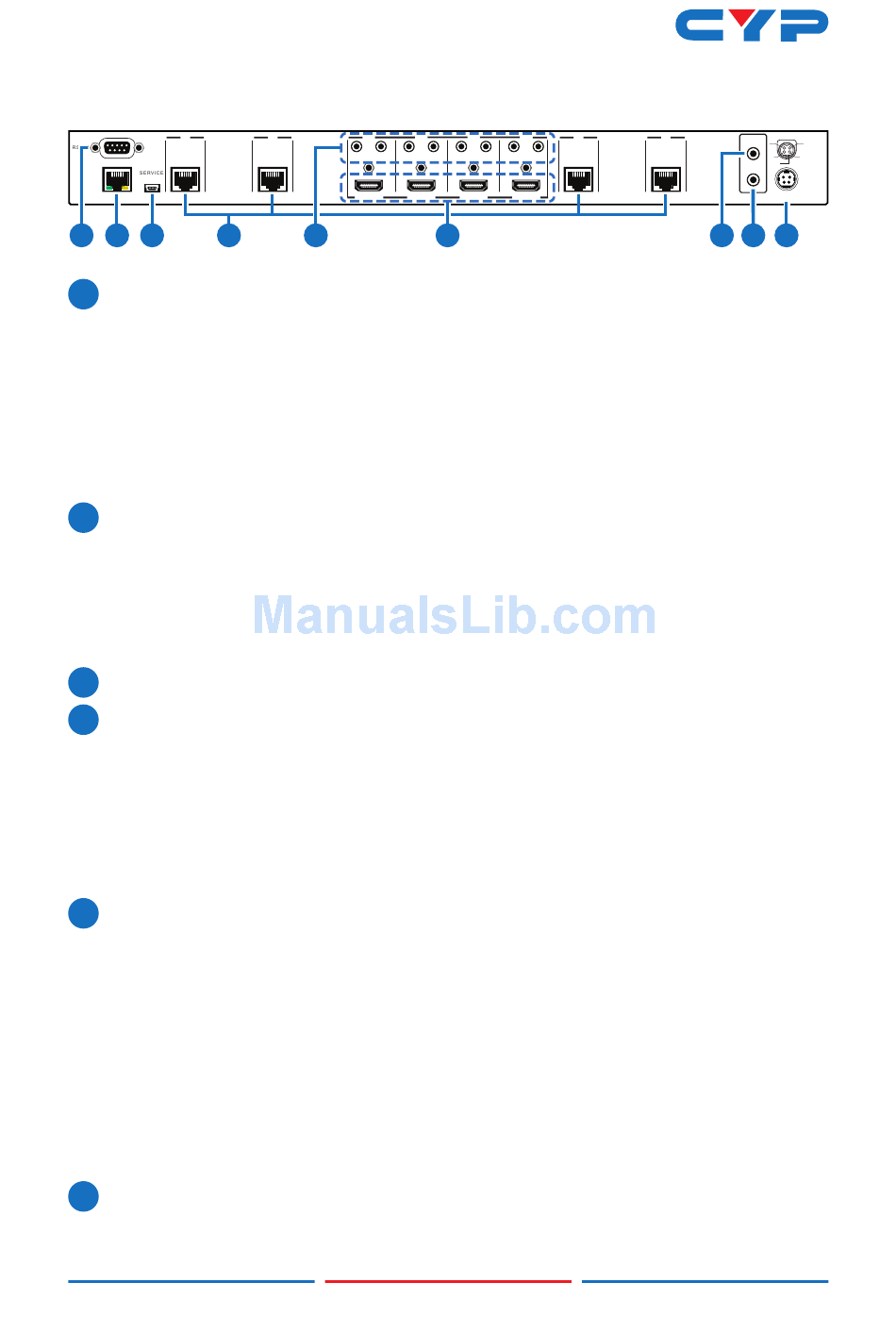

6.2 Rear Panel

A
CAT5e/6/7 OUT
IP &
ETHERNET
1 2 3 4
1
RS-232: Connect to a PC or RS-232 control system with a D-sub 9-pin
cable for the transmission of RS-232 commands.
Note: This unit has a routable RS-232 function that can route
commands sent to the matrix to all receivers or accept matrix
control commands from connected receivers. In order for the
receivers to send commands to control the matrix, a null modern
cable/adaptor is required (see Section 6.7 for details).
2
IP & ETHERNET: This port is the link for Telnet or WebGUI controls,
connect to an active Ethernet network with an RJ45 terminated
cable (see Sections 6.8 and 6.9 for details).
Warning: Please do not connect more than one active Ethernet link
to the Matrix system.
3
SERVICE: Manufacturer use only.
4
CAT5e/6/7 OUT A~D: Connect the CAT outputs to the CAT input
port of compatible receiver units with a single CAT5e/6/7 cable
for HDMI Audio/Video, IR/RS-232 control signal transmission and
Ethernet/LAN sharing (dependent on receiver capabilities).
Warning: Please do not connect the CAT5e/6/7 output of the matrix
to the receiver's LAN port.
5
IR IN 1~4: Connect the IR Extenders for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the IR
extender. The signal received will be transmitted from the IR OUT of
the selected receiver unit.
IR OUT 1~4: Connect to the IR Blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled. It will transmit the IR signal received from IR extenders
connected to the matrix or receivers according to the selected
input.
6
HDMI IN 1~4: Connect to HDMI/DVI source devices such as DVD
players or Set-top boxes with HDMI cables or DVI to HDMI cables.
