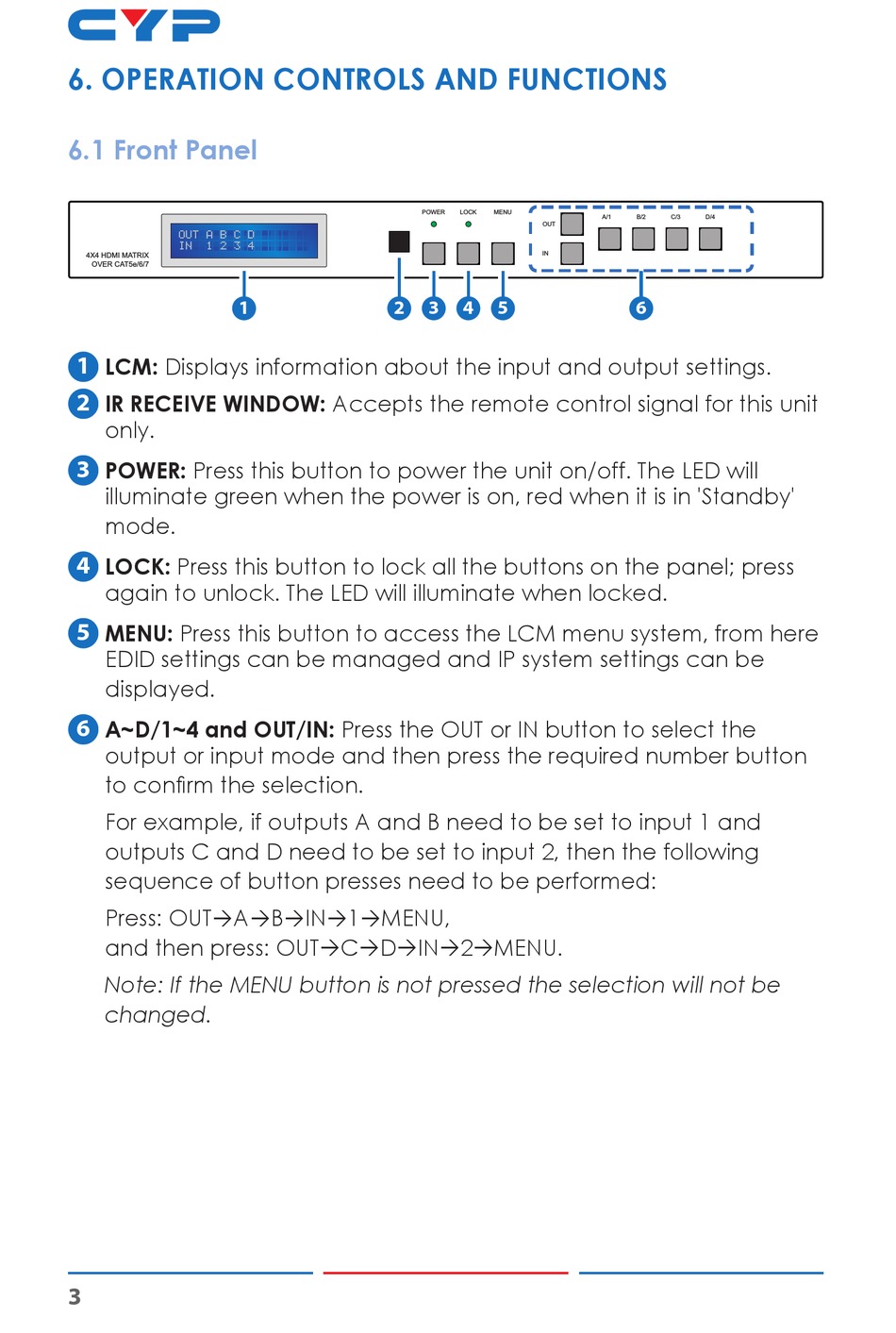

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

4X4 HDMI MATRIX
OVER CAT5e/6/7
1
LCM: Displays information about the input and output settings.
2 IR RECEIVE WINDOW: Accepts the remote control signal for this unit
only.
3
POWER: Press this button to power the unit on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
4
LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate when locked.
5
MENU: Press this button to access the LCM menu system, from here
EDID settings can be managed and IP system settings can be
displayed.
6
A~D/1~4 and OUT/IN: Press the OUT or IN button to select the
output or input mode and then press the required number button
to confirm the selection.
For example, if outputs A and B need to be set to input 1 and
outputs C and D need to be set to input 2, then the following
sequence of button presses need to be performed:
Press: OUTABIN1MENU,
and then press: OUTCDIN2MENU.
Note: If the MENU button is not pressed the selection will not be
changed.
3
1 2
POWER LOCK MENU
OUT
IN
3 4 5
A/1 B/2 C/3 D/4
6
