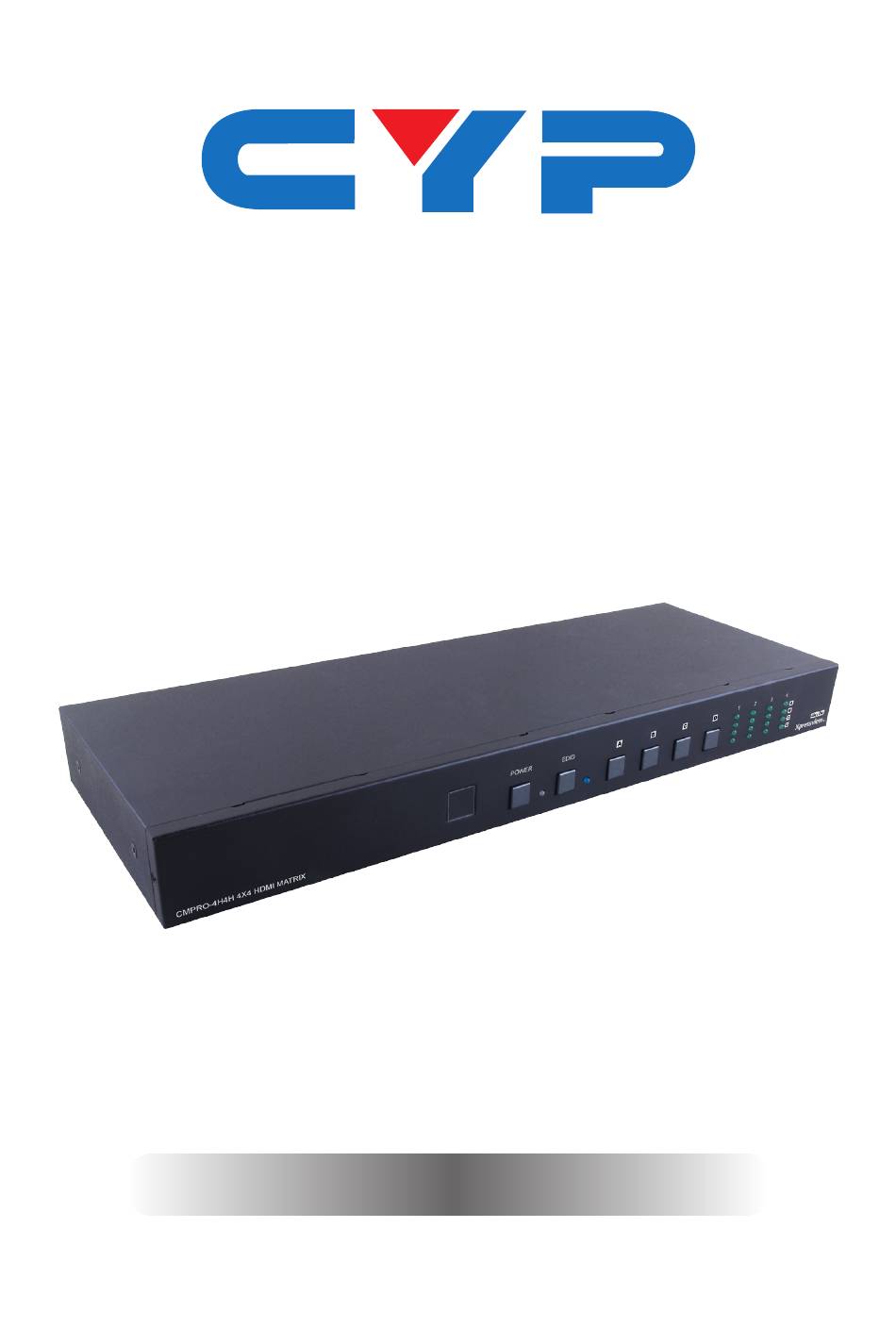

- Page 1 CMPRO-4H4H/4H2H 4 by 4/4 by 2 HDMI Matrix Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 D-Sub 9 Pin Definitions .....5 6.5 RS-232 Protocols .......6 7. -
Page 6: Introduction
1. INTRODUCTION The 4 by 4/4 by 2 HDMI matrix with 4kx2k supported which allows HDMI signal from any of its four sources to be routed to and displayed on any of its four/two connected HDMI displays simultaneously. It supports 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. -
Page 7: Operation Controls And Functions

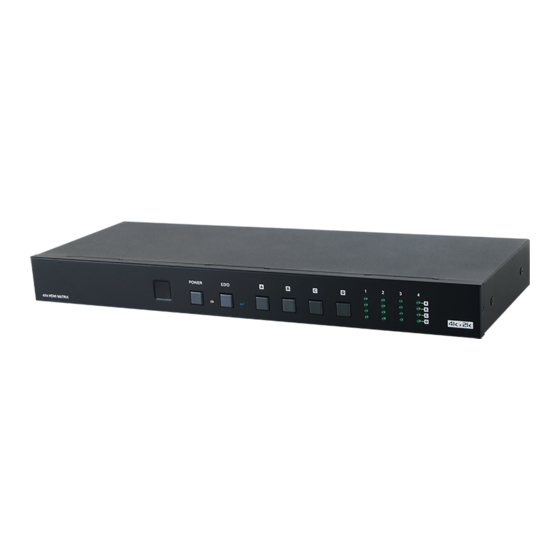

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER EDID CMPRO-4H4H 4X4 HDMI MATRIX IR receiver window accepts the remote control signal of this device. POWER & LED Press this button to power the device on/off. The LED will illuminate when the power is on. -
Page 8: Rear Panel
6.2 Rear Panel INPUT OUTPUT IR IN RS232 ETHERNET POWER DC 5V SERVICE INPUT 1~4 Connect input source equipments such as DVD/Blu-ray players with HDMI cables. OUTPUT A~D Connect to HDMI 3D TV/display or monitor for both audio and video or moving/static graphic play. IR IN Connect the supplied IR extender (included in the package) or IR signal reception. -
Page 9: Remote Control
6.3 Remote Control POWER POWER Press this button to switch on or set to standby mode of the OUTPUT device. OUTPUT A 1~4 OUTPUT Press buttons 1~4 to selection the nominated input for output OUTPUT OUTPUT OUTPUT B 1~4 Press buttons 1~4 to selection the nominated input for output CR-33 OUTPUT C 1~4... -
Page 10: D-Sub 9 Pin Definitions
6.4 D-Sub 9 Pin Definitions CMPRO-4H4H/4H2H Remote Control Assignment Assignment Baud Rate: 19200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Rs-232 Protocols
6.5 RS-232 Protocols Command Description A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 C1~C4 Switch Output C to 1~4 D1~D4 Switch Output D to 1~4 ABC...1~ABC...4 Switch Output A B C... to 1~4 at the same time Power Off Power On I1~I4... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM 60° Blu-ray or Blu-ray or PS3 Player PS3 Player Blu-ray or Blu-ray or PS3 Player PS3 Player RS-232 Equipped PC or Notebook HDMI HDMI HDMI HDMI INPUT OUTPUT IR IN RS232 ETHERNET POWER DC 5V SERVICE HDMI HDMI with Ethernet... -
Page 13: Specifications
Chassis Material Metal Silkscreen Color Black Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F Relative Humidity 20 ~ 90% RH (non-condensing) Power Consumption 10.8w/ CMPRO-4H4H, w/ CMPRO-4H2H... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120926 MPM-CMPRO4H4H...
