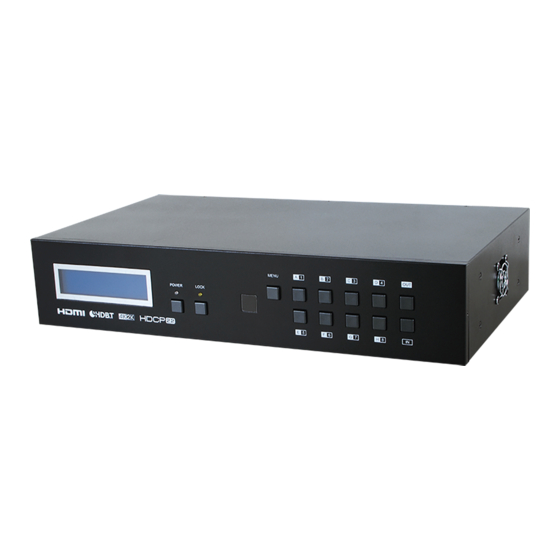

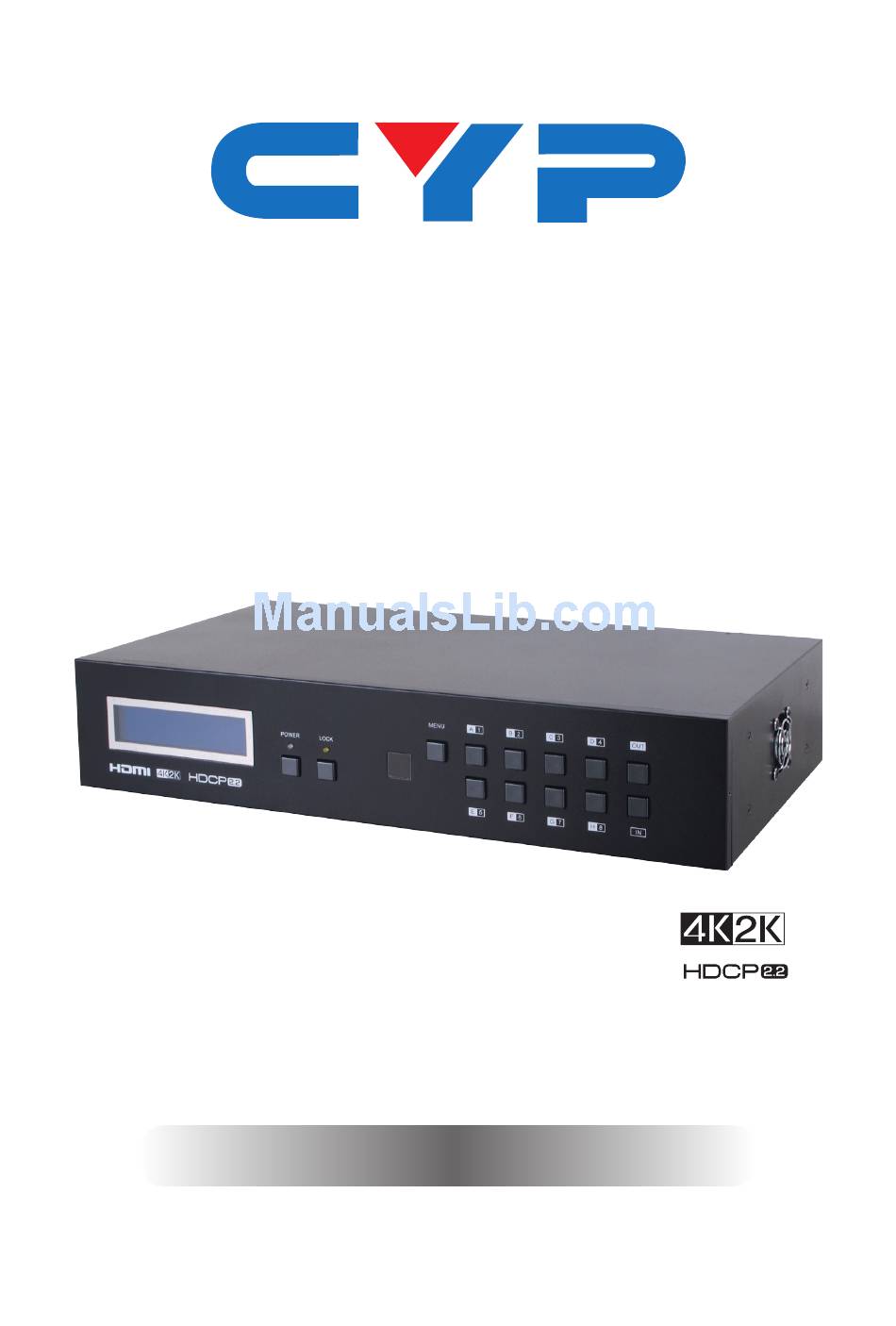

- Page 1 CMPRO-UA8H8HS 8×8 HDMI 4K UHD Matrix with HDCP 2.2 Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........5 6.5 IR Cable Pin Assignment....6 6.6 RS-232 Protocol .........6... -
Page 5: Introduction
1. INTRODUCTION The 8 by 8 HDMI 4K2K Matrix supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or WebGUI from eight high definition sources to eight outputs. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D content that can be displayed when connecting... -
Page 6: Features
5. FEATURES • HDMI with 4K2K supported, HDCP 2.2 and DVI compliant • Supports PC resolution up to WUXGA and HDTV resolution up to 4K2K(3840x2160@24/25/30 & 3840x2160@50/60_YUV420, 4096x2160 @24/25/30 & 4096x2160 @50/60Hz _YUV420) • Supports 3D signal bypass • Supports pass-through audio LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD and DTS-HD Master Audio •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK Displays the setting information of each input and output setting. POWER: Press this button to power the device on/standby. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 8: Rear Panel
6.2 Rear Panel HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDMI OUT DC 24V HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN CONTROL: This port is the link for Telnet and WebGUI controls, connect to an active Ethernet link with an RJ45 terminated cable (for further details, please refer to section 6.8 &... -
Page 9: Side Panel
6.3 Side Panel Fan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. -
Page 10: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Extender IR Signal Power Grounding 6.6 RS-232 Protocol MATRIX REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER Switch output A to input N. N=1~8 Switch output B to input N. N=1~8 Switch output C to input N. N=1~8 Switch output D to input N. N=1~8 Switch output E to input N. N=1~8 Switch output F to input N. -
Page 12: Telnet Control
6.8 Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 13 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 14: Webgui Control
6.9 WebGUI Control On a PC/Laptop which is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor or OSD menu) on the web address entry bar. The browser will display the device’s Switch, Data Routing, EDID Settings and System Settings. - Page 15 Click on 'EDID Settings' page to Setting EDID mode or update EDID. Click on 'System Settings' to control power on / off, Network status setting and reset to default settings. Note: It will need to click on save button once you finished network parameters setting.
-
Page 16: Connection Diagram
7. CONNECTION DIAGRAM HDTV HDTV HDTV IR Extender HDMI OUT HDMI OUT HDMI OUT HDMI OUT HDMI O HDMI IN HDMI IN HDMI IN HDMI IN HDMI RS-232 Wireless Router (with Internet Connection) HDMI Inputs Smartphone or RS-232 Equipped Tablet Device PC or Notebook DVD/Blu-ray Player Media Server... - Page 17 HDTV HDTV HDTV HDTV HDTV HDMI Outputs HDMI OUT HDMI OUT HDMI OUT HDMI OUT DC 24V HDMI IN HDMI IN HDMI IN HDMI IN Power Supply DVD/Blu-ray Player Media Server Satellite Receiver Set-top Box Satellite Receiver...
-
Page 18: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 8×HDMI, 1×IR (3.5mm), 1×RS-232 (9-pin D-sub), 1×Control (RJ-45), 1×USB (Service only) Video Resolutions 480i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV420) & VGA~WUXGA IR Frequency 30~50 kHz Baud Rate 115200 bps Output Ports 8×HDMI Power Supply 24 V/6.25 A DC (US/EU standards, CE/FCC/... -
Page 19: Supported Resolutions
8.2 Supported Resolutions Resolution Input Output 640×480@60 √ √ 720×480p@60 √ √ 720×576p@50 √ √ 800×600@60 √ √ 1024×768@60 √ √ 1280×720p@50 √ √ 1280×720p@60 √ √ 1280×1024@60 √ √ 1600×1200@60 √ √ 1920×1080i@50 √ √ 1920×1080i@60 √ √ 1920×1080p@24 √... -
Page 20: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Infrared Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce Blanking) - Page 21 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
