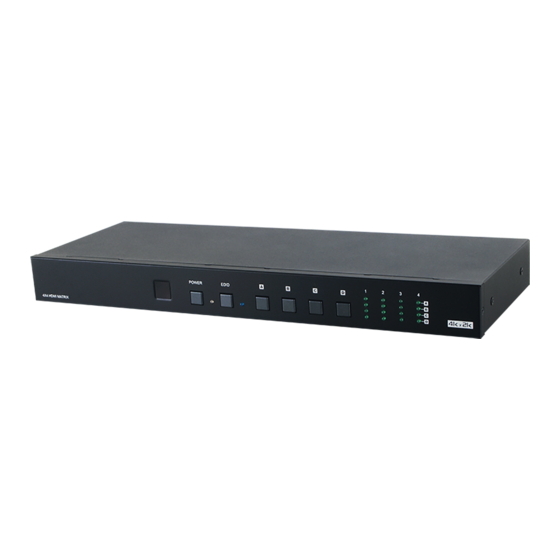

CMPRO-4H4H
4 by 4 HDMI Matrix
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMPRO-4H4H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CMPRO-4H4H

Summary of Contents for CYP CMPRO-4H4H

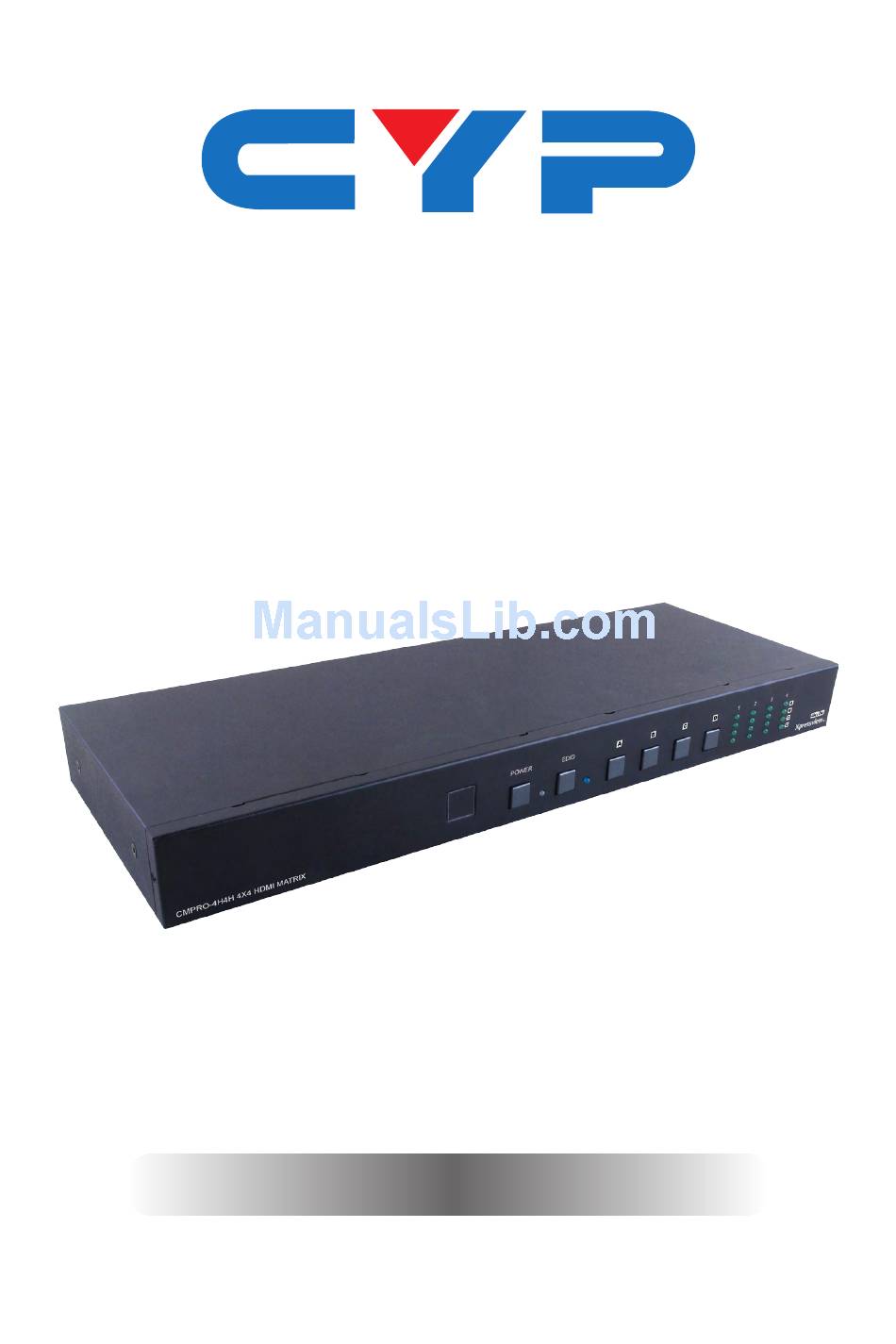

  • Page 1 CMPRO-4H4H 4 by 4 HDMI Matrix Operation Manual Operation Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 D-Sub 9-Pin Definitions .....5 6.5 IR Cable Pin Assignment....5 6.6 RS-232 Protocols .......6...

  • Page 5: Introduction

    1. INTRODUCTION The 4 by 4 HDMI matrix with 4Kx2K supported which allows HDMI signal from any of its four sources to be routed to and displayed on any of its four connected HDMI displays simultaneously. It supports 3D, Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications.

  • Page 6: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER EDID CMPRO-4H4H 4X4 HDMI MATRIX IR receiver window accepts the remote control signal of this device. POWER & LED Press this button to power the device ON/OFF. The LED will illuminate when the power is ON.

  • Page 7: Rear Panel

    6.2 Rear Panel OUTPUT INPUT IR IN RS232 CONTROL POWER DC 5V SERVICE INPUT 1~4 Connect input source equipments such as DVD/Blu-ray players with HDMI cables. OUTPUT A~D Connect to HDMI 3D TV/display or monitor for both audio and video or moving/static graphic play. IR IN Connect the supplied IR Extender (included in the package) for IR signal reception from the remote control included in the package.

  • Page 8: Remote Control

    6.3 Remote Control POWER POWER Press this button to switch ON or set to standby mode of the OUTPUT device. OUTPUT A 1~4 OUTPUT Press buttons 1~4 to select the nominated input for output A. OUTPUT OUTPUT B 1~4 OUTPUT Press buttons 1~4 to selection the nominated input for output OUTPUT C 1~4...

  • Page 9: D-Sub 9-Pin Definitions

    6.4 D-Sub 9-Pin Definitions CMPRO-4H4H Remote Control Assignment Assignment Baud Rate: 19200bps Data Bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.5 IR Cable Pin Assignment IR Extender IR Signal Power 3.3 V Grounding...

  • Page 10: Rs-232 Protocols

    6.6 RS-232 Protocols Command Description A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 C1~C4 Switch Output C to 1~4 D1~D4 Switch Output D to 1~4 ABC...1~ABC...4 Switch Output A B C... to 1~4 at the same time SETIP Setting IP SETNETMASK...

  • Page 11: Web Gui Control

    6.7 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address(get from RS-232's help command or use the default IP: 192.168.0.1) on the web address entry bar.
  • Page 12 Clicking on the 'Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time when any of the setting is changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.

  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM 60° Blu-ray or Blu-ray or PS3 Player PS3 Player Blu-ray or Blu-ray or PS3 Player PS3 Player RS-232 Equipped PC or Notebook HDMI HDMI HDMI HDMI INPUT OUTPUT IR IN RS232 CONTROL POWER DC 5V SERVICE HDMI HDMI with Active Network...

  • Page 14: Specifications

    8. SPECIFICATIONS Video Bandwidth 340Mbps /10.2Gbps Input ports 4 x HDMI, 1 x IR, 1 x RS-232, 1 x Control, 1 x Mini USB (for service only) Output ports 4 x HDMI Output Resolution 480i ~1080p, VGA~WUXGA & 4Kx2K@24/25/30Hz HDMI I/O Cable Distance 15m/8-bit, 10m/12-bit, 5m/4Kx2K Power Supply 5V/3.6A DC (US/EU standards, CE/FCC/UL...
  • Page 15 HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50 1920x1080p@60 1920x1200@60(RB) 3840x2160@24/25/30 4096x2160@24...

  • Page 16: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120926 MPM-CMPRO4H4H...
