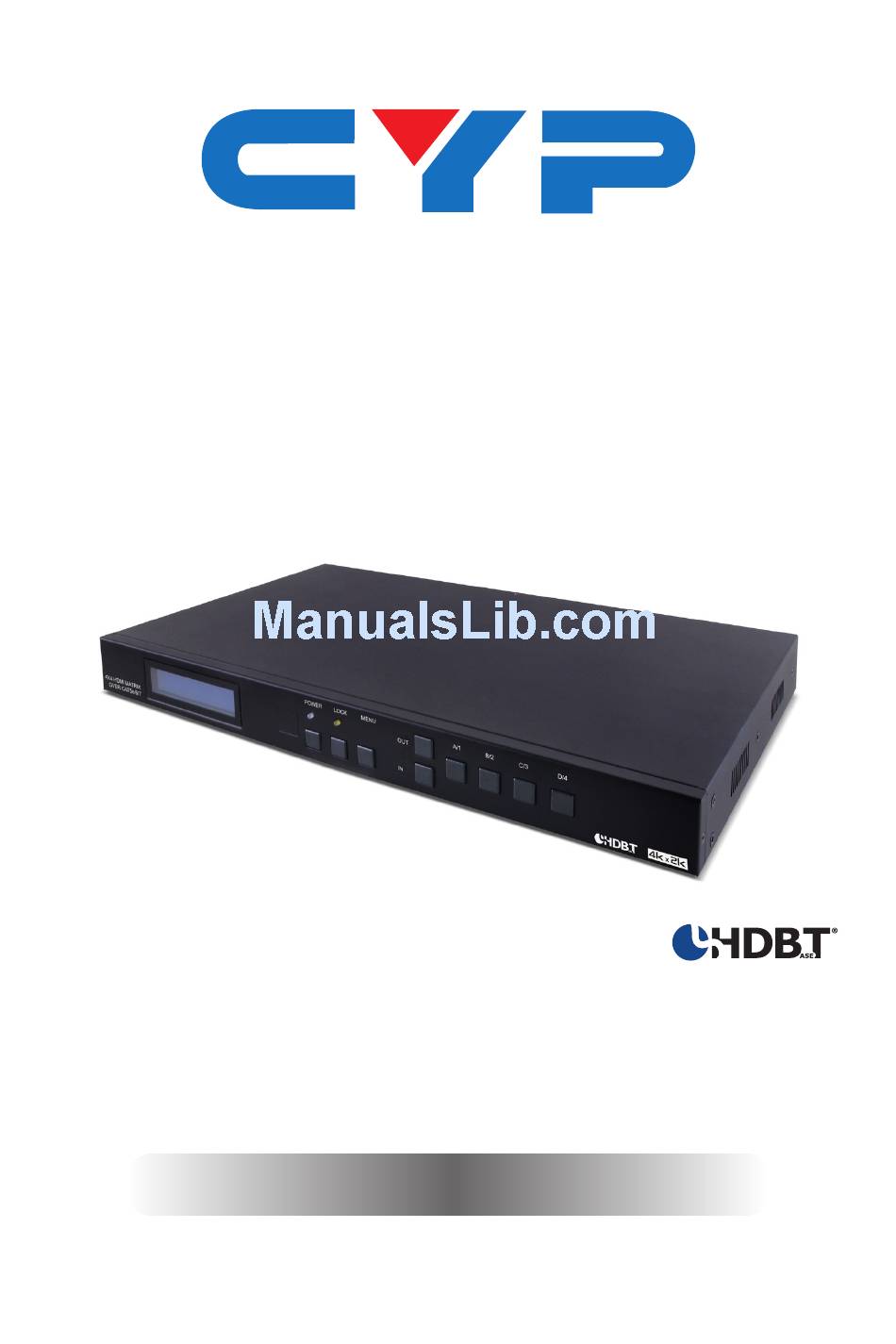

- Page 1 CMPRO-U4H4CVE 4×4 HDMI 4K over CAT5e/6/7 Matrix with LAN Serving Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 IR Cable Pin Assignment....6 6.5 RS-232 Pin Assignment .....6 6.6 RS-232 and Telnet Commands ..7... -
Page 6: Introduction
1. INTRODUCTION The 4 by 4 HDMI 4K UHD over CAT5e/6/7 Matrix supports the transmission of video (resolutions up to 4K2K and Full HD), multi- channel digital audio and control via IR, RS-232, Telnet or WebGUI from four high definition sources to four HDBaseT™ outputs over a single CAT5e/6/7 cable (up to 100m at 1080p and 70m at 4K2K) for each output. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV Receivers, connect with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 8: Operation Controls And Functions

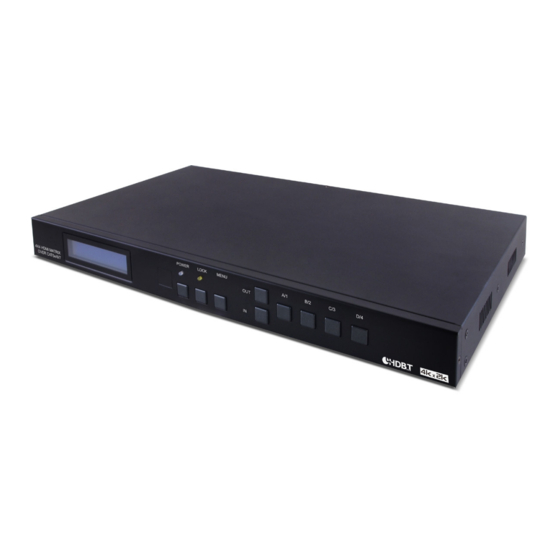

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LOCK MENU 4X4 HDMI MATRIX OVER CAT5e/6/7 LCM: Displays information about the input and output settings. IR RECEIVE WINDOW: Accepts the remote control signal for this unit only. POWER: Press this button to power the unit on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR IN IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IR OUT IR OUT IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IP & ETHERNET HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V... -
Page 10: Remote Control
ALL IR OUT: Connect an IR Blaster for IR signal transmission to the source/input location. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. It will transmit all IR signals received by any IR extenders connected to receiver units. ALL IR IN: Connect an IR Extender for IR signal reception. -
Page 11: Ir Cable Pin Assignment
6.4 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Grounding 6.5 RS-232 Pin Assignment MATRIX REMOTE CONTROL CONSOLE Assignment Assignment ► ◄ Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 12: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION A1~A4 Set output A to input 1~4 B1~B4 Set output B to input 1~4 C1~C4 Set output C to input 1~4 D1~D4 Set output D to input 1~4 AB…1~AB…4 Set output A~D to input 1~4 simultaneously SETIP <IP>... - Page 13 COMMAND DESCRIPTION UARTBAUD1~6 Set the UART Baud rate of all outputs to 1~6 (1=9600bps, 2=14400bps, 3=19200bps, 4=38400bps, 5=57600bps, 6=115200bps) UARTBAUD? Show the UART Baud rate of all outputs UARTSW1~4 Set the UART routing to output A, B, C or D and allow the matrix to send RS-232 commands to devices connected to the receivers UARTSW0...
-
Page 14: Rs-232 Uart Control
6.7 RS-232 UART Control Note: This command UARTSW0 allows RS-232 control of the Matrix. IR OUT IR IN IR OUT IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IR OUT IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IP &... -
Page 15: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'IP & ETHERNET' port) and the PC/Laptop are connected to the same active network. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 16 This will bring us into the device which we wish to control. Type "HELP" to list the available commands. Type "IPCONFIG" to show all IP configurations. To reset the IP, type "RSTIP" and to use a set static IP, type "SETIP" (For a full list of commands, see Section 6.7).
-
Page 17: Webgui Control
6.9 WebGUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type the unit's IP address on the web address entry bar. The browser will display the unit's status, control and user setting pages. -
Page 18: Connection Diagram
7. CONNECTION DIAGRAM Receiver Receiver Receiver Receiver RS-232 Out RS-232 Out RS-232 Out RS-232 Out HDMI Out HDMI Out HDMI Out HDMI Out CAT5e/6/7 to HDMI with LAN/IR/RS232 CAT5e/6/7 to HDMI with LAN/IR/RS232 CAT5e/6/7 to HDMI with LAN/IR/RS232 CAT5e/6/7 to HDMI with LAN/IR/RS232 CAT5e/6/7 RS-232 Equipped PC Power... -
Page 19: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 340 MHz/10.2 Gbps Input Ports 4×HDMI, 5×IR Extender, 1×RS-232, 1×RJ-45 (Control), 1×Mini USB Type B (For firmware updated only) Output Ports 4×CAT5e/6/7, 5×IR Blaster Supported HDMI Cable 10m@1080p, 5m@4K2K (Input/output) Lengths ESD Protection Human-body Model: ±... -
Page 20: Input/Output Resolution
8.2 Input/Output Resolution SUPPORTED RESOLUTION INPUT OUTPUT 640×480@60/72/75/85 800×600@56/60/72/75/85 1024×768@60/70/75/85 1280×720@60 1280×1024@60 1600×1200@60 1920×1200@60RB 3840×2160p@24/25/30 4096×2160p@24 4096×2160p@50/60 (YUV 420) 480i/576i ... -
Page 21: Cat5E/6/7 Cable Specification
8.3 CAT5e/6/7 Cable Specification Cable Range Pixel Clock Video Data Supported Video Type Rate Rate CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p@60 Hz, (HD Video) 36-bit 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CMPROU4H4CVE...
