- Page 1 CMPRO-UA8H8CVPL 8×8 HDMI 4K UHD over CAT5e/6/7 Matrix with HDCP 2.2 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........6 6.5 IR Cable Pin Assignment....6 6.6 RS-232 Protocol .........7... -
Page 6: Introduction

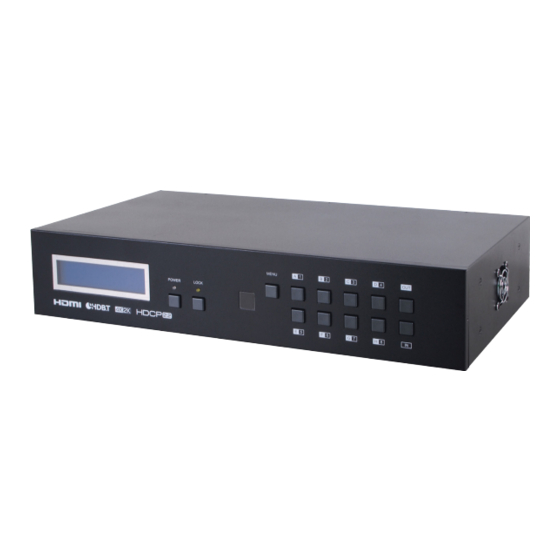

1. INTRODUCTION The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK LCM : Displays the setting information of each input and output setting. POWER: Press this button to power the device ON/OFF. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CONTROL CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN... -
Page 10: Side Panel
Warning: Please do not connect the CAT5e/6/7 output into the receiver's LAN port. HDMI IN 1~8: Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable. DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 11: Remote Control
6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. IN: Input ports selection 1~8. OUT: Output ports selection A~H. 6.5 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Grounding... -
Page 12: Rs-232 Protocol
6.6 RS-232 Protocol MATRIX REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER Switch output A to input N. N=1~8 Switch output B to input N. - Page 13 COMMAND DESCRIPTION PARAMETER SETIP <x.x.x.x><x. Set IP, SubNet and Gateway X=0~255 x.x.x><x.x.x.x> (Static IP) IPCONFIG Display the current IP NONE configuration RSTIP Set IP configuration to DHCP None Power off None Power on None STOREN Store current I/O to position N N=1~8 SHOWN Show current port N I/O...
-
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 15 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 16: Webgui Control
6.9 WebGUI Control On a PC/Laptop which is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor or OSD menu) on the web address entry bar. The browser will display the device’s Switch, Data Routing, EDID Settings and System Settings. - Page 17 Click on 'EDID Settings' page to Setting EDID mode or update EDID. Click on 'System Settings' to control power on / off, Network status setting and reset to default settings. Note: It will need to click on save button once you finished network parameters setting.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Power Power Power Link Link Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster... - Page 19 ZONE ZONE ZONE ZONE Displays HDMI Outputs IR In/Out Receiver Units Power Power Power Power Link Link Link Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out...
-
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 MHz/9 Gbps Input Ports 8×HDMI, 9×IR (3.5mm), 1×RS-232 (9-pin D-sub), 1×Control (RJ-45), 1×USB (Service only) Output Ports 8×CAT5e/6/7, 9×IR (3.5mm) Video Resolutions 480i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV420) & VGA~WUXGA IR Frequency 30~50 kHz Baud Rate 115200 bps Power Supply... -
Page 21: Supported Resolutions
8.2 Supported Resolutions Resolution Input Output 640×480@60 √ √ 720×480@60 √ √ 720×576p@50 √ √ 800×600@60 √ √ 1024×768@60 √ √ 1280×720@50 √ 1280×720p@50 √ √ 1280×720p@60 √ √ 1280×1024@60 √ √ 1600×1200@60 √ √ 1920×1080i@50 √ √ 1920×1080i@60 √ √... -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Command Line Interface Digital Theater System Digital Visual Interface Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Infrared Liquid Crystal Module Power over Cable... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
