-STAB-

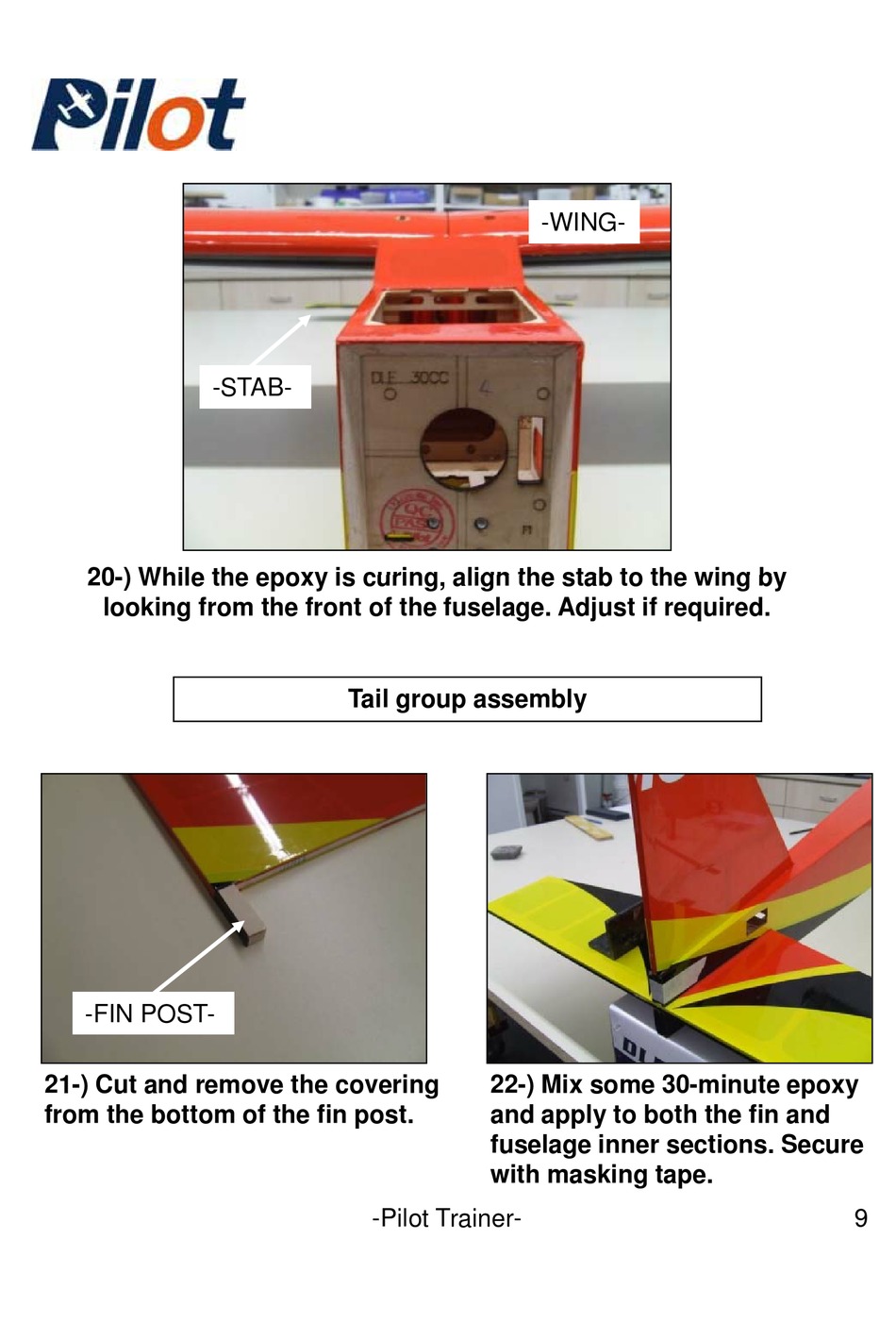

20-) While the epoxy is curing, align the stab to the wing by
20 ) While the epoxy is curing align the stab to the wing by
looking from the front of the fuselage. Adjust if required.
-FIN POST-
21-) Cut and remove the covering
from the bottom of the fin post.
STAB
Tail group assembly
p
-Pilot Trainer-
-WING-
22-) Mix some 30-minute epoxy
and apply to both the fin and
pp y
fuselage inner sections. Secure
with masking tape.
9
