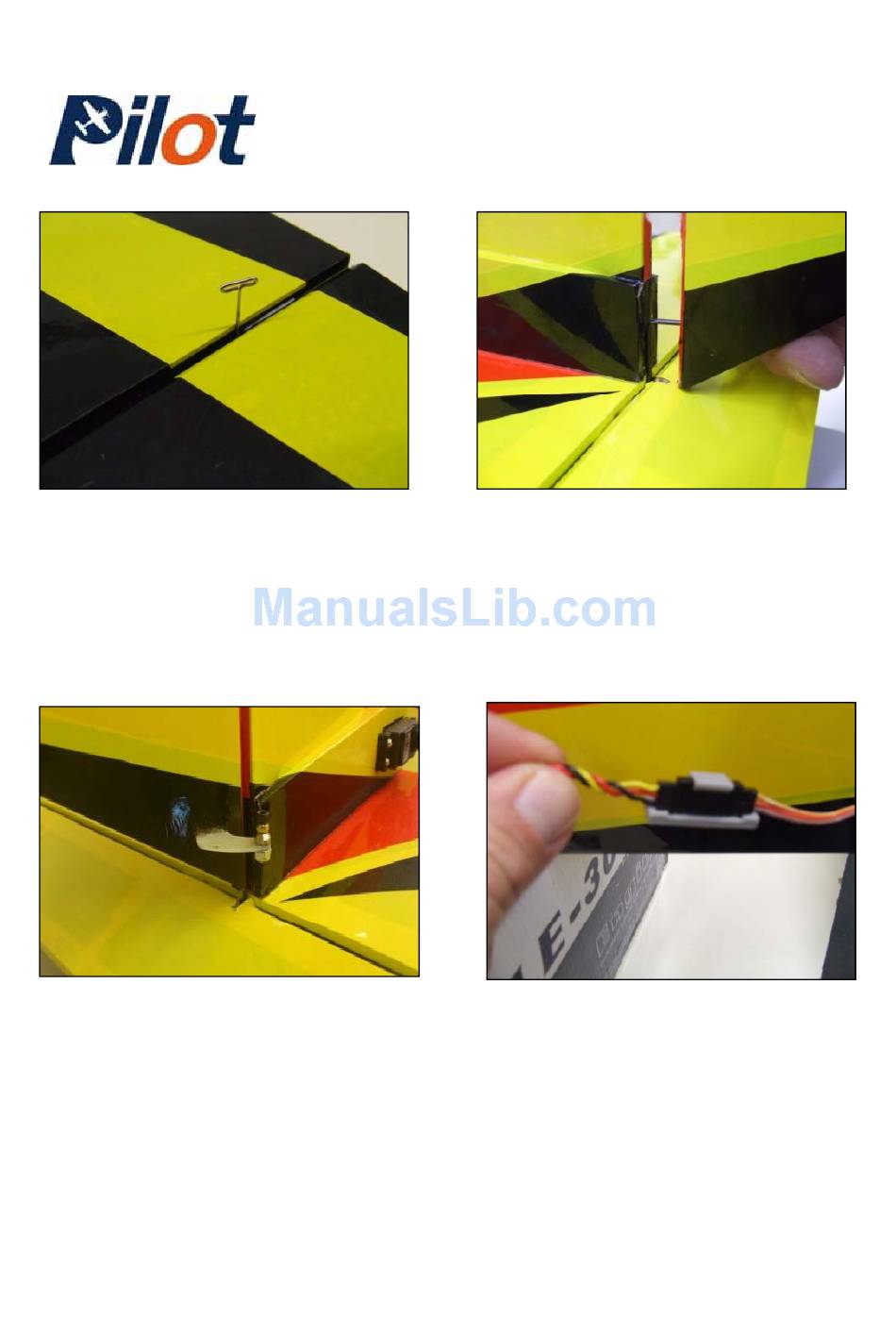

27-) Insert a pin in the center of
each hinges. Insert the hinges in
both elevator and stab and push both elevator and stab and push
them in position as shown. Then,
apply a few drops of "Thin C.A" to
each sides of the hinges.
28-) Repeat the elevator horn
installation process for the rudder
and bond the rudder horn with 30-
minute epoxy. p y
28-) Repeat for the rudder but also
mix some 30-minute epoxy to
bond the steel wire into the rudder. bond the steel wire into the rudder
29-) Locate on the fuselage the
rudder and elevator servo openings
and cut/remove the covering. Plug
one servo to each pre-installed servo
leads and secure with the supplied
servo retainer clips.
