Summary of Contents for Pilot Communications J-10 Jet 107"

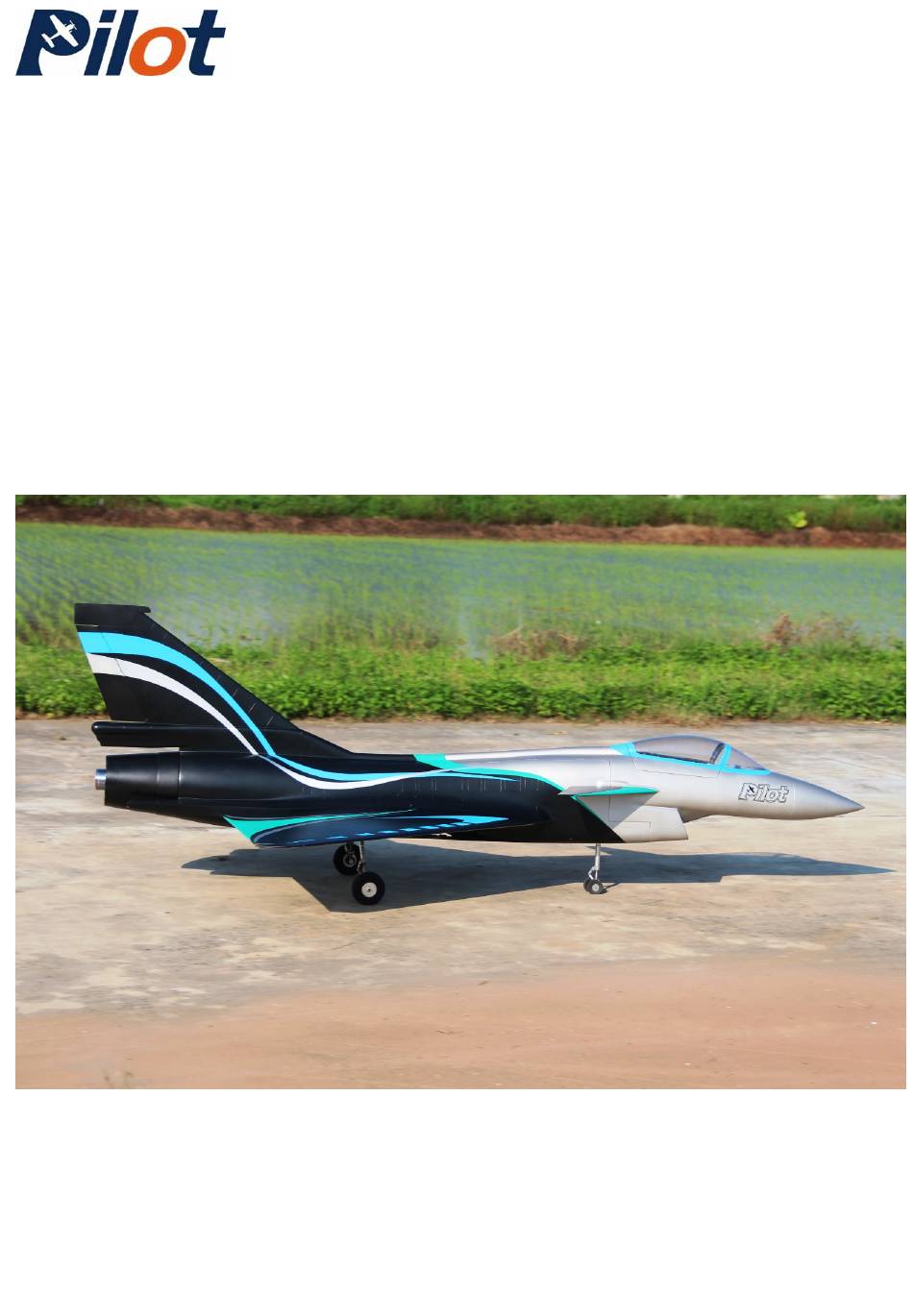

- Page 1 J-10 Jet 107” USER MANUAL WINGSPAN:1650mm LENGTH:2700mm...
- Page 2 Introduction ! Thank you for purchasing our 2.7m(107”) J-10 Jet plane. we strive to achieve a good quality quick build ARF aircraft . It requires the least amount of assembly of any ARF kit to obtain the maximum performance. ! Both the design and manufacturing have been undertaken to the highest standards, using best quality hardware, covering, wood &...
- Page 3 Install kit contents Install kit contents: （Some contents like fuel tank etc… has already installed in fuselage） Carbon tube： The outer diameter is 35mm, the wall thickness is 1.5mm, and the length is 710 mm. Landing gear module(optional): Landing gear Pilot landing gear controller...
- Page 4 Install kit contents Accessories pack： Accessories pack includes： Hexagon screws in metric system(SHCS) Tapping screws Metric Allen Wrench Push rot wrench V teeth steel wire Push rot Wring clamp Gasket Battery bandage Oil nipple suit Extension cord Crowbar (Some of accessories like screw/cord etc… isn’t in this accessories pack)
- Page 5 Install kit contents Servo module(optional): Servo: PW20AH PY65AH PY12AH Servo arm: Pilot Futaba aluminum alloy 0.8” Pilot Futaba aluminum alloy 1.2” Pilot Futaba aluminum alloy 1.6” Other Accessories Need To Complete: Epoxy Adhesives Cyanocrylate adhesives X-Acto and Saw knives Sandpaper Thread lock Aircraft stand or support...
- Page 6 Front landing gear assembly 1: Install the servo to the nose landing gear. Install the servo arm and the push rod. Adjust it to make sure the plane can go straight approx. You still can adjust by radio after install it.
- Page 7 Front landing gear assembly 3: Place the nose gear to the mounting and adjust it to the correct position, then mark the 4 mounting screws hole. 4: Before you drilling the mounting screws hole , please make sure there is nothing to get stuck when it open and close.
- Page 8 Landing gear assembly - main Use M4 *14 screw to lock on the reserved space，and use special fixed aluminum sheet to connect left and right for reinforcement.
- Page 9 Landing gear assembly - main 2.Check the main landing gear for interference.
-
Page 10: Wing Servo Assembly
Wing Servo Assembly The control horns are pre-installed at the factory, ready for use..screw the servo to the servo plate then install the servo arm on to the servo, making sure that this is centred... -
Page 11: Rudder Servo Assembly
Rudder Servo Assembly 1.Insert the servo into the precut servo mount. screw the servo in place, and then install the servo arm on to the servo, making sure that this is centred. -
Page 12: Elevator Servo Assembly
Elevator Servo Assembly as follows, the servo is fixed. 2.Next is the elevators. put in the servo to the precut slot in the elevator. .screw the servo in place, and then install the servo arm on to the servo, making sure that this is centred. - Page 13 Installation of Vector Nozzle...
- Page 14 Distance of vector rotation Installation of engine and vector is completed Distance between Rear End of Engine and Vector Leading Edge 15mm...
- Page 15 Installation of Vector Nozzle 1. Fixing Vector Servo Machines and Fixing Servo Machine Lines X-axis servo fixed Y-axis servo fixed...
- Page 16 Tank Arrangement The 106” J10 use PilotRC 5000ml oil tank. Fuel vent Anti-bubble oiltank:250ml...
- Page 17 Installation of main oil tank and Smoke tank 1.Fixing of Main Oil Tank To arrange the fuel tank, connect all the oil tube(or you can connect it later), and stick the Velcro stick on the tank support frame. Also, you need stick the Velcro stick on the fuel tank, to arrange the tank on the support frame, use Velcro stick tape to straining the tank.
- Page 18 Installation of main oil tank and Smoke tank 2.Fixing of Smoke Pull Oil Tank...
- Page 19 Installation position of UAT and smoke pump...
- Page 20 Installation of each controller On top of the nose gear.
- Page 21 Flying Setting 1.Setting of Rudder Surface in 3D Flight Aileron: 40mm Rudder: 30mm Elevator: 36mm Vector setting: X axis 28.5mm Y axis 20mm 2. Setting of Control Surface in Airline Flight Aileron: 21mm Rudder: 22mm Elevator: 21mm Vector setting: X axis 19mm Y axis 9mm CG: The CG is 320mm from the front leading edge on the root of the wing.
-
Page 22: Flight Preparation
Flight Preparation ■ Make sure you have the right model programmed into your transmitter ■ Check the direction of each surface not and also right before you take off . ■ Remember nothing wrong on the ground ever improves in the air ■... - Page 23 Zhongshan Pilot Model Aircraft Product Ltd Address: No.34, Chengnan Er Road, Zhongshan city, 528455, Guangdong Province, China Web: www.pilot-rc.com Email: pilot-rc@139.com, info@pilot-rc.com Tel: +86-760-88781293 FAX: +86-760-88780293...
