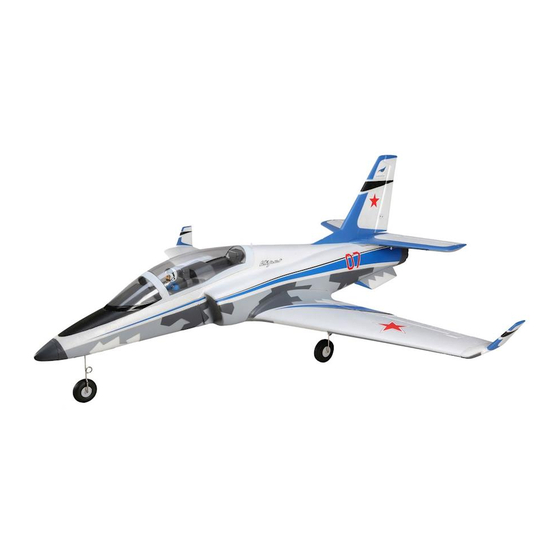

Viper Jet 73"
USER MANUAL
WINGSPAN:72.8" (1850mm)
LENGTH:77.1"(1960mm)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Viper Jet 73" and is the answer not in the manual?

Questions and answers

Related Manuals for Pilot Communications Viper Jet 73"

Summary of Contents for Pilot Communications Viper Jet 73"

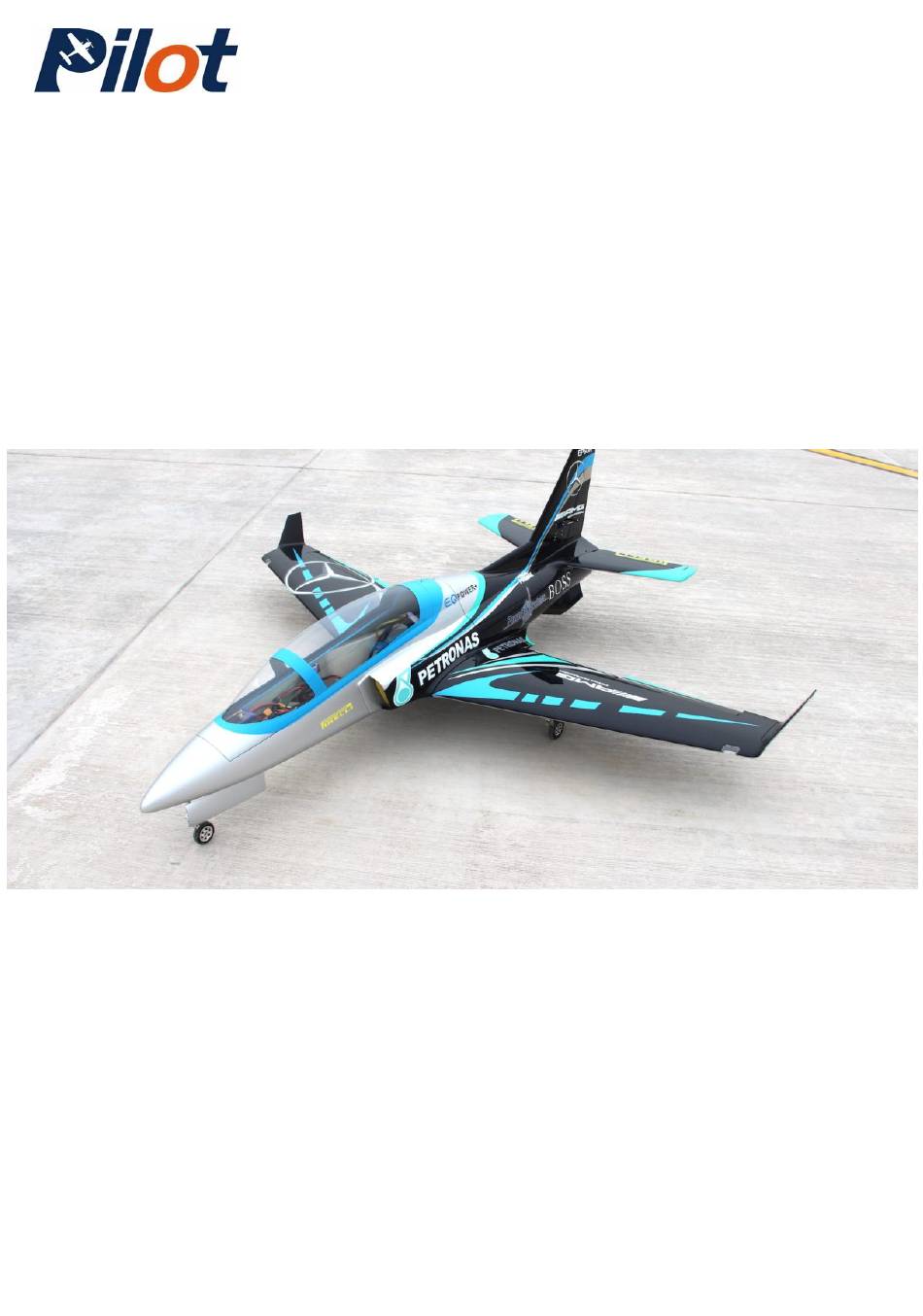

  • Page 1 Viper Jet 73” USER MANUAL WINGSPAN:72.8” (1850mm) LENGTH:77.1”(1960mm)
  • Page 2 Introduction ! Thank you for purchasing our Viper 73”Jet plane. we strive to achieve a good quality quick build ARF aircraft . It requires the least amount of assembly of any ARF kit to obtain the maximum performance. ! Both the design and manufacturing have been undertaken to the highest standards, using best quality hardware, covering, wood &...
  • Page 3 Install kit contents Install kit contents: （Some contents like fuel tank etc… has already installed in fuselage） Aluminum tube： Landing gear module(optional): Landing gear Pilot landing gear controller...
  • Page 4 Install kit contents Accessories pack： Accessories pack includes： Hexagon screws in metric system(SHCS) Tapping screws Metric Allen Wrench Push rot wrench V teeth steel wire Push rot Wring clamp Gasket Battery bandage Oil nipple suit Extension cord Crowbar (Some of accessories like screw/cord etc… isn’t in this accessories pack)
  • Page 5 Install kit contents Servo module(optional): Servo: PW20AH PY12AH Servo arm: Pilot Futaba aluminum alloy 0.8” Pilot Futaba aluminum alloy 1.2” Other Accessories Need To Complete: Epoxy Adhesives Cyanocrylate adhesives X-Acto and Saw knives Sandpaper Thread lock Aircraft stand or support...

  • Page 6: Landing Gear Assembly

    Landing gear assembly 1: Install the servo to the nose landing gear. Install the servo arm and the push rod. Adjust it to make sure the plane can go straight approx. You still can adjust by radio after install it.
  • Page 7 Landing gear assembly 3: Place the front gear on the support, adjust it to the correct position, and then lock it on the 4 reserved mounting holes with screws. 4. Before locking the screw, please make sure nothing gets stuck when opening and closing.
  • Page 8 Landing gear assembly - nose After the installation， Carefully arrange the nose gear retract wire lead and the steering wire as well Install the nose retract gear to the fuselage.
  • Page 9 Landing gear assembly - main 4. Place the main landing gear in a suitable position and lock it with M4*20 woodworking screws. Before locking the screw, please make sure nothing gets stuck when opening and closing.
  • Page 10 Wing Servo/Flaps Assembly 1.The control horns are pre-installed at the factory, ready for use. Screw the servo to the servo plate then install the servo arm on to the servo, making sure that this is centred 2.Place the servo over the servo plate making sure that the arm moves freely within the provided slot, and mark out the placement of the four screw holes.
  • Page 11 Wing Servo/Flaps Assembly Aileron servo / Flaps servo / Gear installed Power cables for landing gear, flaps, ailerons and navigation lights are led out from the inside of the wing.
  • Page 12 Elevator/ Rudder Servo Assembly 1.Rudder servo assembly Insert the servo into the precut servo mount， rudder servo assembly inserts the servo device into the precut servo bracket. The screw is fixed in the same way as the aileron servo machine is installed.
  • Page 13 Elevator/ Rudder Servo Assembly Next is the elevators 2.Screw the servo in place, and then 1.Put in the servo to the precut slot in install the servo arm on to the servo, the elevator. making sure that this is centred.
  • Page 14 Servo Wire Arrangements Fixed nozzle Fixing of engine...
  • Page 15 Tank Arrangement The 73” Viper use PilotRC 2000ml oil tank. Anti-bubble oiltank:250ml...

  • Page 16: Fuel Tank Installation

    Fuel Tank Installation To arrange the fuel tank, connect all the oil tube(or you can connect it later), and stick the Velcro stick on the tank support frame. Also, you need stick the Velcro stick on the fuel tank, to arrange the tank on the support frame, use Velcro stick tape to straining the tank.
  • Page 17 Fuel Tank Installation...
  • Page 18 Flying Setting Aileron: 9mm Rudder: 17mm Elevator: 15mm Flaps: 25mm for take off 57mm for landing. CG: The CG is 185mm from the front leading edge on the root of the wing.

  • Page 19: Flight Preparation

    Flight Preparation ■ Make sure you have the right model programmed into your transmitter ■ Check the direction of each surface not and also right before you take off . ■ Remember nothing wrong on the ground ever improves in the air ■...
  • Page 20 Zhongshan Pilot Model Aircraft Product Ltd Address: No.34, Chengnan Er Road, Zhongshan city, 528455, Guangdong Province, China Web: www.pilot-rc.com Email: pilot-rc@139.com, info@pilot-rc.com Tel: +86-760-88781293 FAX: +86-760-88780293...
