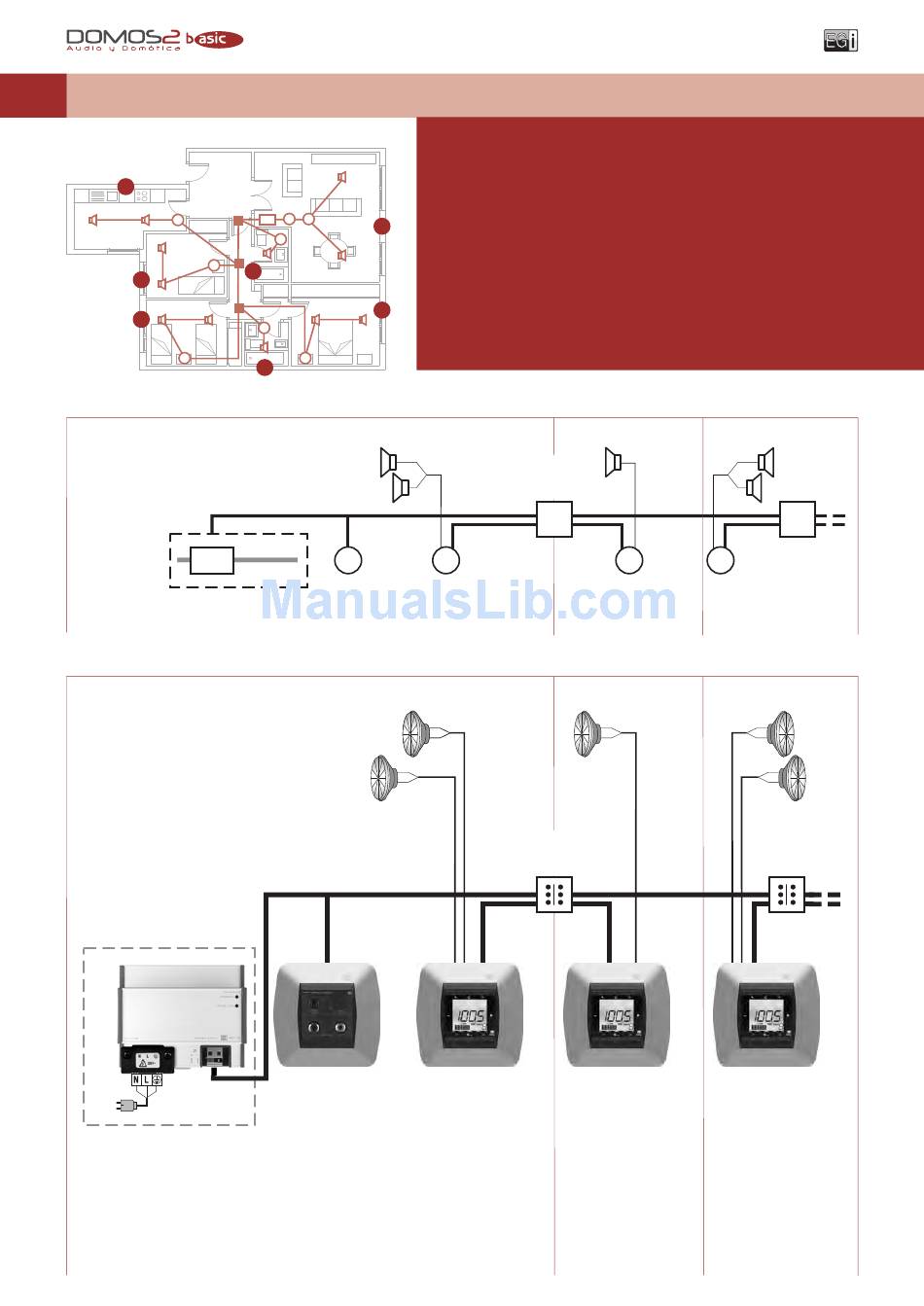

Examples of installations

The installation presented here provides a high quality stereo sound
system with a clock and an intercommunication unit* for the entire
installation. It is composed of basic elements from the DOMOS2 series.
The control units are references 40220 and 40221 (with local FM
tuner) fitted into a ø60mm box and the audio and clock sources are
the central unit reference 40070 (1 RCA input, fitted into a ø60mm
box.) and central unit reference 40090 (fitted into a ø60mm box). A
40710-type power supply is also necessary for the installation.
This installation provides 1 stereo audio channel and a clock for the
entire installation.
*Although the central control unit manages the intercommunication system, this type of control unit only
allows reception of messages. If you want an intercommunication service, install control units
40271/40281/40300 in the zones from which you wish to generate messages for the installation.
