EGi DOMOS2 Installer Manual page 7

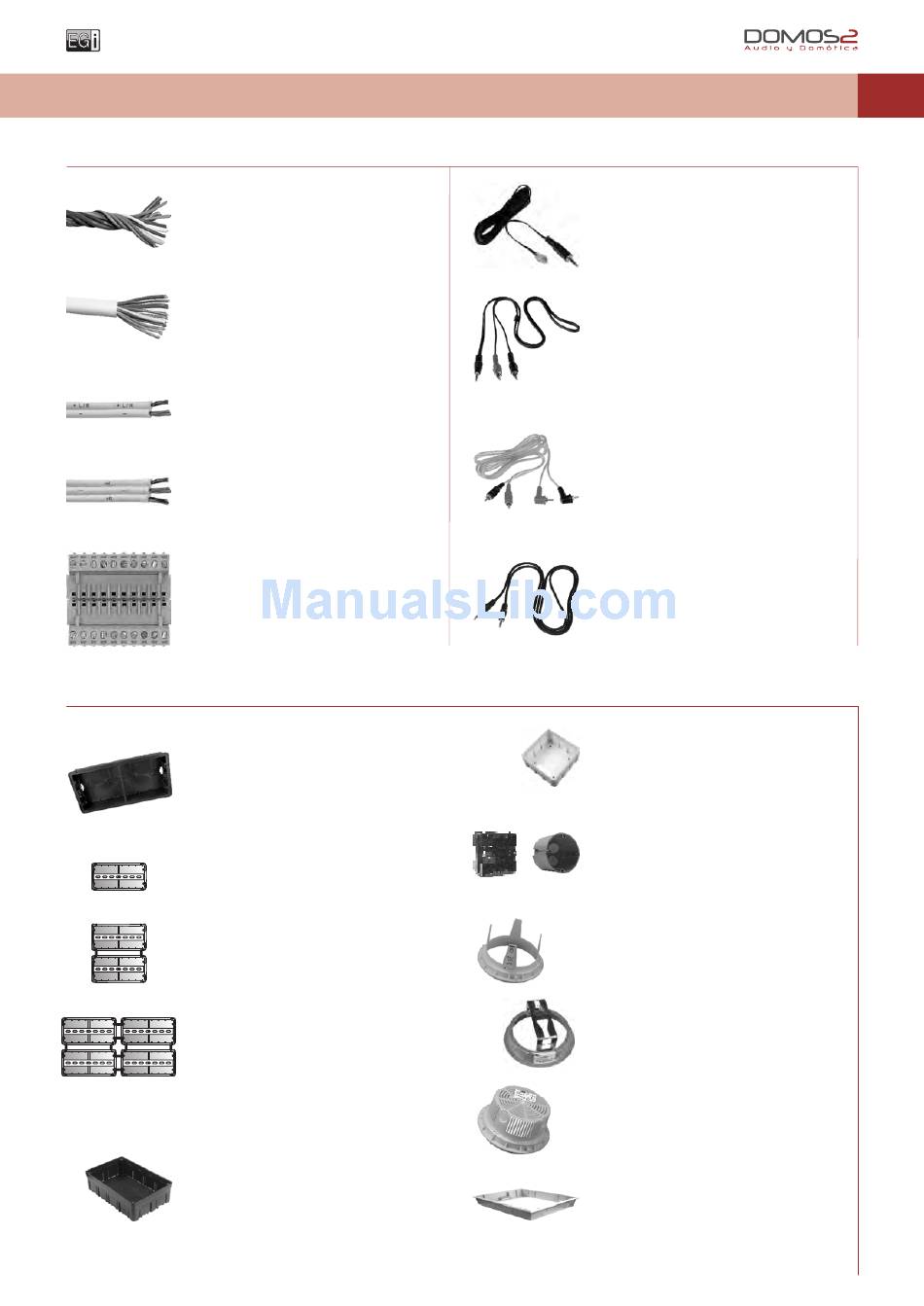

Cables and technical data
40180
10-Conductor twisted cable.
Isolation: 450/750 V.
Use ø20 mm corrugated tube.
NOTE:
40181
10-Conductor twisted cable with cover.
Isolation: 450/750 V.
Use ø20 mm corrugated tube.
NOTE:
40750
2-Conductor parallel cable for loudspeaker.
Isolation: 300/500 V.
40760
3-Conductor parallel cable for loudspeaker.
Isolation: 300/500 V.
40170
Plug-in terminal block for derivation.
V11F
130 x 265 x 45 mm box.
For central units + power supply in previous
DOMOS preinstallations. It is also used for EGi
loudspeaker of ref. G17F/xx.
1 x 12M = 12 DIN rail modules wide
Examples of linked boxes V11F
With the accessories ofEGi front trims of ref.40810
and 40820.
For electronic modules with rail band.
1 x 12M = 12 DIN rail modules wide.
2 x 12M = 24 DIN rail modules wide
2 x 12M = 24 DIN rail modules wide.
2 x 24M = 48 DIN rail modules wide.
2 x 24M = 48 DIN rail modules wide
100 x 160 mm Box
Derivation box for 1 room + sound + domotics.
4 relays of ref. EGi 40540 or alarm relay station
of ref. EGi 40630.
Cables, terminal block and connections
40110
IR transmitter cable for remote control.
0501
Wiring to connect audio equipments to aDOMOS2
system.
Stereo 3.5 mm Jack male to 2 RCA stereo.
1.5 m long.
0502
Wiring to connect audio equipments to aDOMOS2
system.
2 RCA elbowed male to 2 RCA stereo.
1.5 m long.
0503
Wiring to connect audio equipments to aDOMOS2
system.
Stereo 3.5 mm Jack male to stereo 3.5 mm Jack male.
2 m long.
100 x 100 mm Box
Derivation box for 2 rooms, only sound.
It sets EGi terminal block or ref. 40170.
ø60 mm Box
Flush-mounting box for control units, central units,
modules and 2" loudspeaker of ref. EGi G13U/xx.
V19A
V19A, H28N and V29A
Flush-mounting box for 5" loudspeaker of ref.
H28N
EGi G14A/xx or loudspeaker with in-built amplifier
of ref. EGi 06011.
V29A
40460
Flush-mounting box for 20 W stereo amplifier+baffle
of ref. EGi 40440 or 80 W stereo amplifier+baffle
of ref. EGi 40450.
Flush-mounting boxes
