EGi DOMOS2 Installer Manual page 10

10 2 audio programs + clock: 1 stereo audio program + FM
H3
H4
H5
Preinstallation (basic - b3)
H1
V11F + 40810
Installation (basic - b3)
H1
40070
40080
40090
40200
40710
40720
40730
V11F + 40810
230 V~
www.egiaudio.com
H1
H2
H7
H6
V19A
H28N
V29A
Ø60 mm Ø60 mm Ø60 mm
box box box
Impedance
16 Ω
Impedance
16 Ω
2 conductors
ref. 40750
General line
Ref. 40180 / 40181
40070
40080
40090
40200
2 conductors

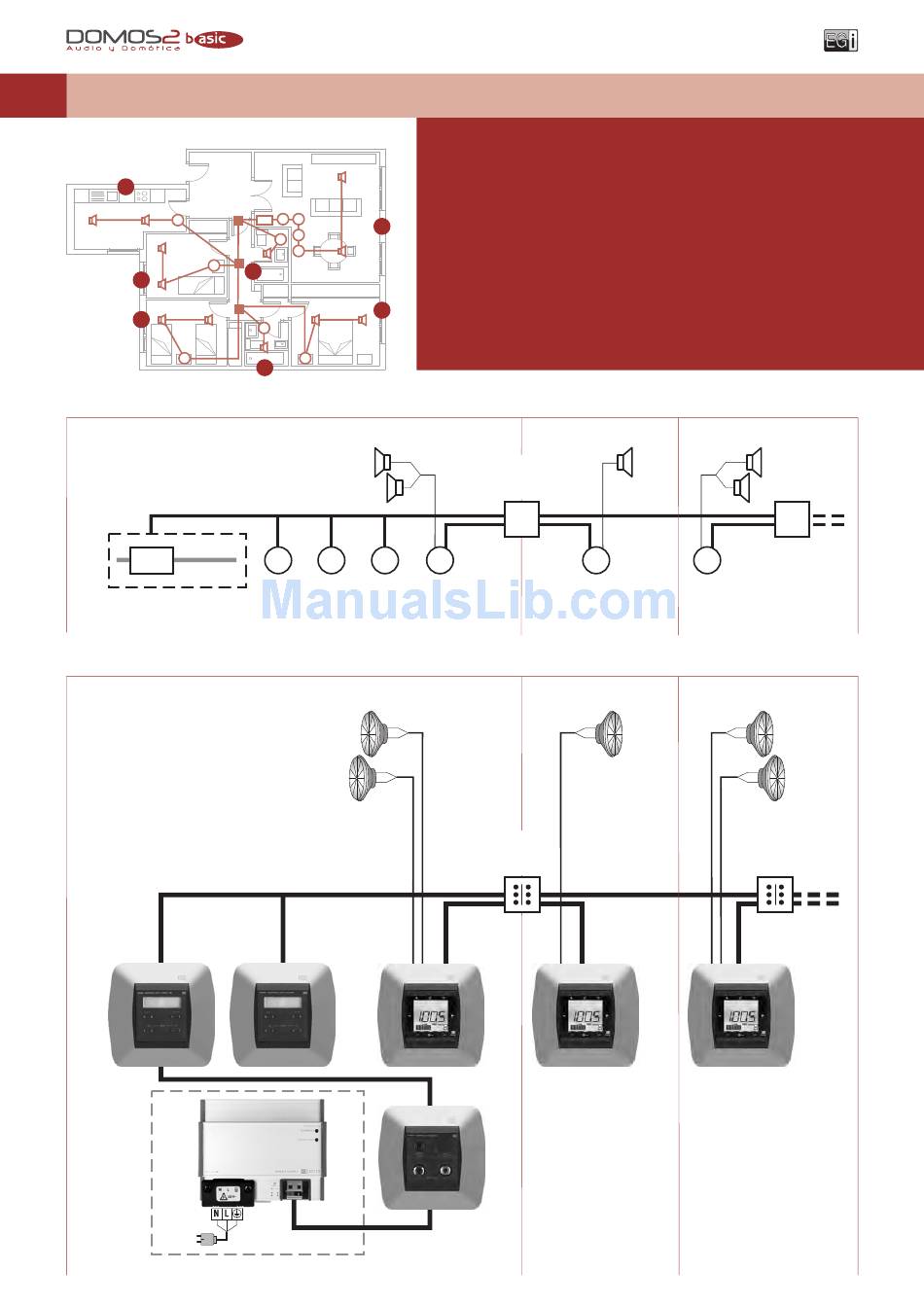

The installation presented below is based on central units and provides
1 stereo audio program, 1 FM program, a common clock and
intercommunication* between zones. If you wish, you may add another
audio channel instead of the FM channel, replacing central unit 40080
with 40070. It is composed of basic elements from the DOMOS2 series.
The control units are references 40220 and 40221 (with local FM tuner)
fitted into a ø60mm box and the audio and clock sources are central unit
reference 40070 (1 RCA input, fitted into a ø60mm box.) and central unit
reference 40090 (fitted into a ø60mm box). A 40710-type power supply
is also necessary for the installation.
This installation provides 1 stereo audio channel with remote control of
the music source, 1 FM radio program, a clock for the entire installation
and intercommunication* between zones.
*Although the central control unit manages the intercommunication system, this type of control unit only allows
reception of messages. If you want an intercommunication service, install control units 40271/40281/40300 in
the zones from which you wish to generate messages for the installation.
H2
Derivation box
100 x 100 mm
H1 + H2
Ø60 mm Ø60 mm
box box
H2
2 conductors
ref. 40750
Plug-in terminal block
ref. 40170
H1 + H2
40220
40221
40271
40281
40300
General line
40070
40080
40090
40200
Examples of installations
H3... H7
Derivation box
V19A
100 x 100 mm
H28N
V29A H3 + H4
Ø60 mm
box
H3... H7
Impedance Impedance
16 Ω 16 Ω
2 conductors
ref. 40750
Plug-in terminal block
ref. 40170
H3 + H4
40220
40221
40271
40281
40300
Remaining
rooms
Remaining
rooms
40220
40221
40271
40281
40300
