EGi DOMOS2 Installer Manual page 12

12 1/3 audio progr. + local FM + line input/headphones
H3
H4
H5
Preinstallation (basic - b5)
H1
V11F + 40810
Installation (basic - b5)
H1
40710
40720
40730
230 V~
V11F + 40810
www.egiaudio.com
H1
H2
H7
H6
V19A
H28N
V29A
Impedance
16 Ω
Impedance
16 Ω
2 conductors
General line
Ref. 40180 / 40181
40010
40050
2 conductors
DOORBELL CONNECTOR
Use potential-free contact.

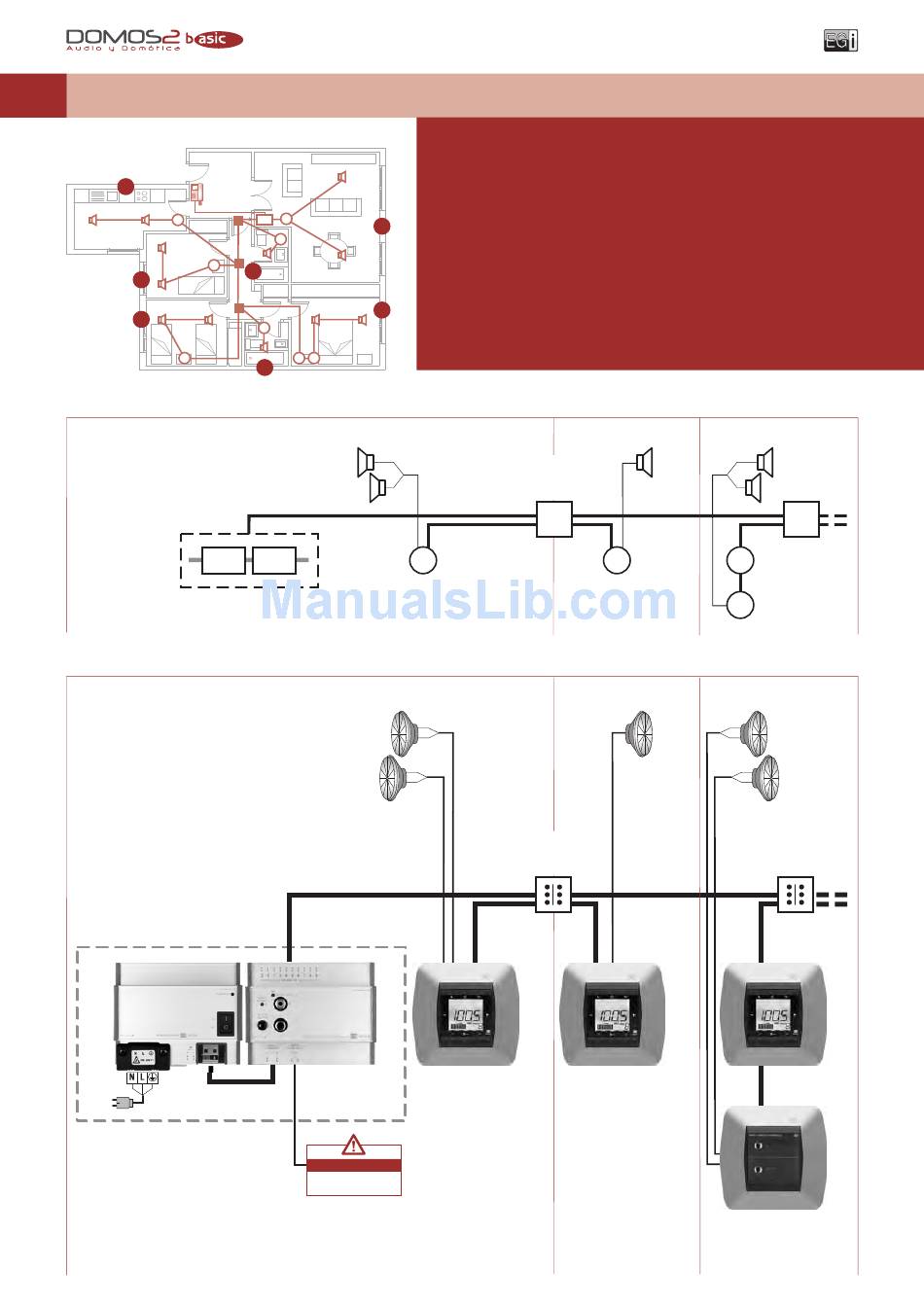

This installation is based on Central unit (40010 -1 program or 40050 -
3 programs-) and provides 1 or 3 stereo audio programs, a common
clock and intercommunication between zones*. It also enables the
remote control of audio sources and the connection of the house doorbell,
so it can be heard in the entire installation. In addition, module 40140
is included in bedrooms, enabling the connection of an MP3 or CD player
that can be heard over the room loudspeakers, and has a headphone
jack for individual listening.
The control units are references 40220 and 40221 (with local FM tuner)
fitted into a ø60mm box.
The features of the installation are 1 or 3 audio programs, acoustic
surveillance for rooms and intercommunication*, audio input and
headphone jack in the rooms.
*Although the central control unit manages the intercommunication system, this type of control unit only allows
reception of messages. If you want an intercommunication service, install control units 40271/40281/40300
in the zones from which you wish to generate messages for the installation.
H2
Derivation box
100 x 100 mm
H1 + H2
Ø60 mm
box
H2
ref. 40750
Plug-in terminal block
ref. 40170
H1 + H2
40220
40221
40271
40281
40300
Examples of installations
H3... H7
V19A
H28N
V29A
Ø60 mm Ø60 mm
box box
Ø60 mm
box
H3... H7
Impedance Impedance
16 Ω 16 Ω
2 conductors
2 conductors
ref. 40750
ref. 40750
Plug-in terminal block
ref. 40170
H3 + H4
40220
40221
40271
40281
40300
Derivation box
100 x 100 mm
H3 + H4
Remaining
rooms
Remaining
rooms
40220
40221
40271
40281
40300
40140
