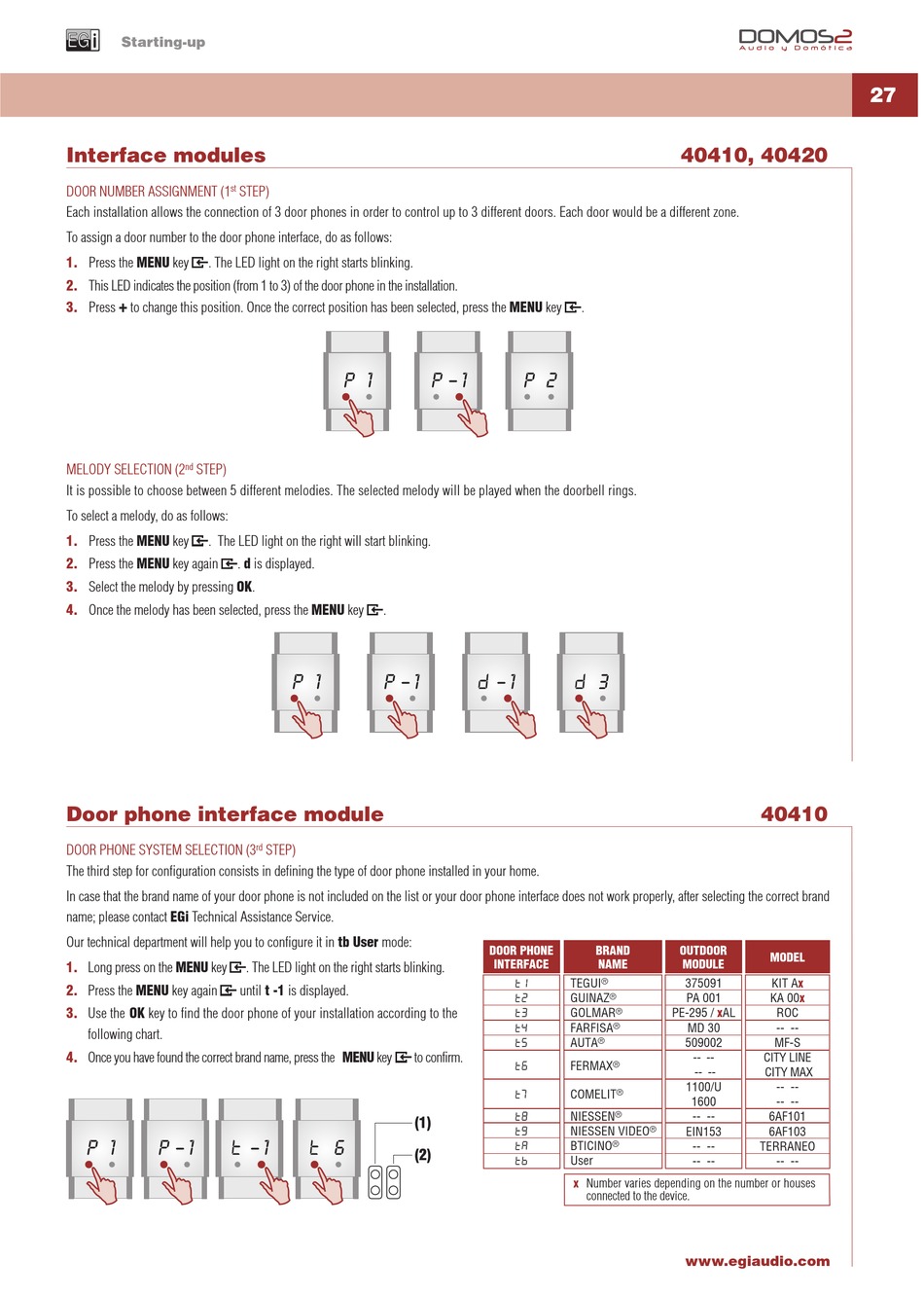

EGi DOMOS2 Installer Manual page 27

Starting-up
Interface modules
DOOR NUMBER ASSIGNMENT (1 st STEP)
Each installation allows the connection of 3 door phones in order to control up to 3 different doors. Each door would be a different zone.
To assign a door number to the door phone interface, do as follows:
Press the MENU key . The LED light on the right starts blinking.
1.
This LED indicates the position (from 1 to 3) of the door phone in the installation.
2.
Press + to change this position. Once the correct position has been selected, press the MENU key
3.
MELODY SELECTION (2 nd STEP)
It is possible to choose between 5 different melodies. The selected melody will be played when the doorbell rings.
To select a melody, do as follows:
Press the MENU key . The LED light on the right will start blinking.
1.
Press the MENU key again . d is displayed.
2.
Select the melody by pressing OK.
3.
Once the melody has been selected, press the MENU key
4.
Door phone interface module
DOOR PHONE SYSTEM SELECTION (3
The third step for configuration consists in defining the type of door phone installed in your home.
In case that the brand name of your door phone is not included on the list or your door phone interface does not work properly, after selecting the correct brand
name; please contact EGi Technical Assistance Service.
Our technical department will help you to configure it in tb User mode:
Long press on the MENU key
1.
Press the MENU key again
2.
Use the OK key to find the door phone of your installation according to the
3.
following chart.
Once you have found the correct brand name, press the MENU key
4.
 – 1
P 1 P – 1
P 1
.
P 1 P – 1
rd STEP)
. The LED light on the right starts blinking.
until t -1 is displayed.
 6
.
P – 1 P 2
 – 1  3
DOOR PHONE
INTERFACE

TEGUI

GUINAZ

GOLMAR

FARFISA

AUTA
to confirm.

FERMAX

COMELIT

NIESSEN

NIESSEN VIDEO

BTICINO

User
Number varies depending on the number or houses
x
connected to the device.
40410, 40420
40410
BRAND OUTDOOR
NAME MODULE
® 375091
® PA 001
® PE-295 / xAL
® MD 30
® 509002
-- -- CITY LINE
®
-- -- CITY MAX
1100/U
®
1600
® -- --
® EIN153
®
-- -- TERRANEO
-- --
www.egiaudio.com
27
MODEL
KIT Ax
KA 00x
ROC
-- --
MF-S
-- --
-- --
6AF101
6AF103
-- --
