Power supplies

DOMOS2 Power supplies provide all necessary power to the audio and domotic modules. Power supplies
provide 15 V= voltage and a nominal power according to the following chart.
It is recommended to install them with the central units for DIN rail mounting, using the EGi flush-
mounting box of ref. V11F. If the installation is equipped with central units for ø60 mm box instead
of central units for DIN rail mounting, it is not necessar y to install them with the power supply , as
these central units are designed for ø60 mm box.
40710
Input voltage 230 V~; ±10%@50-60 Hz
Max. power 15 W
Output voltage 15 V=
Overload and short circuit protection Through PTC
Switch No
Type Lineal
Housing EGi flush-mounting box of ref. V11F
DIN rail modules 6M wide
Dimensions (mm) 105 x 85.5 x 65

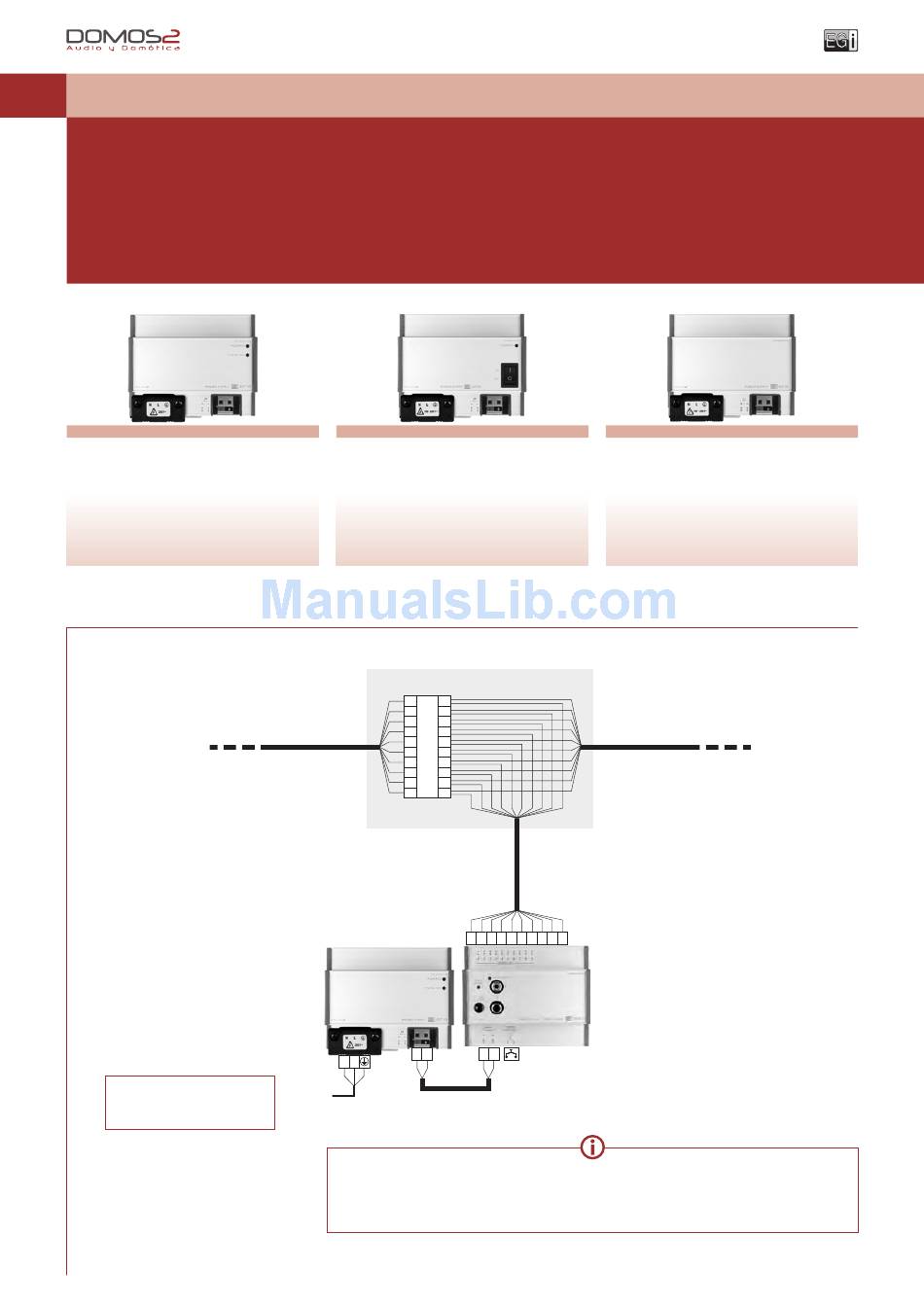

Connection diagram
*
NOTE:
Install a cut-off and protection device between
the house current and the power supply.
www.egiaudio.com
40720
Input voltage 100-240 V~; @50-60 Hz
Max. power 25 W
Output voltage 15 V=
Overload and short circuit protection Through PTC
Switch Yes
Type Switching
Housing EGi flush-mounting box of ref. V11F
DIN rail modules 6M wide
Dimensions (mm) 105 x 85.5 x 65
Plug-in terminal block ref. 40170
9 2
8 0
7 1
6 3
5 4
4 5
3 6
1 7
0 8
2 9
Derivation box
100 x 100 mm
40710
40720
40730
+ –
N L
*
230 V~
2 conductors
INPUT:
Connect the power supply line to the ground connection on the indicated terminals, observing mainly the ground wire position.
OUTPUT:
Use colours or continuity to distinguish + and – cables from the output connector and observe the code to connect the power supply to the central unit.
Features and connection diagrams
40710, 40720, 40730
Overload and short circuit protection Through PTC
General line
Ref. 40180 / 40181
2 0 1 3 4 5 6 7 8 9
40010
40020
40040
40050
40060
– +
40730
Input voltage 100-240 V~; @50-60 Hz
Max. power 40 W
Output voltage 15 V=
Switch No
Type Switching
Housing EGi flush-mounting box of ref. V11F
DIN rail modules 6M wide
Dimensions (mm) 105 x 85.5 x 65
