EGi DOMOS2 Installer Manual page 13

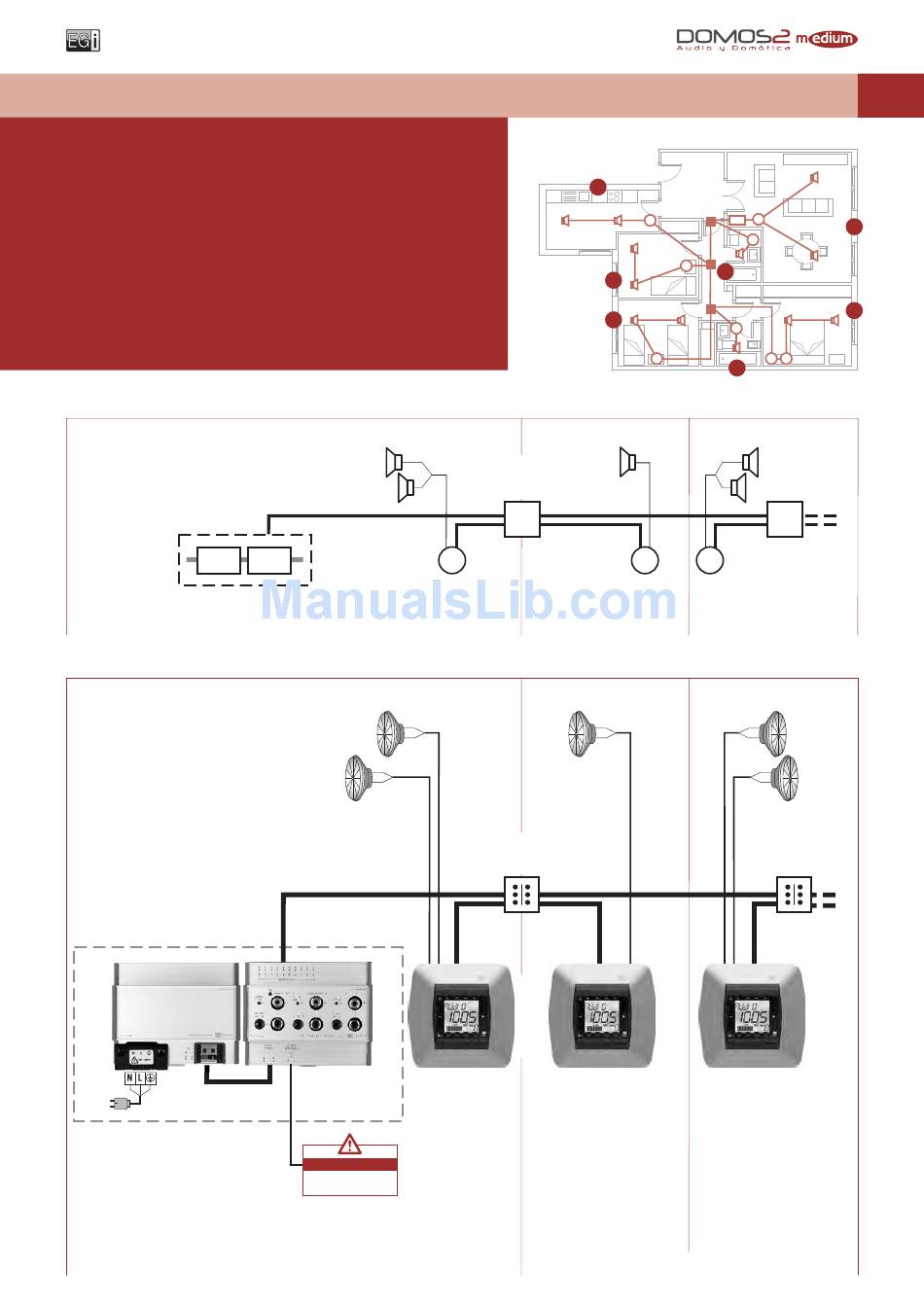

Examples of installations
3 audio programs + local FM
This installation is based on a central unit (40010 – 1 program
– or 40050 –3 programs-) and provides 1 or 3 audio programs,
masterclock for the whole installation and room-to-room intercom.
It also allows the remote control of the audio sources and the
connection of the house bell, so it can be listened through the
whole installation. It is made up of DOMOS2 basic modules.
This installation includes control units of ref. 40271 and 40281
(with radio) for ø60 mm flush-mounting box.
This installation features 1 or 3 audio programs, acoustic
surveillance of the rooms / babyphone, intercom and message
recorder.
Preinstallation (medium - m1)
H1
V11F + 40810
Installation (medium - m1)
H1
40710
40720
40730
2 conductors
230 V~
V11F + 40810
V19A
H28N
V29A
Ø60 mm
box
Impedance
16 Ω
Impedance
16 Ω
2 conductors
ref. 40750
General line
Ref. 40180 / 40181
DOORBELL CONNECTOR
Use potential-free contact.
H3
H4
H5
H2
Derivation box
V19A
100 x 100 mm
H28N
H1 + H2 V29A
Ø60 mm
box
H2
Impedance
16 Ω
2 conductors
ref. 40750
Plug-in terminal block
ref. 40170
H1 + H2
40220
40220
40221
40221
40271
40271
40281
40281
40300
40300
40310
40310
H1
H2
H7
H6
H3... H7
Derivation box
100 x 100 mm
H3 + H4
Remaining
rooms
Ø60 mm
box
H3... H7
Impedance
16 Ω
Impedance
16 Ω
Plug-in terminal block
ref. 40170
H3 + H4
Remaining
rooms
40220
40221
40271
40281
40300
40310
