EGi DOMOS2 Installer Manual page 16

16 3 audio programs + USB + line input/headphones + local FM
This installation is based on a central unit (40020 – 1 program – or 40040 –2 programs-) and provides
1 or 2 audio programs, masterclock for the whole installation and room-to-room intercom.
It also allows the remote control of the audio sources and the connection of the house bell, so it can
be listened through the whole installation. A USB central unit has been added, providing an additional
program to the installation, raising the total number of channels in the installation to three (with central
unit 40040). This module enables music stored in a USB pen drive to be played in the whole installation.
In addition, module 40140 is included in bedrooms, enabling the connection of an MP3 or CD player
that can be heard over the room loudspeakers, and has a headphone jack for individual listening.
40410 module will allow you to answer and open the door phone from any zone of the installation.

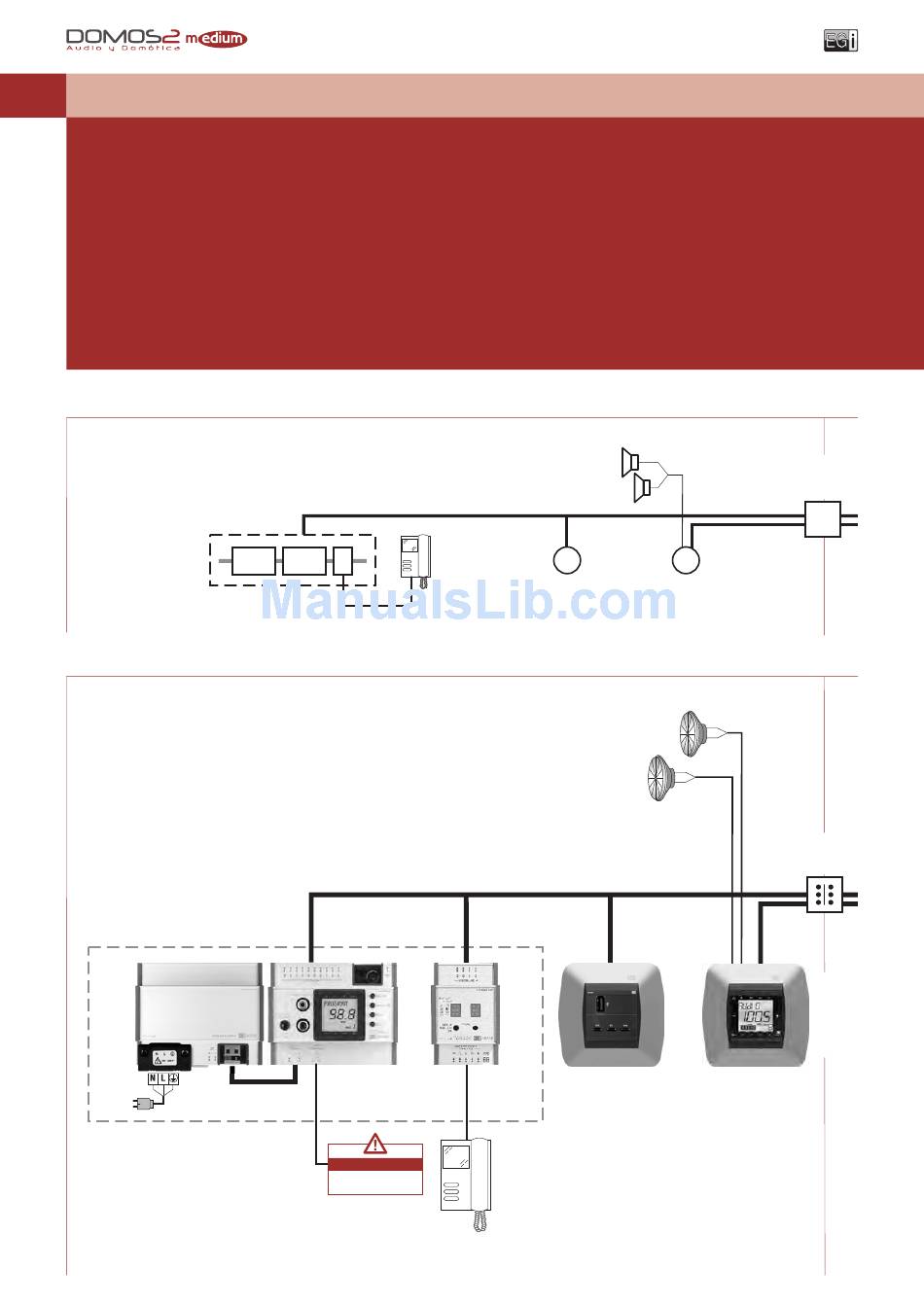

Preinstallation (medium - m3)
H1
Installation (medium - m3)
H1
40710
40720
40730
230 V~
2 x V11F + 40820
www.egiaudio.com
2 x V11F + 40820
General line
Ref. 40180 / 40181
2 conductors
DOORBELL CONNECTOR
Use potential-free contact.
Ø60 mm
box
40010
40410
40420
40020
40040
Examples of installations
V19A
H28N
V29A
Ø60 mm
box
Impedance
16 Ω
Impedance
16 Ω
2 conductors
ref. 40750
40200
40070
Derivation box
100 x 100 mm
H1 + H2
Plug-in terminal block
ref. 40170
H1 + H2
40220
40221
40271
40281
40300
40310
