Remote controls

EGi Remote control of ref. 40130 is a DOMOS2 accessory. It allows IR remote control over the series
and any of the home audio sources (audio equipment, DVD, TV, MP3, etc).
EGi Remote control of ref. 40130 or 40100 allow contr ol over many ser vices of your DOMOS2 audio
and domotic system.
Read carefully the instructions or consult the "User's manual" on these products before using any of
them.

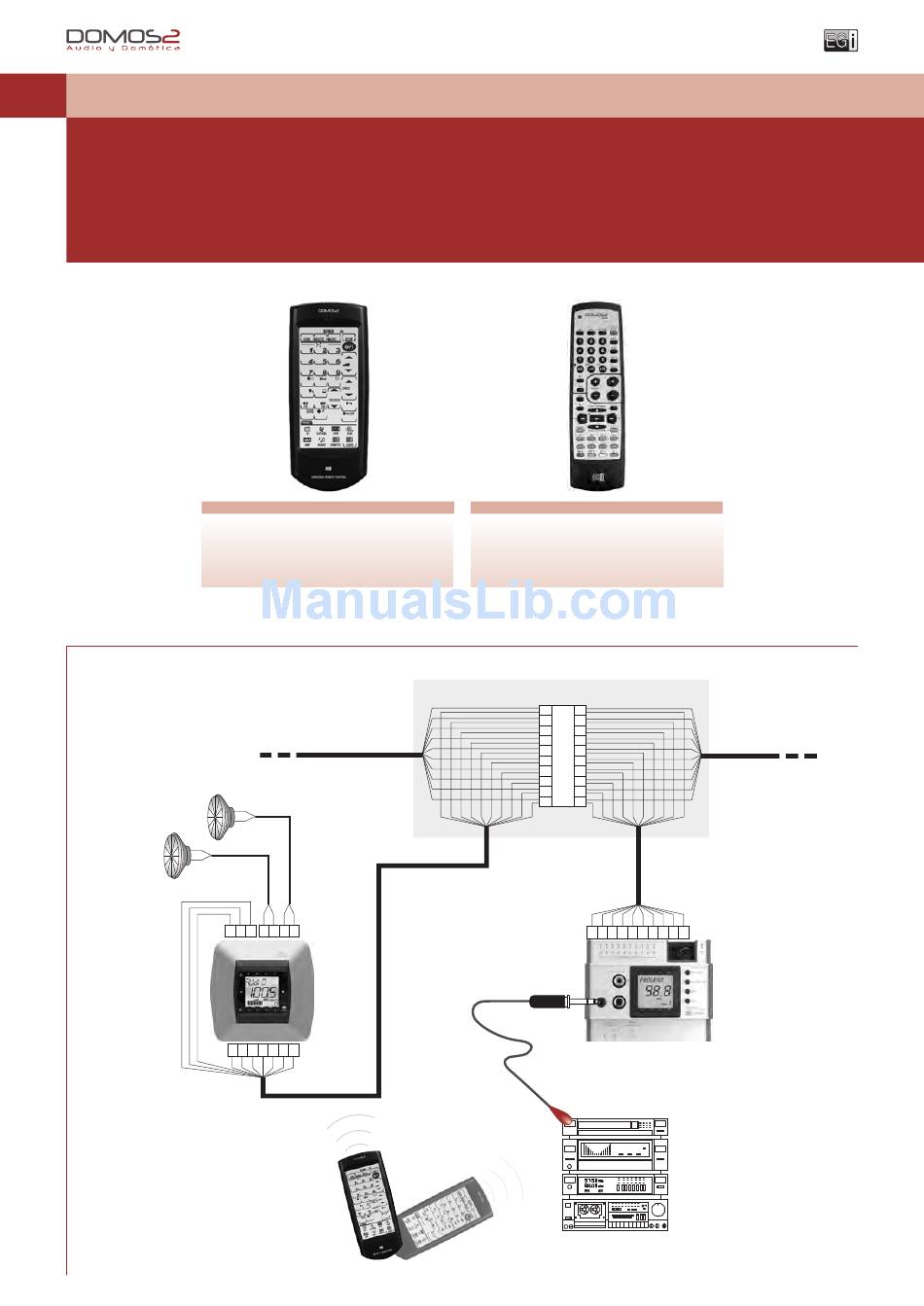

Connection diagram
Impedance 16 Ω
Impedance 16 Ω
www.egiaudio.com
40100
Range 8 m.
Display Touch-screen LCD (119.2 x 57.8 mm)
Power supply 3 batteries (1.5 V-AAA-LR03)
Format Surface accessory
Dimensions (mm) 190.1 x 77 x 31.7
General line
Ref. 40180 / 40181
2 conductors of
ref. 40750
2 0 1 – +L – +R
40271
40281
40300
40310
3 4 5 6 7 8 9
40100
Features and connection diagrams
40130
Range 8 m.
Display -- --
Power supply 2 batteries (1.5 V-AAA-LR03)
Format Surface accessory
Dimensions (mm) 195 x 57 x 13.1
Plug-in terminal block ref. 40170
9 2
8 0
7 1
6 3
5 4
4 5
3 6
1 7
0 8
2 9
2 0 1 3 4 5 6 7 8 9
40110
IR sensor
40130, 40100
General line
Ref. 40180 / 40181
Derivation box
100 x 100 mm
40070
40080
40020
40040
40050
40060
