EGi DOMOS2 Installer Manual page 14

14 1 audio program + door phone interface + line input/headphones + local FM

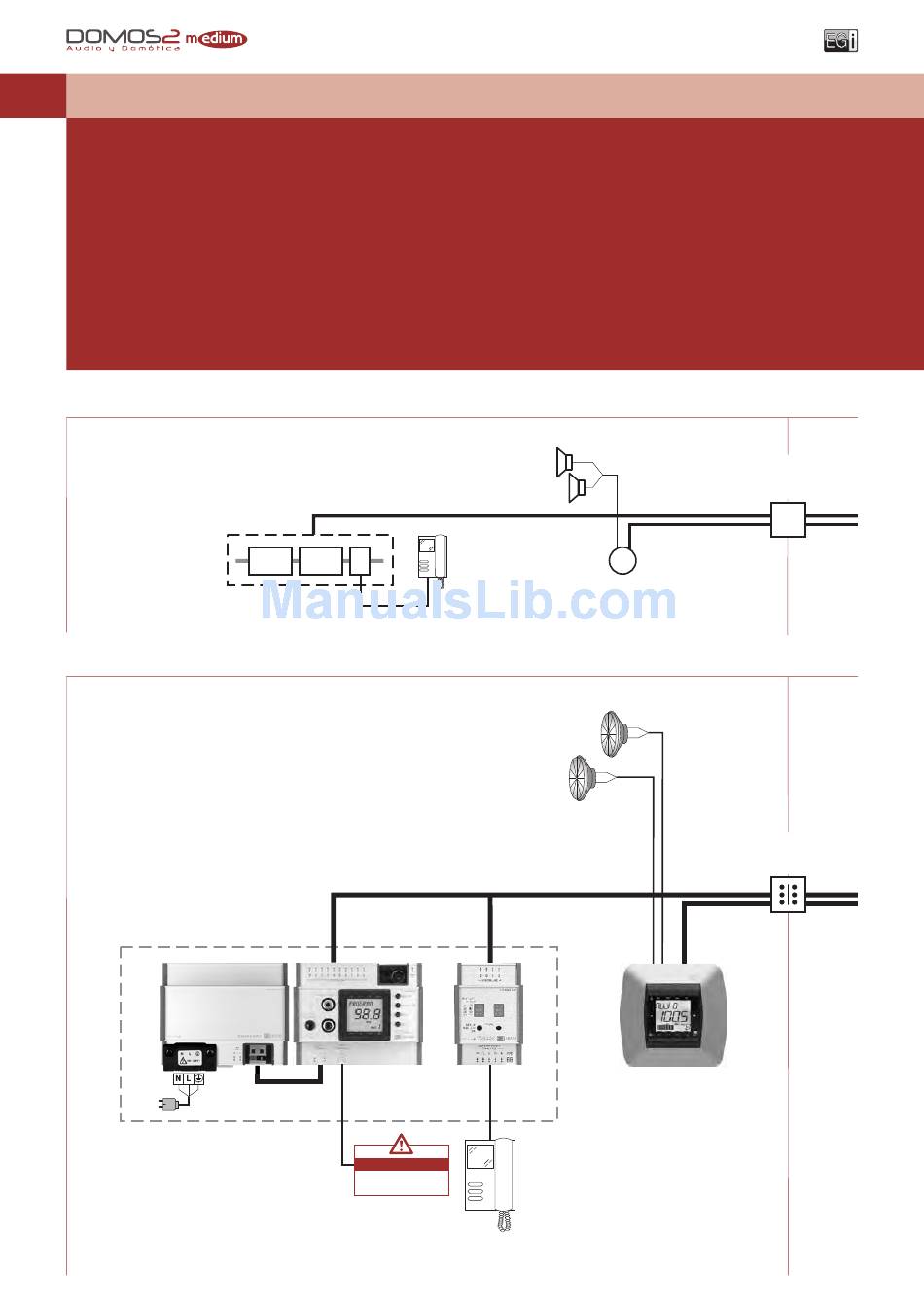

This installation is based on a central unit (40020 – 1 program – or 40040 –2 programs-) and provides
1 or 2 audio programs with FM, masterclock for the whole installation and room-to-room intercom.
It also allows the remote control of the audio sources and the connection of the house bell, so it can
be listened through the whole installation.
In addition, module 40140 is included in bedrooms, enabling the connection of an MP3 or CD player
that can be heard over the room loudspeakers, and has a headphone jack for individual listening.
40410 module will allow you to answer and open the door phone from any zone of the installation.
Preinstallation (medium - m2)
H1
Installation (medium - m2)
H1
40710
40720
40730
230 V~
2 x V11F + 40820
www.egiaudio.com
2 x V11F + 40820
2 conductors
DOORBELL CONNECTOR
Use potential-free contact.
V19A
H28N
V29A
Impedance
16 Ω
Impedance
16 Ω
General line
Ref. 40180 / 40181
40010
40410
40420
40020
40040
40050
40060
Examples of installations
Derivation box
100 x 100 mm
H1 + H2
Ø60 mm
box
2 conductors
ref. 40750
Plug-in terminal block
ref. 40170
H1 + H2
40220
40221
40271
40281
40300
40310
