NetComm G.SHDSL 4-port Security Modem Routers NB712 User Manual page 30

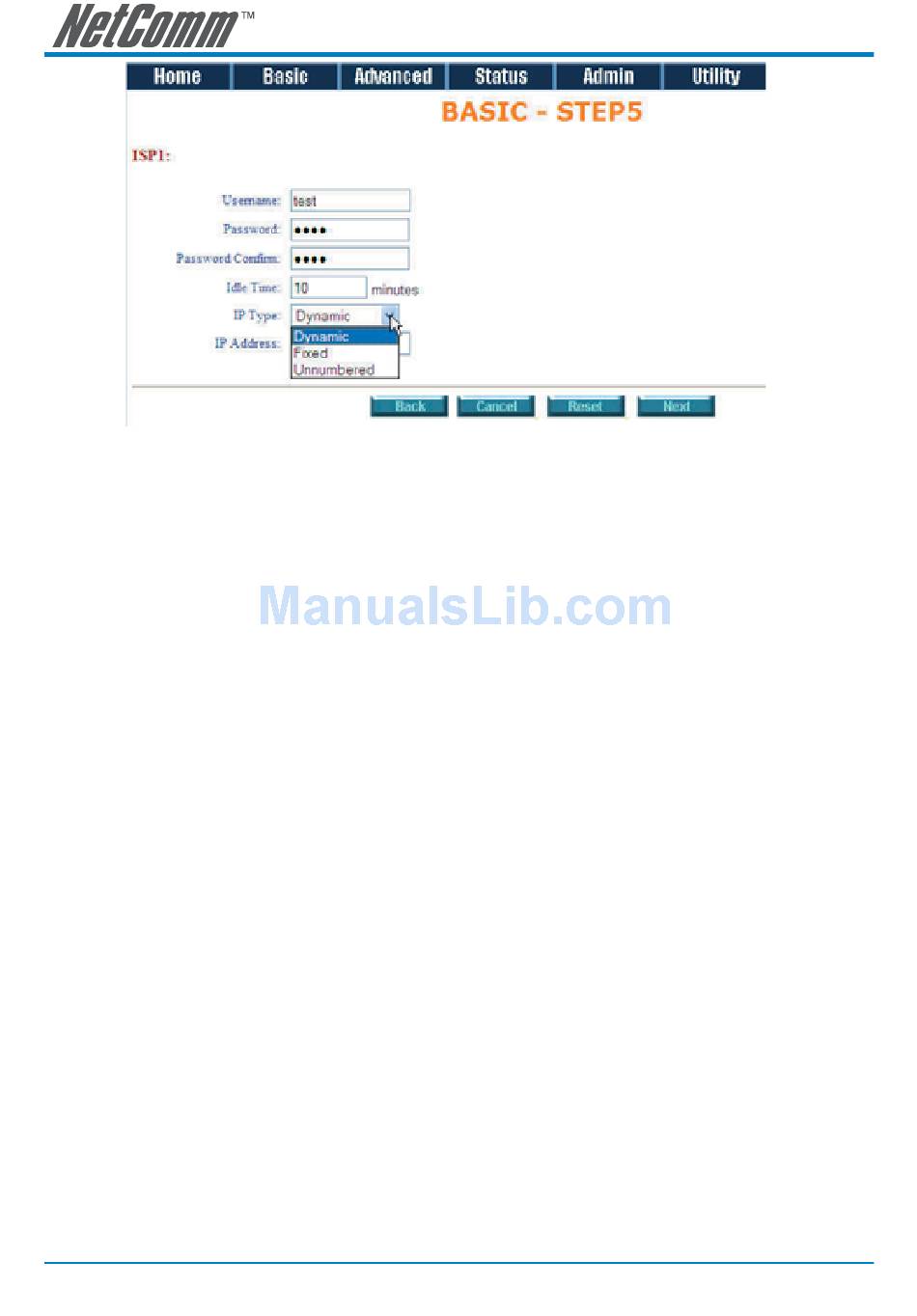

Type the ISP1 parameters.
Username:
Password:
Password Confirm:
Idle Time:
IP Type:
For fixed IP address:
IP Type:
IP Address:
Click Next.
For IP Unnumbered:
IP Type:
IP Address:
Click Next.
30
test
test
test
Your ISP will provide the user name and password.
10
If you want your Internet connection to remain on at all
times, enter 0 in the Idle Time field.
There are three IP types, Dynamic, Fixed and IP
Unnumbered, which you can setup. The default IP type
is Dynamic. It means that ISP PPP server will provide IP
information including a dynamic IP address when a SHDSL
connection is established. I.e. you do not need to type the IP
address of WAN1. Some ISPs will provide fixed IP address
over PPP.
Fixed
192.168.1.1
IP Unnumbered
192.168.168.1
NB712 / NB714 User Guide
YML829 Rev1
