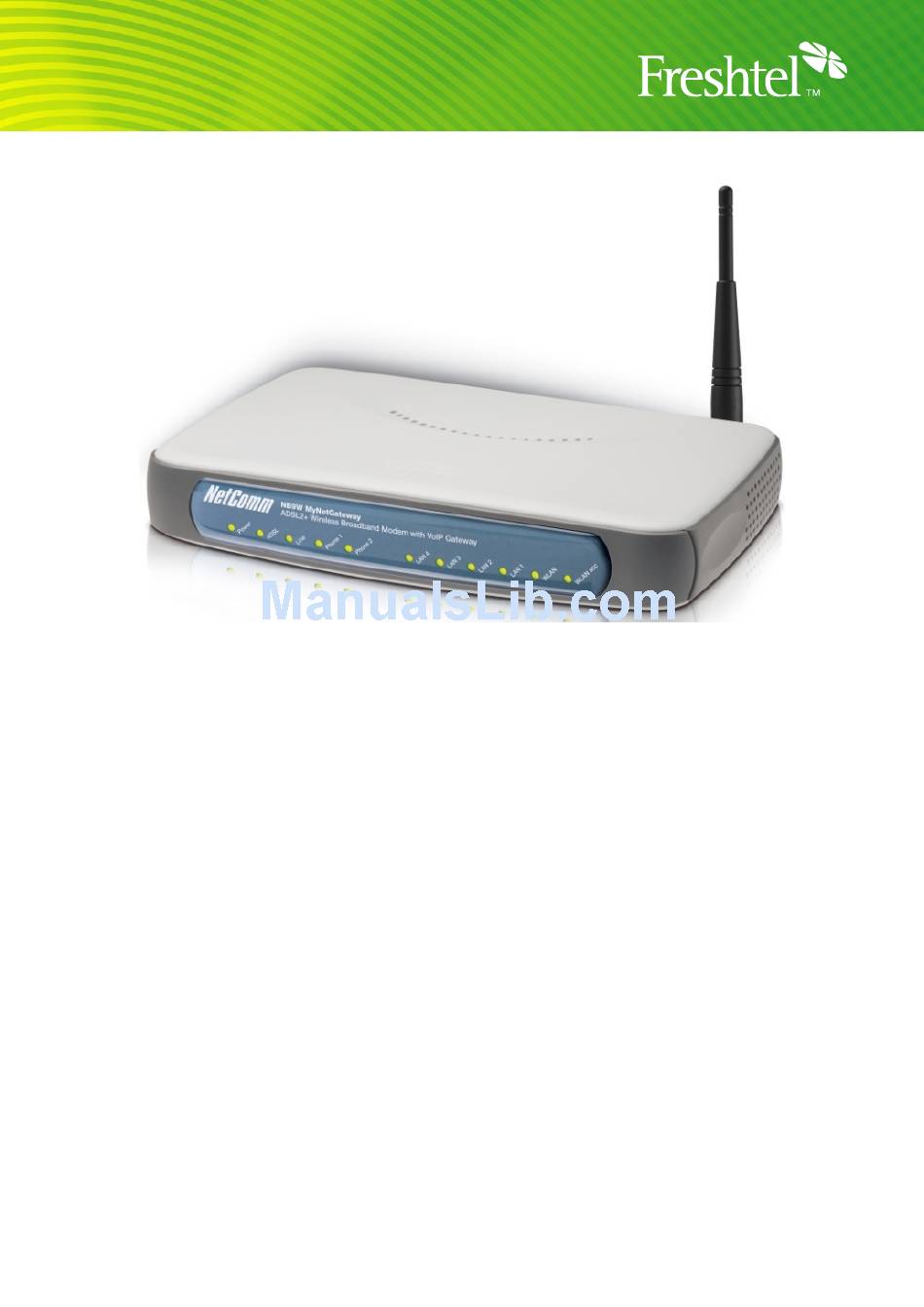

Netcomm NB9/NB9W
Configuration Guide

Minimum Requirements:

• Active Freshtel Internet Phone account
o http://www.freshtel.net
• ADSL Broadband Internet Connection
o 256/64 kbps minimum
• Analogue Telephone with RJ-11 line (Desktop or Cordless)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Freshtel NB9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NetComm Freshtel NB9

  • Page 1: Minimum Requirements

    Netcomm NB9/NB9W Configuration Guide Minimum Requirements: • Active Freshtel Internet Phone account o http://www.freshtel.net • ADSL Broadband Internet Connection o 256/64 kbps minimum • Analogue Telephone with RJ-11 line (Desktop or Cordless)
  • Page 2: Before You Begin

    Similarly, only register your Freshtel account on one line of the Netcomm, and not both lines. Figure 1.2 If you do not yet have a Freshtel account, you should go to our website at http://www.freshtel.net and register a new account before starting to configure...
  • Page 3: Initial Setup

    Initial Setup Before configuration, please refer to the Netcomm NB9/NB9W user guide for further information on how to connect the device to your network. If you require more advice, please contact your ISP for assistance with your ADSL connection or contact Freshtel Customer Care at info@freshtel.net NB9/NB9W Configuration Enter the Netcomm’s default IP address 192.168.1.1 in your browser’s...
  • Page 4 Voice Setup Figure 1.4 1. Select the VOICE menu. 2. Enter the following: a. LOCAL SELECTION: AUS – Australia b. USE SIP PROXY: Checked c. SIP PROXY: sip.freshtel.net d. SIP PROXY PORT: 5060 e. REGISTER EXPIRE TIME: 3600...
  • Page 5 Figure 1.5 f. DISPNAME: Your FRESHTEL Number (eg. 81118111) g. VOIP NUMBER: Your FRESHTEL Number h. AUTH. ID: Your FRESHTEL Number i. AUTH. PASSWORD: Your FRESHTEL Password j. ENABLE PASS ‘*’ FEATURE: Checked k. FAX MODE: Pass Through l. DIFFERENTIATE PSTN RING: m.
  • Page 6 Making Your Call Please refer to the following examples for making calls via your handset using the Netcomm. Examples FRESHTEL Number: 1. *8000 1234 Landline Number: 1. 61 3 9123 4567, or 2. 03 9123 4567, or 3. 9123 4567 (with local prefix set to relevant state) Mobile Number: 1.
  • Page 7 Setting Local Call Prefix on Your Account 1. Log into your account at http://www.freshtel.net 2. Click on MY ACCOUNT Figure 1.6 Figure 1.7...
  • Page 8 3. Click on UPDATE MY DETAILS Figure 1.8 3. Scroll down to the PREFIX section, and select from one of the following options a. “Not Specified” No Prefix set b. “NSW, ACT” c. “Queensland” d. “SA, WA, NT” e. “Victoria, Tasmania” 4.
  • Page 9 (upload rate). Ethernet – A type of cable which is used to connect network devices to allow • communication between them. Freshtel – VoIP Internet Telephone Company • KBPS – Kilobits Per Second is the measurement used to determine the •...
