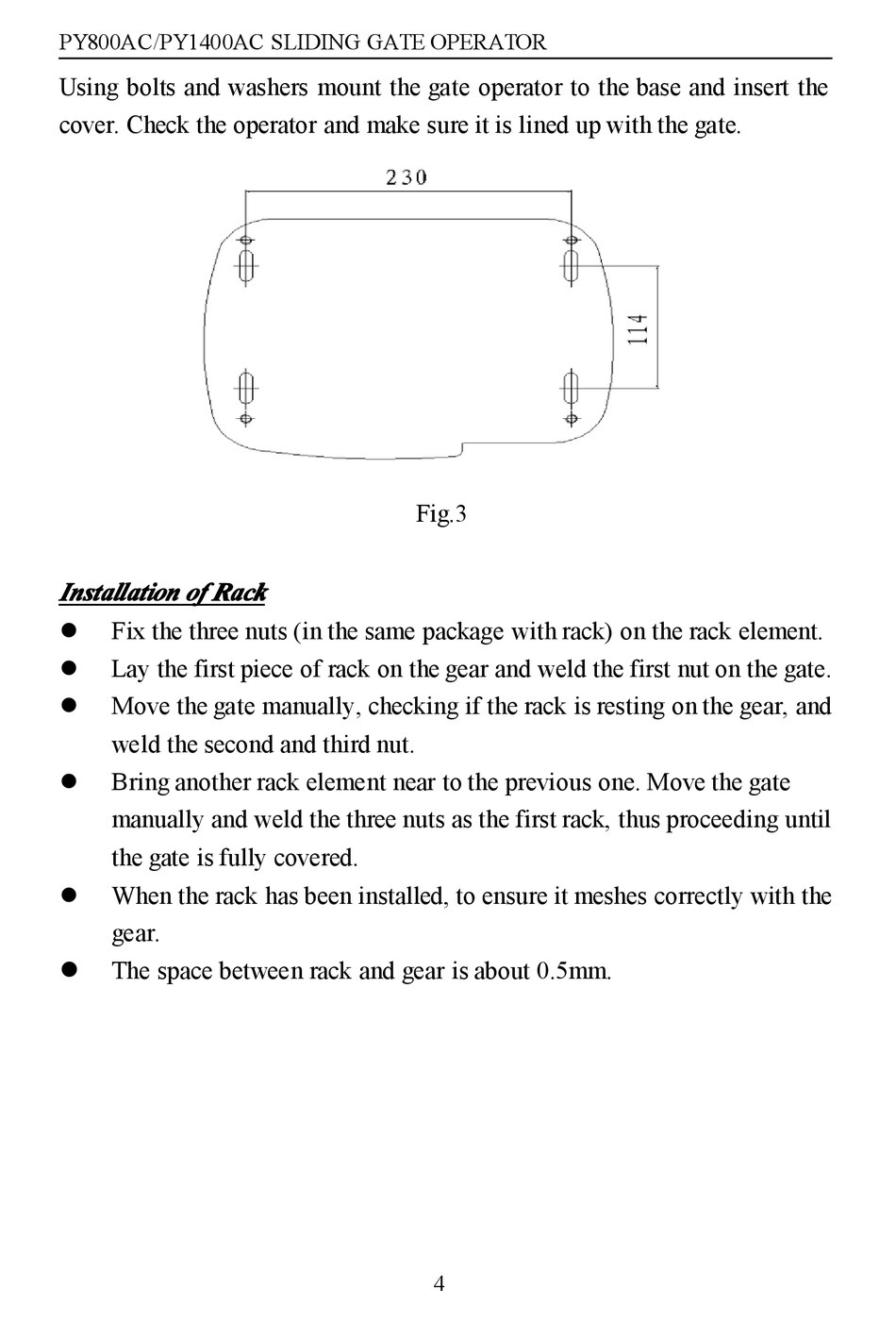

PY800AC/PY1400AC SLIDING GATE OPERATOR
Using bolts and washers mount the gate operator to the base and insert the
cover. Check the operator and make sure it is lined up with the gate.
Installation Installation of of of of Rack Rack
Installation Installation Rack Rack
�
Fix the three nuts (in the same package with rack) on the rack element.
�
Lay the first piece of rack on the gear and weld the first nut on the gate.
�
Move the gate manually, checking if the rack is resting on the gear, and
weld the second and third nut.
�
Bring another rack element near to the previous one. Move the gate
manually and weld the three nuts as the first rack, thus proceeding until
the gate is fully covered.
�
When the rack has been installed, to ensure it meshes correctly with the
gear.
�
The space between rack and gear is about 0.5mm.
Fig.3
4
