Control Board - JOYTECH PY800AC User Manual

PY800AC/PY1400AC SLIDING GATE OPERATOR
Signal
GND
24VDC
Infrared

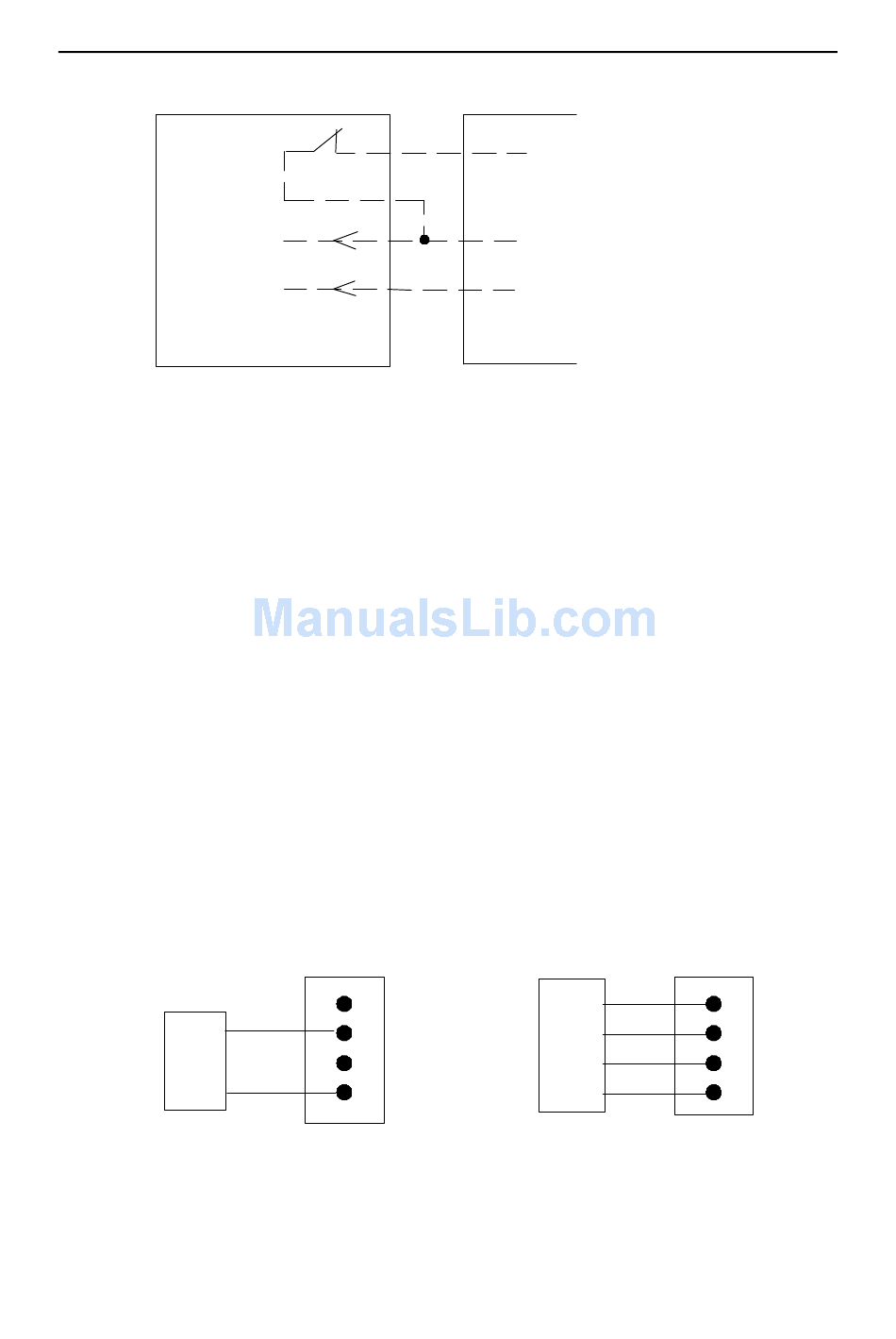

d. Three-button switch / single-button switch (keypad): The PY800AC/
PY1400AC is equipped with interfaces for three-button switch and
single-button switch (keypad).
To install the keypad attach one lead of your keypad to 'CLS' of
terminal X4 and the other to the 'COM'. The keypad will function in
single channel mode (the DIP switch 1 should be turn to OFF).
For three-button switch installation, use the terminals for multi-channel
mode. Connect open wire of external button switch to 'OPN' of
terminal X4, connect close wire of switch to 'CLS', connect stop wire
of switch to 'STP', connect common wire of switch to 'COM'.
Keypad
Single-button switch
Out
Infrared with DC input
Fig.9 infrared
Fig.9 Fig.9 Fig.9 infrared infrared infrared Schematic diagram
terminal X4
OPN
CLS
STP
COM

Control board

terminal block
Fig.10
10
I.R
Terminal X2
COM
24VDC
Control board
Open
Close
Stop
Common
Three-button switch
terminal X4
OPN
CLS
STP
COM
Control board
terminal block
