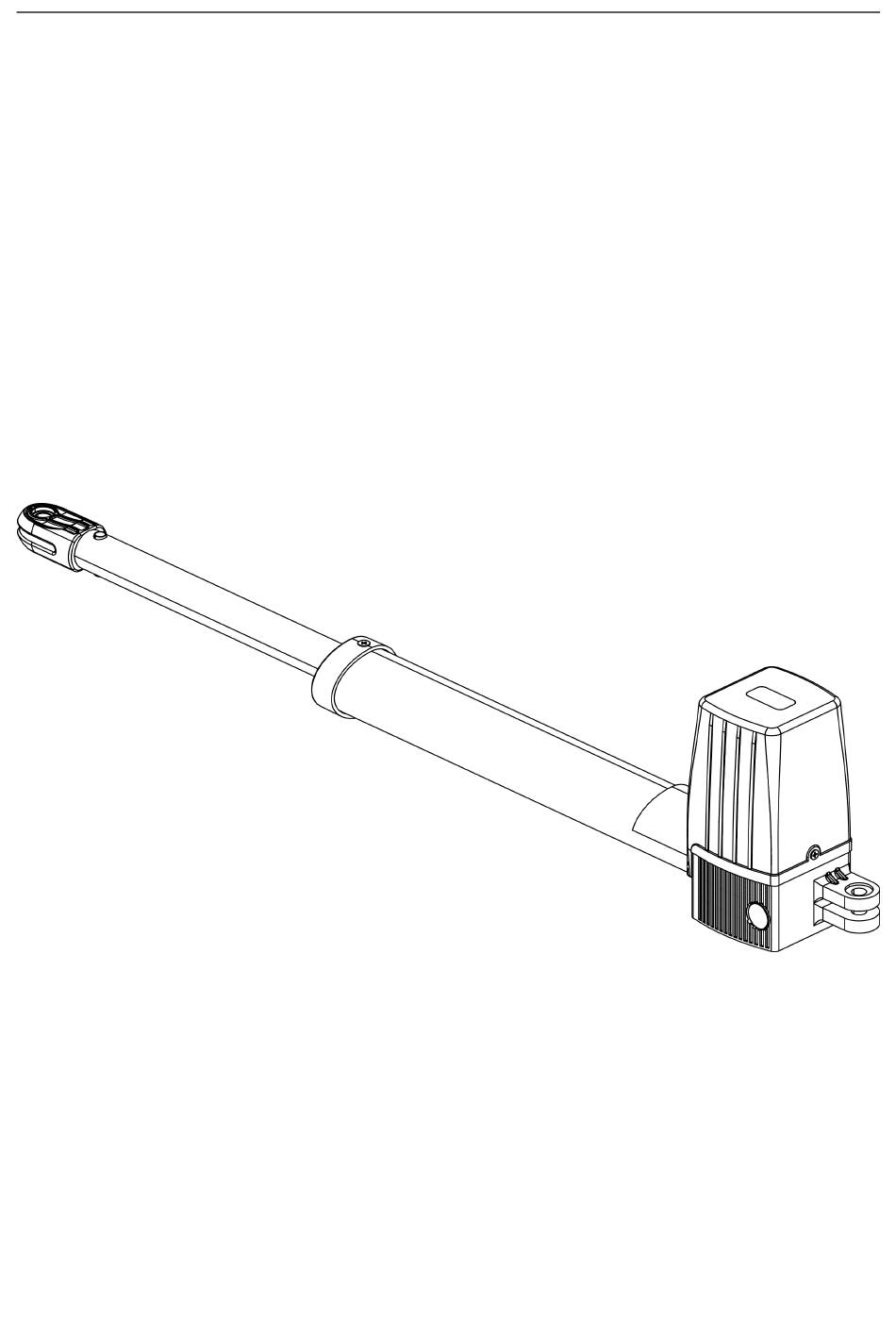

  • Page 1 PK300DC/PK350DC Swing Gate Opener User Manual 202001...

  • Page 2: Safety Instruction

    Dear users, Thank you for choosing this product. Please read the manual carefully before assembling and using it. Please do not leave out the manual if you send this product to a third party. 1. Safety Instruction Please ensure that the using power voltage matches with the supply voltage of gate opener (AC110V or AC220V);...
  • Page 3 2. Packing List (standard) Picture Name Quantity Main engine Manual release bar Remote control Control box Wall bracket Front mounting bracket Connecting bracket Mounting screw (short) Mounting screw (length) Screw M8×25 Nut M8...

  • Page 4: Technical Parameters

    2. Packing list (optional) Picture Name Quantity Infrared sensor Wireless keypad Alarm lamp Electronic lock Storage battery 3. Technical parameters PK300DC Model PK350DC 220V/50Hz;110V/60Hz Power supply 220V/50Hz;110V/60Hz Motor power 18~22 second per 90 (approx) Gate moving speed 18~22 second per 90 (approx) 300Kg Max.single-leaf weight...

  • Page 5: Installation Drawing

    19Kg 4. Installation PK300DC/PK350DC swing gate opener is applicable to single leaf gate weight less than 300kg, and length of the single leaf swing gate should be less than 2.5m/3m. The drive mode adopts the worm and worm gear to combine the screw rod transmission. This gate opener must be installed inside the enclosure or yard for protection.
  • Page 6 4.2 Size of main engine and accessories 4.2.1 Size of main engine PK300DC PK350DC Figure 2...

  • Page 7: Installation Steps

    PVC pipe laying motor, power cable, and control cables, and separate two PVC pipes to lay (motor and power cable) and (control cable), respectively. Mounting brackets In order to install the PK300DC / PK350DC main engines firmly, recommend to use the expansion screws to fix the mounting brackets. 4.3.2 Accessory a) Before installing the main engine, install the wall bracket on the wall, then fix the connecting bracket, and install the front mounting bracket on the door.
  • Page 8 Figure 4 b) The connecting bracket and the wall bracket can be connected according to different conditions, as shown in figure 5. Figure 5 Users shall prepare power cables for the control box and main engines, according to different installation environment, the power cable of the control box is not less than 3 cores, and the power cable of the control box with 2 cores.
  • Page 9 Figure 6 4.3.3 Main engine installation As shown in Figure 7, the tail of the main engine and the connecting bracket are fixed together through the installation of screws, and then manually adjust the telescopic arm to the appropriate length, and finally fix the telescopic arm connector and the front mounting bracket with the installation screws.
  • Page 10 Installation direction: door open facing inward (PK300DC) Note: Note: Limit Limit stopper stopper must must be be installed installed L=620+5 L=620+5 K ＜ 620+340 620+340 Figure 8 100 110 120 130 140 150 160 170 180 190 200 Max 120°...
  • Page 11 Installation direction: door open facing outward (PK300DC) Note: Note: Safety Safety stopper stopper must must be installed, installed, is is provied provied by by installer installer L=620+5 L=620+5 K ＜ 620+340 620+340 Note: Note: Limit Limit stopper stopper must must be...
  • Page 12 Installation direction: door open facing inward (PK350DC) Note: Note: Limit Limit stopper stopper must must be be installed installed L=820+10 L=820+10 K ＜ 820+540 820+540 Figure 12 100 120 140 160 180 200 220 240 260 280 300 Max 120° Max 110°...
  • Page 13 Installation direction: door open facing outward (PK350DC) Note: Note: It It is is recommended recommended to to install install with with a safety safety stopper stopper (should (should be be prepared prepared by by the the users users themselves) themselves) L=820+10 L=820+10 K ＜...
  • Page 14 4.3.4 Size of control box Figure 16 Warnings ·To ensure safety, when door open facing outward, the safety block must be installed at the OPEN limit position to prevent the door opening angle from exceeding the machine range; the safety stopper must be installed at the CLOSE limit position, to make two doors stopping at the CLOSE limit position accurately (as shown in figure 10, 14).
  • Page 15 5. Wiring and Debugging 5.1 Wiring Instructions Figure 11...
  • Page 16 5.2 Control Board Drawing and Instructions Figure 12 Terminal Description 1. AC24VIN 24VAC Power Supply Input 2. +SOLAR- Solar Power Input 3. +BATT- 24V Battery Input 4. FORCE Resistance Force 5. SLOW DOWN Slow Stop Distance 6. SPEED Moving Speed 7.
  • Page 17 Figure 13 WIFI Module Wiring Instructions Figure 14...
  • Page 18 The buzzer is enabled The buzzer function is disabled...
  • Page 19 5.3 Digital Screen Setting When the control board is working, the users can check working state of gate opener by digital screen on the control board. : no input; : under opening state; : under closing state; :manual mode; : travel setting; 5.4 Travel Setting (VERY IMPORTANT) In the first installation of gate openers, the installer need to set open and closed limit switch positions for running the travel.
  • Page 20 5.5 Trimmers Setting Obstacle Sensibility Trimmer To adjust the sensitivity of obstacle -- clockwise to increase, counterclockwise to reduce the sensitivity of obstacle. If there are environmental effects, such as heavy winds, adjust the trimmer according to environment. Slow Speed Distance Trimmer To adjust slow speed distance -- clockwise to increase, counterclockwise to decrease slow speed distance.
  • Page 21 Press and hold the combination keys for 5S. C(stop)+D(single gate) combination key -- enter into remote control learning. 5.7 Control Board Settings 5.7.1 Base Menu Press "PROG" to enter into base menu; Digital screen shows “NE”, select other functions of this menu by “+” and “-” buttons. Press "SET"...
  • Page 22 15 seconds (default) Automatic closing time Dual gates single channel mode Remote control mode Four channel mode Single gate single channel mode Delete remote control Low consumption mode on Low consumption mode Low consumption mode off...
  • Page 23 5.7.2 Base Menu Instruction Menu Option Default/Attention Press "PROG" to enter Press “+”(up) or “-”(down) to select; into base menu. Press “SET” to confirm. Standard mode; O/C/S (Open/Close/Stop). O/S/C standard mode with automatic closing function. When the gate opens, it will automatically close after automatic closing time.
  • Page 24 Dual gates mode(default). Dual gates mode. Single Gate/Dual Gates Switch Single gate mode. 00-10: Open gate time interval is 0-10 seconds(default 3 seconds). If the interval 3 seconds. Open Gate Time Interval shorter than 2 seconds, then the electric lock cannot be used.
  • Page 25 Low consumption mode on （When there is no operation in the initial screen, the control board will automatically enter the Low consumption mode low-consumption mode Low consumption after 1 minute.） mode on Low consumption mode off 5.7.3 Advanced Menu Instruction Long press "PROG"...
  • Page 26 Alarm lamp normally on Alarm lamp Alarm lamp normally flash SW400DC SW300DC Gate opener SW200DC secection PK300DC Gate Opens Inwards Direction of the Gate Opens Outwards door  Factory default setting Factory default setting Default setting cancellation...
  • Page 27 5.7.4 Advanced Menu Instruction Menu Option Default/Attention Long press "PROG" 2 seconds Press “+”(up) or “-”(down) to select; to enter into base menu. Press “SET” to confirm. Time of of gate1 After automatic learning, if the stroke is not ideal, it can be adjusted manually.
  • Page 28 Alarm lamp normally is on. 24V power supply. Alarm Lamp Alarm lamp normally flashes. 24V power supply. SW400DC. SW300DC. (Default) PK300DC. Gate Opener Secection SW200DC. PK300DC. Gate Opens Inwards (Default) Gate Opens Inwards Direction of the door Gate Opens Outwards Cancel factory default setting.
  • Page 29 Errors that may occur when the door is operating properly. Wrong Indication Cause of Error Solution 1. Check whether there are obstacles  when opening door 1 Door 1 Obstructed in opening 2. Adjust resistance sensitivity appropriately  3. Increase deceleration distance appropriately 1.
  • Page 30 1. Check the infrared setting status Infrared disconnect 2. Whether there are occlusions in the infrared Door 1 closes before door 2 1. Relearn your itinerary 2.Adjust the opening time interval 1. Check whether you have completed the The motor works for too long itinerary 2.Hall component damage No study itinerary...

  • Page 31: Troubleshooting

    1.Check whether the transformer power is 1.Motor output force is not enough. The gate moves to the middle normal, if not, change the transformer. 2.Sensitivity of obstacle is too high. position to stop or reverse. 2.Adjust the TR2. 3.Gate meets obstacle. 3.Remove the obstacle. PK400DC-A3(PK300DC)
