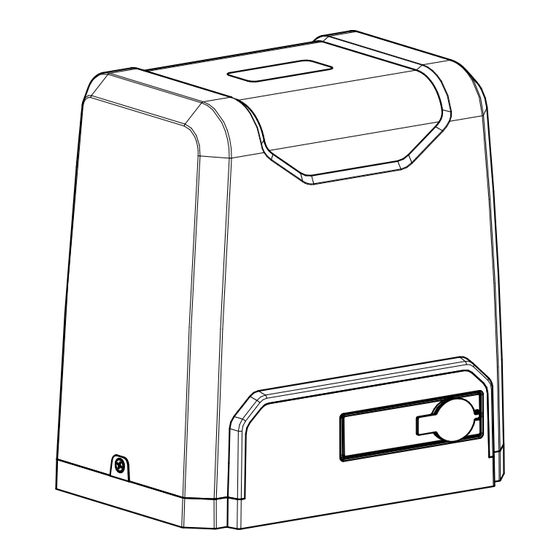

SL1000AC/SL1500AC
Sliding Gate Opener
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL1000AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JOYTECH SL1000AC

Summary of Contents for JOYTECH SL1000AC

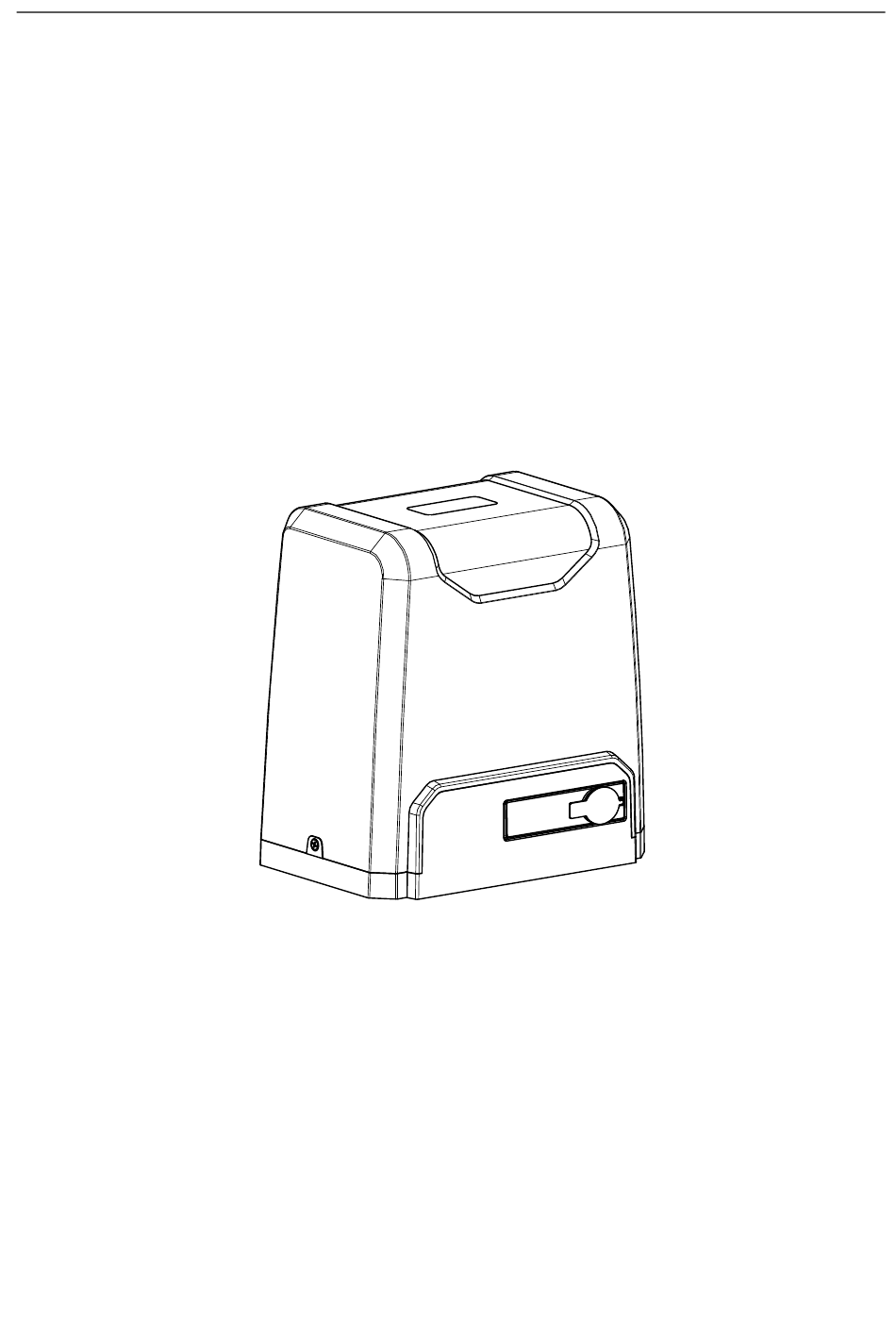

  • Page 1 SL1000AC/SL1500AC Sliding Gate Opener User Manual...

  • Page 2: Safety Instruction

    Dear users, Thank you for choosing this product. Please read this manual carefully before installation and use. Please do not forget to include this manual if you send the product to a third party. 1. Safety Instruction Please make sure that the power voltage being used matches with the supply voltage of gate opener (AC110V or AC220V);...
  • Page 3 2. Packing List (standard) Picture Name Quantity Main engine Manual release key Remote control Spring limit switch accessories box / Magnetic limit switch accessories box Spring limit switch block / Magnetic limit switch block Foundation bolt M10 Spring limit switch block mounting screw M6X10 / Magnetic limit switch block mounting screw M6X18...

  • Page 4: Technical Parameters

    Quantity Steel gear rack 1m/pc Nylon gear rack 1m/pc Infrared sensor Wireless keypad Alarm lamp Mounting plate Hexagon head bolt M10×60 3. Technical parameters SL1000AC Model SL1500AC Power supply 220V/50Hz;110V/60Hz 220V/50Hz;110V/60Hz Motor power 400W 550W Gate moving speed 11-13m/min 11-13m/min...

  • Page 5: Installation Drawing

    16Kg 4. Installation SL1000AC/SL1500AC sliding gate opener is applicable to gate weight less than 1000kg/1500kg, and length of the sliding gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
  • Page 6 Please precast a concrete pedestal with the size can be 500mm x 300mm, depth be 250mm in Please make sure the advance, so as to firmly install SL1000AC/SL1500AC gate opener. distance between the gate and gate opener is appropriate before casting the...
  • Page 7 Embedded screws Mounting plate Foundation bolt Concrete Power line Figure 4 4.3.2 Main engine installation a) Dismantle the plastic housing on the main engine before installation and keep the relevant fasteners properly; b) Please prepare the power line for connecting the mounting plate to the main engine (the number of power supply cable cores should not be less than 3 PCS, the sectional area of cable core should be over 1.5mm²...
  • Page 8 Make sure that all racks on the same straight line.  Pull the gate after installed, make sure the entire trip is flexible without any stuck.  Figure 6 The fit clearance of output gear and rack is shown in Figure 7 below: Gear Gear rack rack...

  • Page 9: Limit Switch Adjustment

    4.3.4 Limit switch adjustment Spring limit switch - The installation position of spring limit switch is shown in Figure 8: Gate Gate Spring Spring limit limit switch switch Spring Spring limit limit switch switch stop stop block block Gear Gear rack rack Output Output gear...
  • Page 10 Magnetic limit switch - The installation position of magnetic limit switch is shown in Figure 10: Gate Gate ≤20mm Magnets Magnets Magnetic Magnetic limit limit switch switch stop stop block block Gear Gear rack rack Output Output gear gear Figure 10 The installation of magnetic limit switch stop block is shown in Figure 11: Right side mounting Left side mounting...

  • Page 11: Wiring Instruction

    4.3.5 Control board wiring 4.3.5.1 Standard control board Earth Earth Power Lamp Lamp Capacitor Capacitor Motor Motor Power D2 D1 D1 C C W U V PE PE N L Remote Remote control control learning learning button button DIP Switch Switch 10A 250V 250V...
  • Page 12 3. Automatic close time. Setting for automatic close time: 2 ON 3 OFF: automatic close time is 15s, 2 OFF 3 ON: automatic close time is 30s, 2 OFF 3 OFF: automatic close time is 45s, 2 ON 3 ON: no automatic close function. Infrared connection Infrared photocell function: In the closing process, when infrared ray of the photocell is covered by people or objects during its detection range, the gate will open immediately for security protection.
  • Page 13 Adjustment and operation Remote control operation Three button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by three buttons separately on the remote control. Single button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by one button circularly on the remote control. OPEN OPEN CLOSE...
  • Page 14 4.3.5.1 Intelligent control board Hall Hall line line Open Open limit limit switch switch Close Close limit limit switch switch Loop Loop detetcor detetcor Infrared Infrared sensor sensor 12VDC 12VDC Pedestrian Pedestrian switch switch Capacitor Capacitor O/S/C O/S/C switch switch Stop Stop control control button...
  • Page 15 light) 7. Power supply for fittings: +12VDC Electric current ≤100mA） （ 8. Photocell input (N.C.); short out the device with terminal 9(GND) if not used. 9. GND 10. Loop detector (sensor coil) connector (N.O.) In the closing process, once vehicles are detected by the loop detector, the gate will open immediately;...
  • Page 16 Rotate to the minimum to cancel the slow stop function. VR4: For motor output force adjustment to ensure safety. Clockwise rotation to increase, counter-clockwise rotation to reduce. Note: The default setting is VR1, VR2, VR3, VR4 are the maximum value, and the user can adjust according to the actual requirement.
  • Page 17 Adjustment and operation Remote control operation Three button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by three buttons separately on the remote control. Single button mode remote control: OPEN/CLOSE/STOP of main engine are controlled by one button circularly on the remote control. OPEN OPEN CLOSE...

  • Page 18: Troubleshooting

    5.2 Troubleshooting Problems Possible Reasons Solutions 1.Switch on the power supply. 1.The power is off. The gate cannot open or 2.Check the fuse (code FU), 2.Fuse is burned. close normally, and LED change the fuse if burnt. 3.Control board power wiring with does not light.

  • Page 19: Warranty

    Connect external receiver Remote control working Signal is blocked. antenna, 1.5 meters above distance is too short. ground. 1.Motor output force is not enough The gate moves to the (Intelligent type). 1.Adjust the VR4. middle position to stop 2.Sensitivity of obstacle is too big 2.Adjust the VR1.
