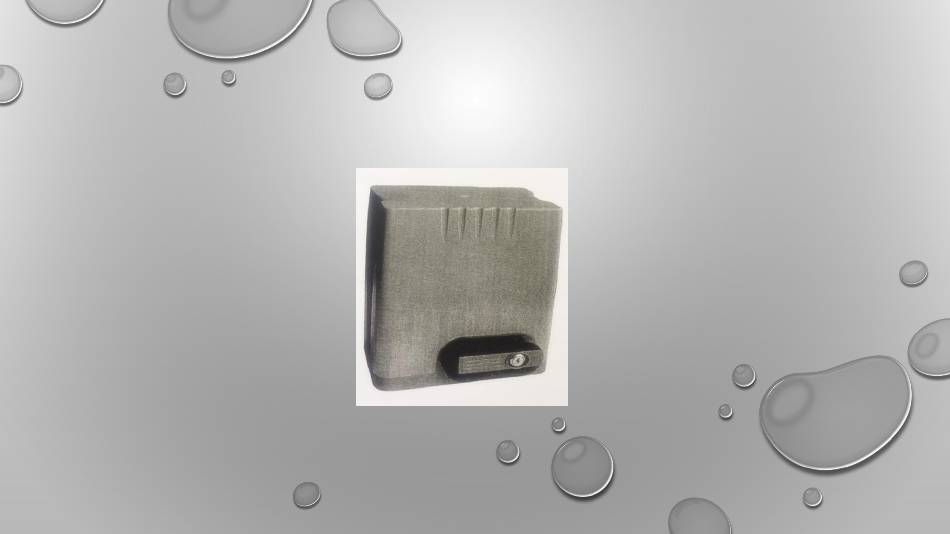

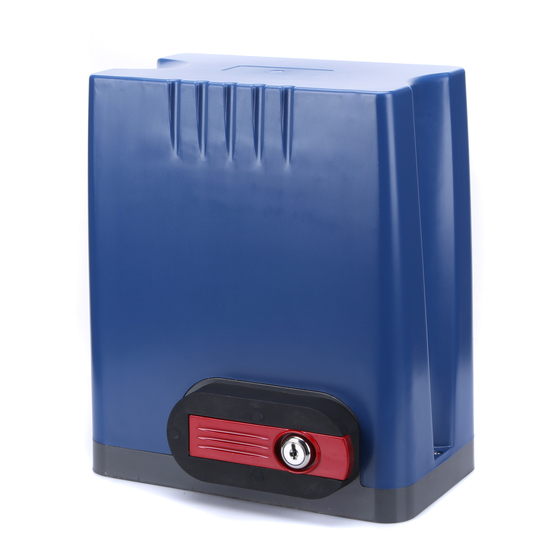

DKC500DC GATE OPENER
ORIGINAL OPERATING INSTRUCTIONS
DEAR CUSTOMER,
THANK YOU FOR PURCHASING THIS PRODUCT. PLEASE READ ALL THE INSTRUCTIONS IN THIS
MANUAL CAREFULLY, BEFORE YOU ASSEMBLE OR USE THE PRODUCT. SHOULD YOU PASS ON THIS
PRODUCT TO THIRD PARTIES, PLEASE HAND OVER THE INSTRUCTION MANUAL ALONG WITH IT.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKC500DC and is the answer not in the manual?

Questions and answers

Alain tallet
June 20, 2025

Power on but motor not working when press the remote

0
1 comments:
Mr. Anderson
August 21, 2025

If the JOYTECH DKC500DC powers on but the motor does not work when the remote is pressed, possible issues include:

1. The motor direction may be wired incorrectly. To fix this, reverse the motor operating direction by exchanging the red and black wires at terminal J4 and also exchange OP and CL at terminal J10.

2. The remote control may not be properly paired. To pair it, press and hold the learn button (K4) for more than 2 seconds until the LED turns on, then press the desired button on the remote. The LED will turn on for about 2 seconds and then turn off, confirming pairing.

3. The remote control may have been erased. Re-pair the remote using the learning procedure.

4. The motor output force may be set too low. Adjust VR2 (for opening) or VR3 (for closing) by turning clockwise to increase force.

5. The gate may be in manual mode. Make sure the relief handle is locked in the upright position to enable motor operation.
