  • Page 1 SW200DC Swing Gate Opener User Manual...

  • Page 2: Safety Instruction

    Dear users, Thank you for choosing this product. Please read the manual carefully before assembling and using it. Please do not leave out the manual if you send this product to a third party. 1. Safety Instruction Please read this manual carefully before installation, in which involves with important information about ...
  • Page 3 2. Packing List (Standard) Picture Name Quantity Main machine Control box Manual release key Remote control Wall bracket Front mounting bracket Connecting bracket Cotter pins T-shaped cylindrical pin with hole Screw M8X25 Mounting screw (short) Self-locking Nut M8 Limit stopper...

  • Page 4: Technical Parameters

    Due to the difference of installation environment, our company does not provide the installation accessories to fix and connect gate openers and wall. Please prepare the these installation accessories according to actual site situation. 3. Technical Parameters Model SW200DC Power supply 220V/50Hz;110V/60Hz Motor power 18~22s/ 90°...

  • Page 5: Installation Drawing

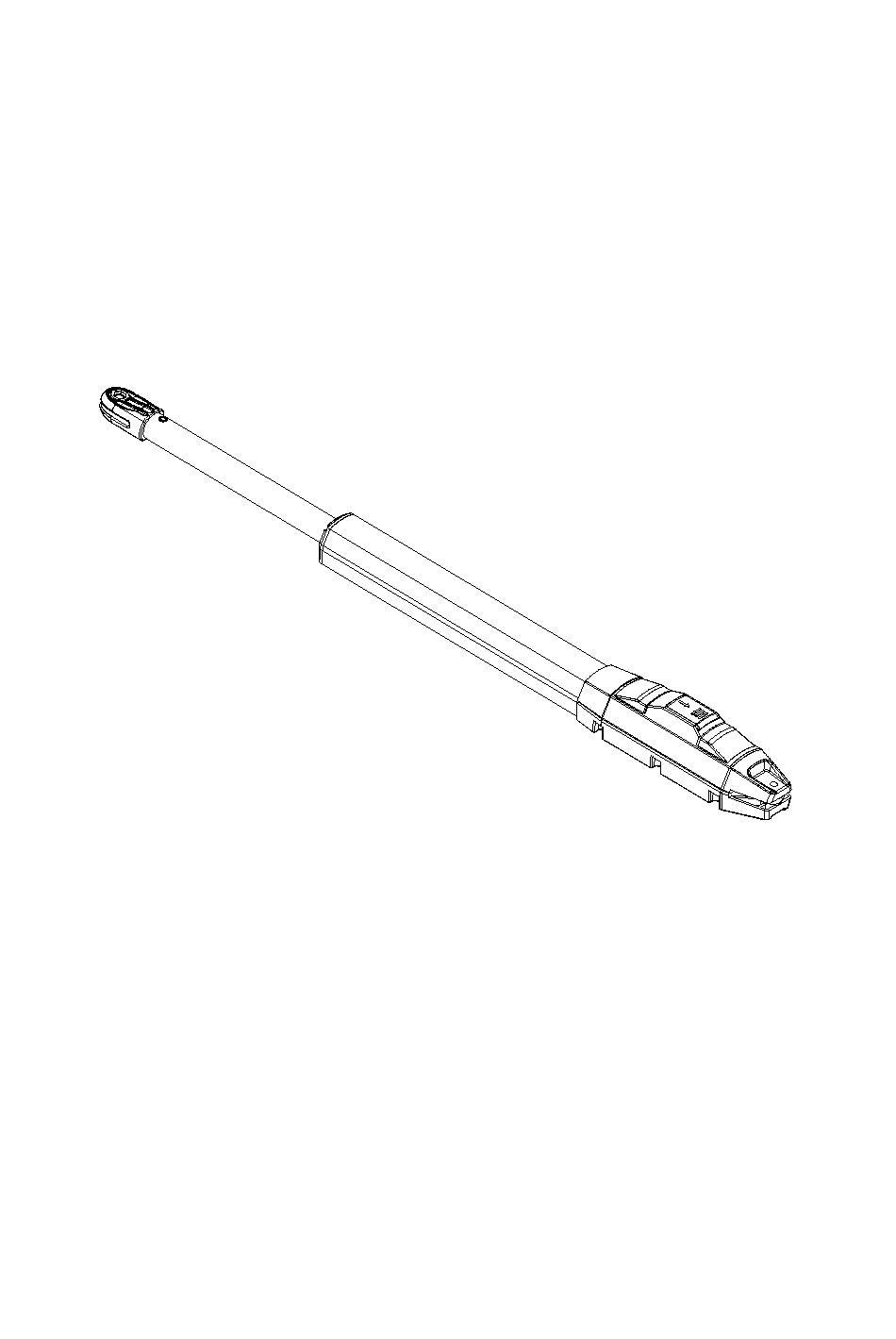

    4. Installation Drawing Figure 1 SW200DC swing gate opener is applicable to single leaf gate weight less than 200kg, and the length shorter 2m. The drive mode adopts planetary transmission to combine with the screw rod transmission. than This gate opener must be installed inside the enclosure or yard for protection.

  • Page 6: Cable List

    6. Cable List Cable Application Cable Material Max. Length 3×2.5mm² (＞30m) Cable of 220V controlbox’s power supply Unlimited 3×1.5mm² (＜30m) Cable of gate opener’s power supply 2×1.5mm² Cable of infrared sensor 2×0.5mm² Cable of alarm lamp 2×0.5mm² Cable of electric lock 2×0.5mm²...

  • Page 7: Direction Of Gate Opening

    7. Direction of Gate Opening 7.1 Gate Opens Inwards Limit stopper 限位挡块 Gate opening direction 开门方向 Safety stopper 开门位置安全挡块 Figure 2 Recommended Installation Size: 100mm 120 mm 140 mm 160 mm 180 mm 200 mm 100mm 103° 111.5° 118.5° 120.5° 108°...
  • Page 8 7.2 Gate Opens Outwards 开门到位位置必须安 Safety stopper 装安全挡块 Gate opening direction 开门方向 Limit stopper 限位挡块 Figure 3 Recommended Installation Size: 100mm 120 mm 140 mm 160 mm 180 mm 200 mm 100mm 103° 101° 99.5° 98.5° 97.5° 97° 120mm 111.5° 108.5°...

  • Page 9: Installation Steps

    Mounting Brackets Fixing In order to install the SW200DC main machines firmly, it is recommended to use the expansion screws to fix the mounting brackets. 8.2 Accessory Installation A) Before installing the main machines, please install the wall bracket on the wall first, then fix the connecting bracket, finally install the front mounting bracket on the gate.
  • Page 10 Connect the connecting bracket and two wall brackets, please refer to Figure 5. Figure 5 B) The connecting bracket and the wall bracket can be connected according to different conditions, please refer to figure 6. Figure 6 C) Before the installation, please unlock the two main machines. Unlock method: Open the manual release cover, insert the manual release key, rotate the key until it’s released, as shown in Figure 7, then turn the telescopic arm, you’ll find it’s stretched by hand easily.
  • Page 11 D) Connect the main machine with connecting brackets by screw and nut as shown in Figure 8. Figure 8 E) As shown in figure 9 below, connect wall bracket with wall according to marked position. Then, connect main machine with wall bracket by screw and nut. (Please use spirit level to make sure the installation levelness.) Mouting screw(short)
  • Page 12 安 装 螺 钉 （ 短 ） 前 安 装 板 Front mounting bracket Self-locking nut M8 M 8 自 锁 螺 母 Figure 9 8.3 Dimension of Control Box 170mm 78.75mm Figure 10 Note  To ensure safety and protect the machines, please install a gate stopper at the open limit position when the gate opens outward to prevent the gate from running over its travel.
  • Page 13 Before installing the main machine, please make sure the main machine and components are in  good mechanical performance and the gate can be manually operated flexibly.  One control unit can optionally drive one main machine or two main machines. ...
  • Page 14 9. Wiring and Debugging 9.1 Wiring Instructions Figure 11...
  • Page 15 9.2 Control Board Drawing and Instructions Figure 12 Terminal Description 1. AC24VIN 24VAC Power Supply Input 2. +SOLAR- Solar Power Input 3. +BATT- 24V Battery Input 4. FORCE Resistance Force 5. SLOW DOWN Slow Stop Distance 6. SPEED Moving Speed 7.
  • Page 16 Photo Seneor Wiring Instructions Figure 13 WIFI Module Wiring Instructions Figure 14...
  • Page 17 9.3 Digital Screen Setting When the control board is working, the users can check working state of gate opener by digital screen on the control board. : no input; : under opening state; : under closing state; :manual mode; : travel setting; 9.4 Travel Setting (VERY IMPORTANT) In the first installation of gate openers, the installer need to set open and closed limit switch positions for running the travel.
  • Page 18 9.5 Trimmers Setting Obstacle Sensibility Trimmer To adjust the sensitivity of obstacle -- clockwise to increase, counterclockwise to reduce the sensitivity of obstacle. If there are environmental effects, such as heavy winds, adjust the trimmer according to environment. Slow Speed Distance Trimmer To adjust slow speed distance -- clockwise to increase, counterclockwise to decrease slow speed distance.
  • Page 19 Figure 16 9.6.3 Special Remote Control Key-button Press and hold the combination keys for 5S. C(stop)+D(single gate) combination key -- enter into remote control learning. 9.7 Control Board Settings 9.7.1 Base Menu Press "PROG" to enter into base menu; Digital screen shows “NE”, select other functions of this menu by “+” and “-” buttons. Press "SET"...
  • Page 20 3 seconds (default) Open gate time interval 15 seconds (default) Automatic closing time Dual gates single channel mode Remote control mode Four channel mode Single gate single channel mode Delete remote control Low consumption mode on Low consumption mode Low consumption mode off...
  • Page 21 9.7.2 Base Menu Instruction Menu Option Default/Attention Press "PROG" to enter Press “+”(up) or “-”(down) to select; into base menu. Press “SET” to confirm. Standard mode; O/C/S (Open/Close/Stop). O/S/C standard mode with automatic closing function. When the gate opens, it will automatically close after automatic closing time.
  • Page 22 Dual gates mode(default). Dual gates mode. Single Gate/Dual Gates Switch Single gate mode. 00-10: Open gate time interval is 0-10 seconds(default 3 seconds). If the interval 3 seconds. Open Gate Time Interval shorter than 2 seconds, then the electric lock cannot be used.
  • Page 23 Low consumption mode off 9.7.3 Advanced Menu Instruction Long press "PROG" 2 seconds to enter into advanced menu. Digital Screen shows “TL”, press “+”(up) or “-”(down) to select; Short press “SET” to confirm or to enter into sub-menu. Short press “PROG” to exit. If no command for one minute, the menu will automatically exit.
  • Page 24 Alarm lamp normally on Alarm lamp Alarm lamp normally flash SW400DC Gate opener secection SW300DC...
  • Page 25 SW200DC  Gate Opens Inwards  Direction of the door  Gate Opens Outwards  uninitialize   Factory initialization   Complete initialization  9.7.4 Advanced Menu Instruction Menu Option Default/Attention Long press "PROG" 2 seconds Press “+”(up) or “-”(down) to select;...
  • Page 26 Alarm lamp normally is on. 24V power supply. (Default) Alarm lamp normally is on. 24V power supply. Alarm Lamp Alarm lamp normally flashes. 24V power supply. SW400DC. SW300DC. SW200DC. Gate Opener Secection SW200DC. (Default) PK300DC...
  • Page 27 Gate Opens Inwards (Default) Gate Opens Inwards Direction of the door Gate Opens Outwards Cancel factory default setting. Factory Default Setting Factory default setting completes. 10. Others 10.1 Maintenance Check whether the gate operates normally every month. For the sake of safety, each gate is suggested to be equipped with infrared protector, and regular inspection is required as well.
  • Page 28 1. Check whether there are obstacles  when door 1 is closed 2. Adjust resistance sensitivity Door 2 is closing with difficulty  appropriately 3. Increase deceleration distance appropriately 1. Check whether there are obstacles when door 2 is closed Door 2 is closing with difficulty 2.

  • Page 29: Troubleshooting

    10.3 Troubleshooting Problems Possible Reasons Solutions 1.The power is off. The gate cannot open or close 1.Switch on the power supply. 2.Fuse is burned. normally, and Display does not 2.Check the fuse, change the fuse if burnt. 3.Control board power wiring with light.

  • Page 30: Maintenance Record

    Warranty Ordinance 1. To repair against this warranty card and invoice during the warranty period. 2. Warranty period: 1 year after the date of invoice. 3. Without unauthorized dismantling, any product broken or damage due to quality problem, we’ll offer the repair service for free or replace for free.
