PY800AC/PY1400AC SLIDING GATE OPERATOR

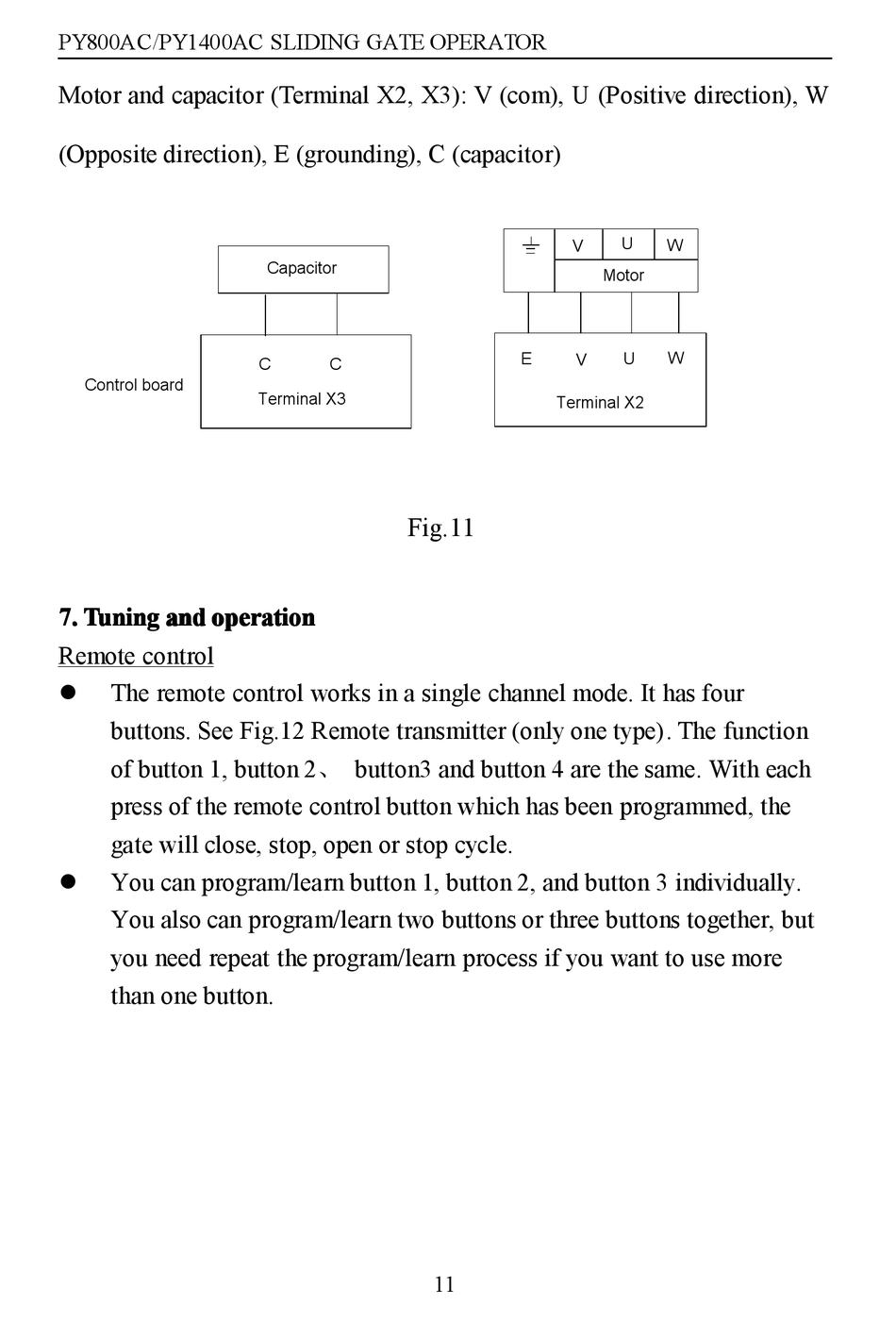

Motor and capacitor (Terminal X2, X3): V (com), U (Positive direction), W
(Opposite direction), E (grounding), C (capacitor)
Control board
7. 7. 7. 7. Tuning Tuning Tuning and and operation operation
Tuning and and operation operation
Remote control
�
The remote control works in a single channel mode. It has four
buttons. See Fig.12 Remote transmitter (only one type). The function
of button 1, button 2、 button3 and button 4 are the same. With each
press of the remote control button which has been programmed, the
gate will close, stop, open or stop cycle.
�
You can program/learn button 1, button 2, and button 3 individually.
You also can program/learn two buttons or three buttons together, but
you need repeat the program/learn process if you want to use more
than one button.
Capacitor
C C
Terminal X3
Fig.11
V
E
V
Terminal X2
11
U
W
Motor
W
U
