Sliding Gate Opener
User Manual
SL600ACL
WARNING
Instructions must be read before installation. Please follow these instructions carefully,
incorrect installation could affect gate operation.
When mounting and positioning this product please ensure the power cable is unplugged.
The motor cover will need to be removed to mount the motor to the mounting plate or
directly to the concrete footing. Any changes to the settings on this product can only be
made by a licensed electrician. This product is only powered by AC110V power supply; DC
backup battery or solar power is not compatible.
Advertisement
Related Manuals for JOYTECH SL600ACL
Summary of Contents for JOYTECH SL600ACL
- Page 1 Sliding Gate Opener User Manual SL600ACL WARNING Instructions must be read before installation. Please follow these instructions carefully, incorrect installation could affect gate operation. When mounting and positioning this product please ensure the power cable is unplugged. The motor cover will need to be removed to mount the motor to the mounting plate or directly to the concrete footing.
-
Page 2: Table Of Contents
CONTENTS Default Setting Instruction......................1 Safety Instruction..........................2 Parts List............................3 Technical Parameters........................5 Installation............................5 Before You Start..........................5 Tools Required / Example Sliding Gate………................6 Step 1 - Gate Preparation......................6 Step 2 - Checking Manual Release.....................7 Step 3 - Removing / Installing Motor Cover.................7 Step 4 – Motor Pad Footing......................8 Step 5 - Fitting Mounting Base and Motor..................8 Step 6 - Sprocket and Chain &... -
Page 3: Default Setting Instruction
Default Setting Instruction The gate opener will open the gate to the right-hand side as its default setting. By default, the opener mounts on the right-hand side. (Figure 1) Gate in closed position Gate in open position Figure 1 Before installation: Test the gate opener by plugging it into a power source and pressing the remote. -
Page 4: Safety Instruction
Safety Instruction Warning: Incorrect or improper use of this product can cause damage to persons, animals or properties. · Please ensure that the input voltage used matches with the supply voltage of gate opener. · All modifications to wiring or electrics, and any adjustment or maintenance to input voltage must be done by a qualified electrician. -
Page 5: Parts List
Parts List Parts List (standard configuration) Picture Name Quantity Motor Manual Release Keys Remote Controls Mounting Accessories Box Sprocket Cover Chain(Including 2 Chain Links) Tie Rod Square Screw Round Screw Door Connecting Plate Horizontal Mounting Plate Vertical Mounting Plate Foundation Bolts M10... - Page 6 Picture Name Quantity Limit Switch Stop Bracket Magnetic Limit Switch Stop Hexagon Head Bolt M6X65 4-10 Nut M8 Flat Washer φ8 Spring Washers φ8 4-11 Inner Hexagon Head Bolt M6X20 4-12 Hexagon Head Bolt M8X40 Nut M6 4-13 Nut M8 Flat Washer φ6 4-14 Flat Washer φ8...
-
Page 7: Technical Parameters
Before You Start · SL600ACL Sliding Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 600kg in weight, up to a length of 12m. (Standard kit contains a 6m chain, if the gate length is over 5.5m, please consider to extend the length of the chain.) ·... -
Page 8: Tools Required / Example Sliding Gate
Tools Required · Tape measure · Level · 12mm concrete drill and hammer (when uses expansion screws) · Phillips head screwdriver · Straight screwdriver Example Sliding Gate Gate Track and Track Wheels Gate End Catch Gate Guide Rollers Gate Stop Figure 4 Please ensure that the gate opener power cable is not plugged in at any stage before Step 8. -
Page 9: Step 2 - Checking Manual Release
Step 2 - Checking Manual Release · Insert the key and open the manual release bar to enable the motor get into manual mode and check that the motor output sprocket rotates freely by hand (Figure 6). To make the motor into manual mode, insert the key In manual mode, the sprocket can turn and open the manual release bar as shown. -
Page 10: Step 4 - Motor Pad Footing
Please Note: the rubber grommet must be fitted back onto the motor cover once the cover has been re-fitted/replaced onto the base of the motor. Step 4 - Motor Pad Footing · The motor pad concrete footing requires an area of no less than 500mm long x 350mm wide and a minimum depth of 200mm (Standard requirement). - Page 11 Spring Washer Flat Washer Flat Washer Figure 11 Fitting Motor · Fit motor and mounting base on the concrete footing. · Ensure the motor output sprocket and chain are correctly aligned. Sprocket and chain should be centered as much as possible. ·...
-
Page 12: Step 6 - Sprocket And Chain & Motor Alignment
Figure 12 Step 6 - Sprocket and Chain & Motor Alignment · Ensure output sprocket and chain are correctly aligned. Under no circumstances should the gate opener output sprocket carry any weight of the gate. It is the task of the gate castors or wheels to carry the weight of the gate. -
Page 13: Step 7 - Limit Switch Stops
Sprocket Chain Figure 14 Step 7 - Limit Switch Stops Included in your gate opener kit are two limit switch stops which must be fitted on your gate to ensure safe operation. × The limit switch stops are designed to set the desired opening and closing position of your gate. -
Page 14: Open Position
Magnetic limit switch switch Open Position · Position gate 150-200mm back from the gate stop open position. This will help in making sure you do not slam the gate into the end stop/catch when setting the open position under power. ·... -
Page 15: Step 8 - Powering On
Open Position Limit Switch Stop Closed Position Limit Switch Stop Motor Magnet Gate To Reset: Turning the power off will reset the limit switch stop memory. Power on the gate opener again, pressing remote control or external push button switch to open and then close the gate once, then new limit switch stop setting is completed. -
Page 16: Step 9 - Testing Travel And Limit Stops
Step 9 - Testing Travel and Limit Stops Testing the Closed Position · Ensure gate opener is installed as per step 5, 6 and 7 and the sliding gate is in the middle position. · Press remote (remotes included in kit are factory paired to the motor). The sliding gate will begin to close. -
Page 17: A Intelligent Control Board
A Intelligent Control Board Programming and Wiring Any works to the 110V AC must only be performed by a licensed electrician. Ensure power is off before any modifications are made. Potentiometers Dip Switches Learn Button Hall Sensor J5 Terminal J6 Terminal J2 Terminal Fuse J4 Terminal... -
Page 18: Dip Switch Adjustment
DIP Switch Adjustment All changes to these settings must be completed by a licensed electrician Figure 17 Number Function Description OFF–enabled Soft Start/Close ON–disabled Function Default position is OFF. OFF–Normal Open ON–Normal Close Limit Switch Setting Default position is ON, this should align with limit switch and is not recommended to be modified by the users. -
Page 19: Potentiometer Adjustment
Potentiometer Adjustment All changes to these settings must be completed by a licensed electrician Figure 18 VR1: Stall Force Mode Maximum = More Force = Less sensitive Minimum = Less Force = More sensitive When Stall Force Mode is enabled (Dip switch 5 is at OFF position), the gate opener will detect obstacles and impacts to the gate. -
Page 20: Terminal Instructions
Terminal Instructions All changes to these settings below must be completed by licensed electrician. J2 Terminal (as per Figure 16): Terminal 6: External Push Button Pedestrian Switch Terminal 5: External Open/Stop/Close/Stop Loop Control Push Button (Repeated Open/Stop/Close) Terminal 4: Common Terminal for All External Control Push Button Terminal 3: External Stop Push Button Switch. -
Page 21: Wiring To The Terminal
Wiring to the Terminal Insert the wire into the Using a screwdriver to Tighten with a screwdriver number on the terminal that loosen the screw on the to secure the wire in place. you are looking to connect to. side of the terminal. Refer to Page 15. -
Page 22: Connecting Infrared Photocells
Connecting Infrared Photocells The below steps must be completed by licensed electrician. Highly recommend the use of infrared photocells as an additional safety feature. While closing, if the ray of the Infrared Photocell is blocked, the gate will stop and reverse immediately, to protect user and property security. -
Page 23: Remote Control Operation
Remote Control Operation Single button mode remote control: OPEN/CLOSE/STOP of motor are controlled by one button circularly on the remote control. The forth button on remote control is Pedestrian Mode--press the forth button while the gate is closed, the gate will open 1m wide to allow pedestrian access. Open Close Stop... -
Page 24: B Standard Control Board
B Standard Control Board Programming and Wiring Any works to the 110V AC must only be performed by a licensed electrician. Ensure power is off before any modifications are made. LEARN Button X3 Terminal Dip Switches X2 Terminal X1 Terminal Motor Direction Switch X5 Terminal... -
Page 25: Dip Switch Adjustment
DIP Switch Adjustment All changes to these settings must be completed by a licensed electrician. Figure 23 Number Function Description ON-Three button switch： X4 Terminal OPN - Open, CLS - Close, STP - Stop, COM - Common Terminal External Push Button Switch OFF-Single button switch：... -
Page 26: Terminal Instructions
Terminal Instructions All changes to these settings must be completed by a licensed electrician X5 Terminal: Limit Switch and Photocell Switch. Additional accessories sold separately 24VDC: Positive Power Supply for Accessories +24VDC. GND: Negative Power Supply for Accessories -GND. Photocell Input (N.C.). If no photocell, connect LR and GND by a jumper. -
Page 27: Wiring To The Terminal
Wiring to the Terminal Insert the wire into the number Tighten with a Using a screwdriver to on the terminal that you are screwdriver to secure loosen the screw on the looking to connect to. the wire in place. side of the terminal. Refer to pages 22. -
Page 28: Connecting Infrared Photocells
Connecting Infrared Photocells The below steps must be completed by a licensed electrician. Highly recommend the use of infrared photocells as an additional safety feature. While closing, if the ray of the Infrared Photocell is blocked, the gate will stop and reverse immediately, to protect user and property security. -
Page 29: Remote Control Operation
Loosen LR and GND on X5 Remove the jumper wire Terminal with a screwdriver. Make between LR & GND on X5 sure the power is disconnected Terminal. before doing so. Figure 25 Remote Control Operation Single button mode remote control: OPEN/CLOSE/STOP of motor are controlled by one button circularly on the remote control Open Close... -
Page 30: Maintenance
Press and hold the learn The ‘LED2’ will flash When the light is on, button (AN1) until ‘LED2’ repeatedly and then turn press the first button on flashes. off. After which the remote the remote control twice. is paired. Clearing Remote Controls To delete all paired remote controls, press and hold the button ‘AN1’, when the ‘LED2’... -
Page 31: Troubleshooting
Troubleshooting Any troubleshooting work below done to the motor must be completed by a licensed electrician and only whilst the power is off and the motor is unplugged! Problem Possible Reason Solution 1. The power supply is Connect the power supply. The gate cannot open disconnected. -
Page 32: Drawing And Measurements

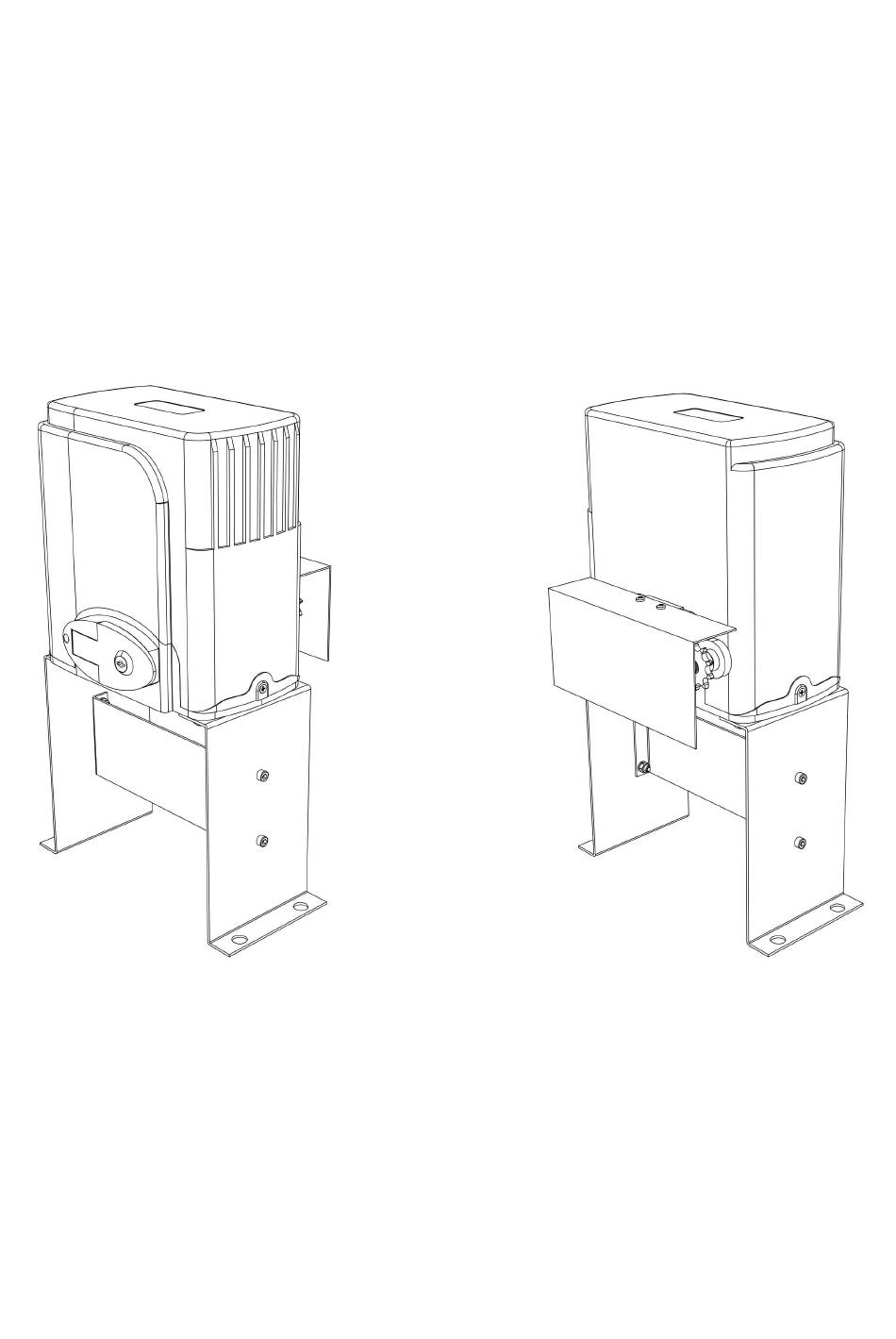

Drawing and Measurements Figure 27...
