Autoformer Taps and Electrical Terminations

Autoformer Input Labels and Terminal Strip Connectors

All Community ENTASYS 200 Series loudspeakers are factory equipped with internal autoformers of
appropriate power handling and power taps for each size of the four models. The autoformers are
intended for 70V and 100V usage (sometimes called "constant voltage" usage).
Autoformers are more efficient than traditional transformers, exhibiting both lower insertion loss,
and significantly lower distortion than even the highest grade 70V / 100V transformers. This is just
one of the many engineering innovations that have gone into the development of the ENTASYS 200

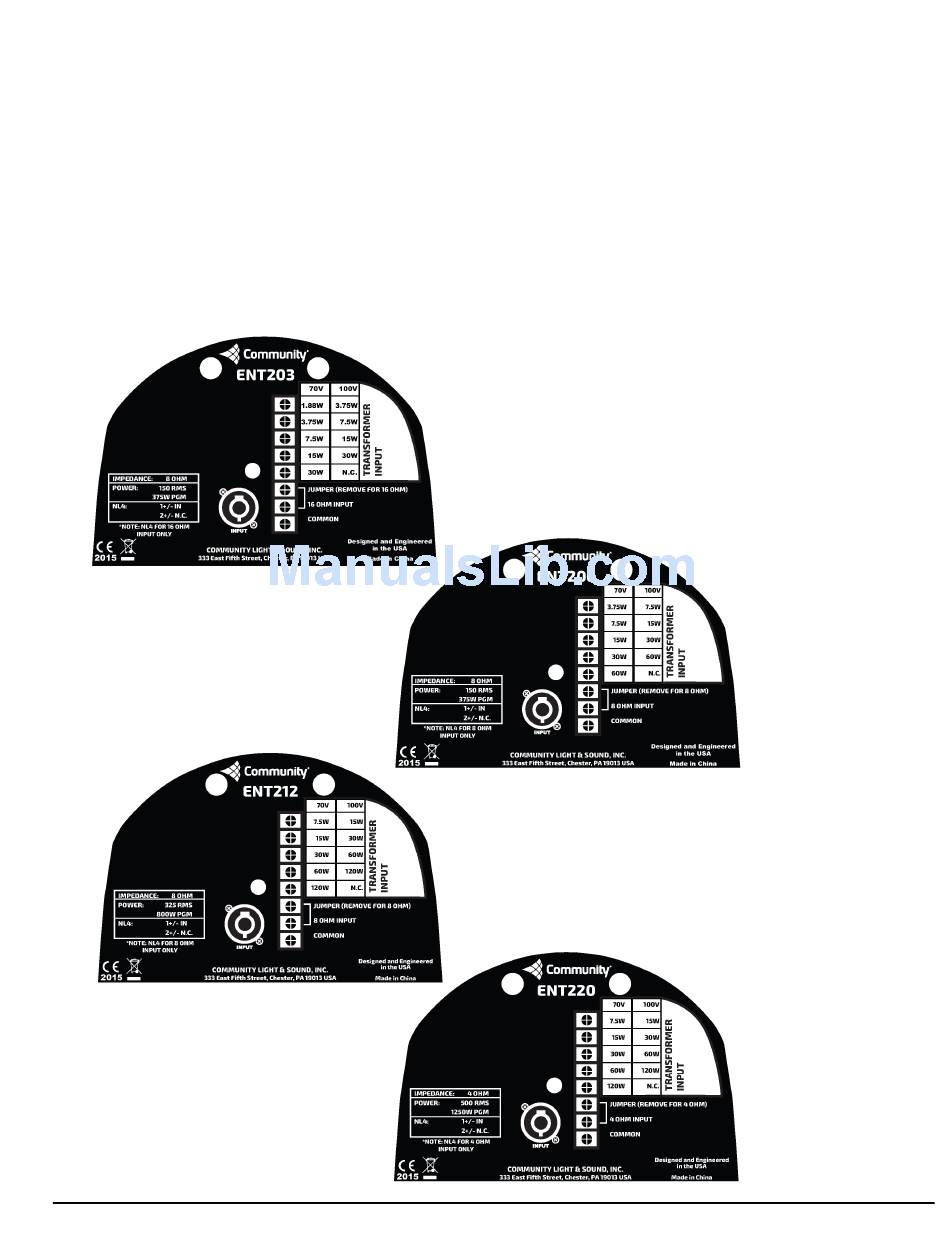

Product Family. The illustrations below show the 70V / 100V and low impedance terminal strips for
each of the four models.
ENT203
ENT206
ENT212
ENT220
ENTASYS 200 Installation/Operation Manual — Page 21
