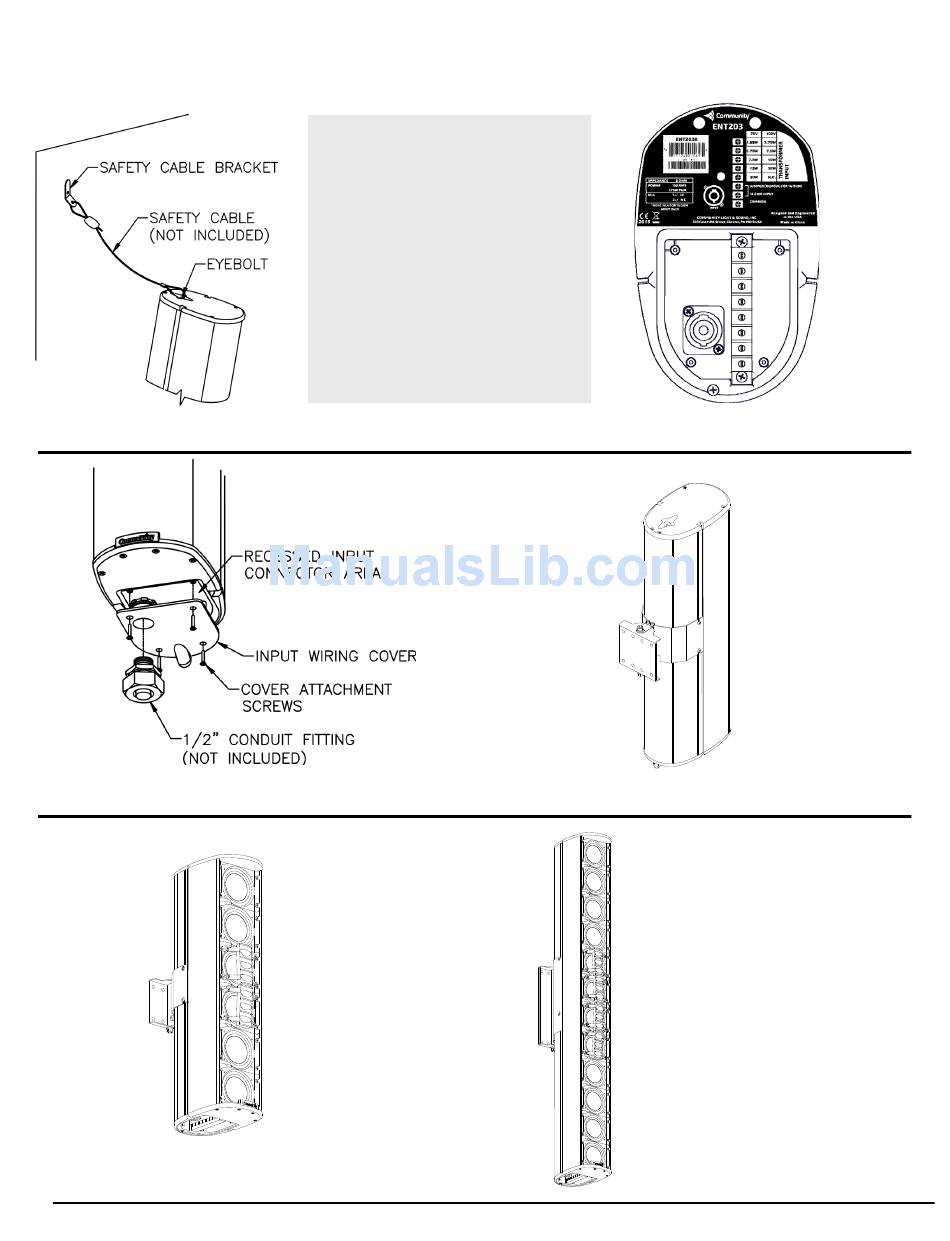

Product Drawings (Typical)
TOP showing safety cable (typical)
BOTTOM showing Input Wiring Cover Plate (typical)
15W
ENT206 shown without grille
When mounting an
loudspeaker, always attach the safety
point at the top of the enclosure to the
safety cable support bracket (included).
Note that the safety cable is NOT
Included, as the user must determine the
appropriate length and location for the
safety cable based on each specific
installation. The safety cable must be of
sufficient strength
loudspeaker in the event that the primary
mounting bracket should fail. After final
positioning of the loudspeaker, make sure
to remove as much slack as possible
from the safety cable to minimize shock
load in the event of bracket failure.
ENT203
IMPEDANCE: 16 OHM
POWER: 75W RMS
190W PGM
NL4: 1+/- IN
2+/- N.C.
*NOTE: NL4 FOR 16 OHM
INPUT ONLY
JUMPER (REMOVE FOR 16
16 OHM INPUT
COMMON
70V
1.88W
3.75W
7.5W
30W
100V
3.75W
7.5W
15W
30W
N.C.
2011
ENTASYS 200 Installation/Operation Manual — Page 11
ENTASYS 200
to suspend the
BOTTOM showing input connectors (typical)
ENT206 REAR showing mounting bracket
OHM)
ENT212 shown without
grille (Not To Scale)
