Installation

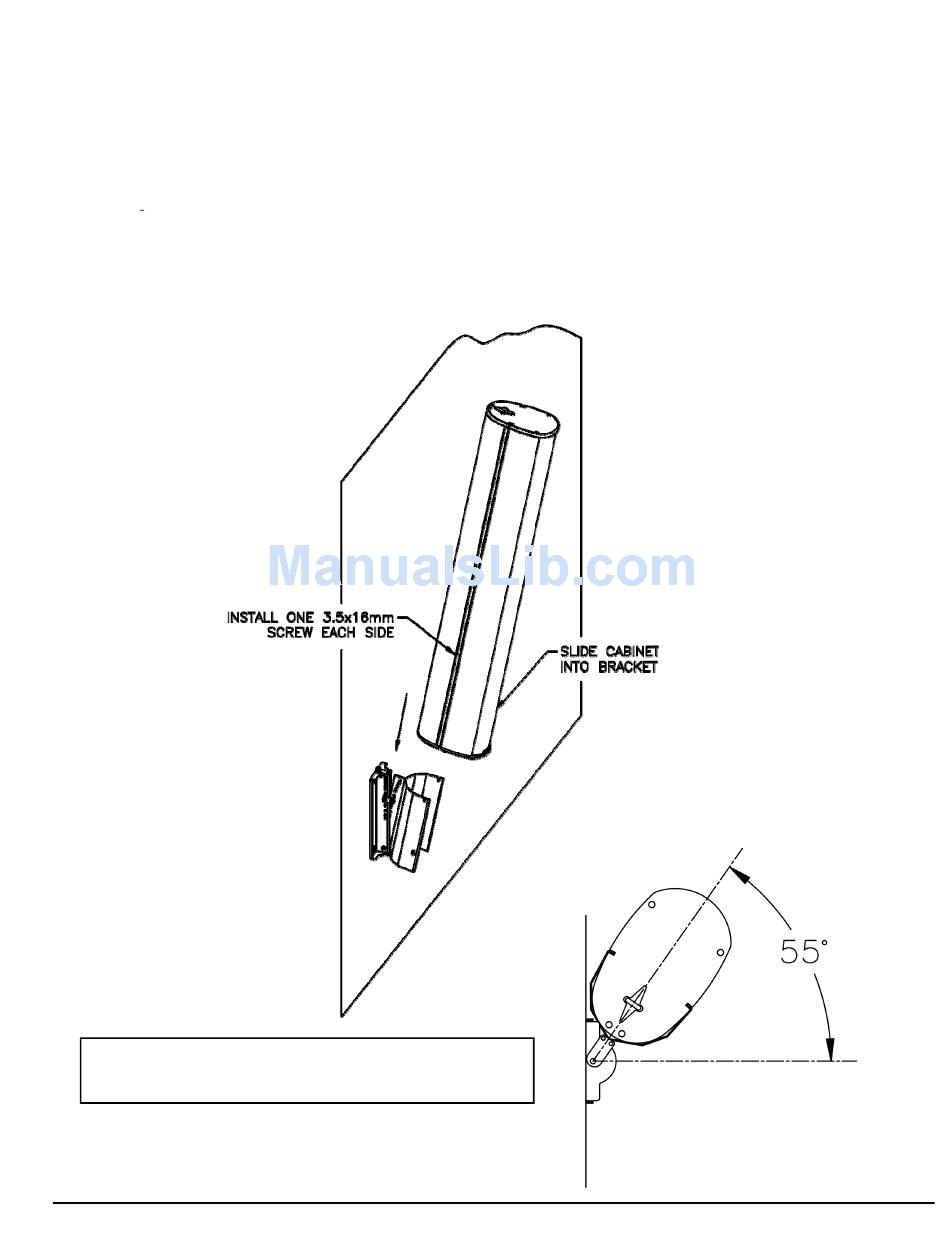

4. Install (2) 3.5 x 16mm Phillips truss-head deep thread screws, one on each side, into pilot hole in
slots of enclosure.
Note: These will be the screws at the top of the bracket. Choose holes closest to the top for
cabinet stability, thereby allowing the cabinet to tilt without hitting the wall. Slide cabinet into
top of bracket until screws rest in bracket slots.
Note: Pilot holes are factory-suggested mounting positions but the bracket may be mounted at
any position along the length of the column, as required.
NOTE: For 0° vertical installation there is 55° left and
right pan on all ENTASYS 200 models.
ENTASYS 200 Installation/Operation Manual — Page 17
